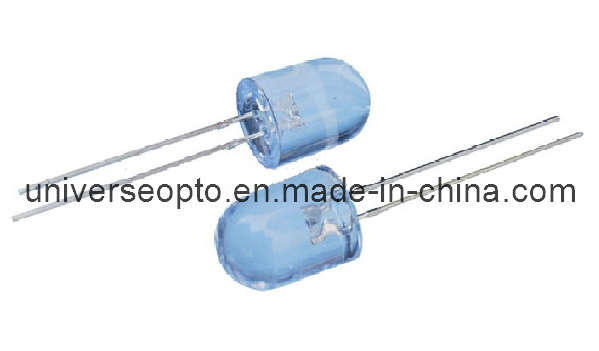

LED Light (UVO-102BB815C)
Price: |
Negotiable |
Min Order: |
1 |
High brightness
Wide viewing angle
Good stability
Competitive price
Absolute Maximum Ratings at Ta = 25 ° C |
Items |
Symbol |
Absolute Maximum Rating |
Unit |
Forward Current |
IF |
50 |
mA |
Peak Forward Current |
IFP |
200 |
mA |
Reverse Voltage |
VR |
5 |
V |
Power Dissipation |
PD |
130 |
mW |
Operation Temperature |
Topr |
-40 ~ +95 |
° C |
Storage Temperature |
Tstg |
-40 ~ +100 |
° C |
Lead Soldering Temperature |
Tsol |
Max. 260° C for 5 sec Max.
(3mm from the base of the epoxy bulb) |
*pulse width < =0.1msec duty < =1/10 |
Typical Electrical & Optical Characteristics ( Ta = 25 ° C ) |
Items |
Symbol |
Condition |
Min. |
Typ. |
Max. |
Unit |
Forward Voltage |
VF |
IF = 20mA |
2.8 |
3.2 |
3.5 |
V |
Reverse Current |
IR |
VR = 5V |
--- |
--- |
10 |
mA |
Dominant Wavelength |
lD1 /lD2 |
IF = 20mA |
--- |
465 |
--- |
nm |
Luminous Intensity |
IV |
IF = 20mA |
--- |
4000 |
--- |
mcd |
50% Power Angle |
2q½ H-H |
IF = 20mA |
--- |
30 |
--- |
deg |
2q½ V-V |
IF = 20mA |
--- |
--- |
--- |
deg |
Important Notes:
1) All ranks will be included per delivery, rank ratio will be determined by UVO.
2) Tolerance of measurement of luminous intensity is ± 15%.
3) Tolerance of measurement of dominant wavelength is ± 1nm.
4) Tolerance of measurement of Vf is ± 0.05 V.
5) Packaging methods are available for selection. |
Prod Model: |
UVO-102BB815C |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Universe Optoelectronics Co., Ltd. is a high-tech private company who combines research, development, production and Sales into one kit. It is one of the R & D and manufacturing base of the Energy and Power Institute of Huazhong University of Science and Technology, it is Also cooperate with China's State Key Laboratory of Optoelectronic.
Our company mainly engaged in the manufacturing of LED 7segment, connectors and other LED lighting products. The products are widely used in electrical appliances, computer, and lighting decorative and other fields. LED lighting products are with low energy, environmental protection and other features, which is in compliance with the global advocacy of energy saving and environment protection.
Our company covers an area of 7000 square meters, employs more than 500 people, including 120 professional R & D and technical staff. The workshop selects the advanced manufacturing system, strict quality control system and complete product inspection flow. The product has passed not only the related the ISO9001 authentication, but also the product authentication of RoHS, CE...
Company uphold the idea of managing continually, wholeheartedly and faithfully sercvice for new old customers with high technology and high quality.
