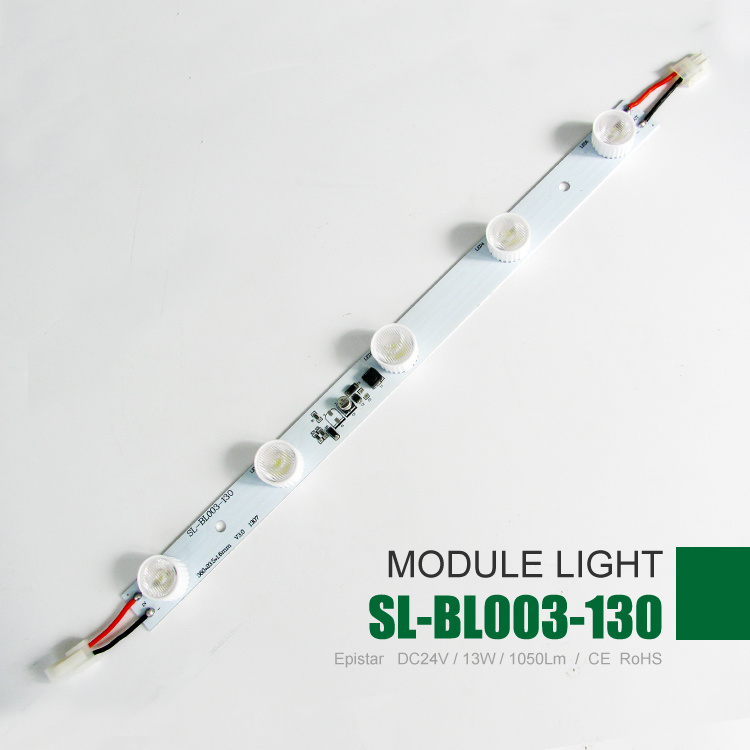

LED light strip light box for advertising
Applications:
1. Hotel lighting
2. Hospital lighting
3. Factory lighting
4. Office lighting
5. Commercial lighting
6. Conference room lighting
7. Meeting room lighting
8. School, college, university lighting
It's light is uniform and easy installed, extensive used in airport, bus stop and station, No need to place LGP in light box when using it, it can save your cost, lights the weight, light source in the shape of "V" and without dark area.
LED Features
Description
Parameter
Size 360mm*23mm*16mm
Wattage 10W
Voltage DC24 V
LED current 420mA
Wavelengthλ D(nm)Or Tc(k) 3000-7000K
LED Lumen 140-150lm / w
4. Technical Request
Parameter range
Working environment ° C -20~~+50
Storage condition ° C -30~~+70
Rated voltage V DC24± 0.5V
Rated current mA 420± 10%
Output power W 10± 10%
Luminous flux LM 700± 10%
5. Noted
Please read the specification first to make sure the using condition is fit.
Please shut off the switch before connect the product, then turn on. OUTPUT: DC24V
Noted
Please read the specification first to make sure the using condition is fit.
Please shut off the switch before connect the product, then turn on. OUTPUT: DC24V
. Indoor use only.
Package:
Size: 505*40*30mm
2 PCS/ inner box (200g)
50 inner boxes/ctn (5.5kg)
Any more questions, pls feel free to contact Kelly for more information.
|
Item |
Parameter |
|
Specification |
360mm*23mm*16mm |
|
Lamp bead (center) spacing |
78mm |
|
Wattage |
10W |
|
Voltage |
DC24 V |
|
LED current |
420mA |
|
Wavelengthλd (nm)Or Tc (k) |
5000-8000k |
Technical Request
|
NO. |
Description |
Units |
Parameter range |
|
1 |
working environment |
degree |
-20~~+50 |
|
2 |
storage condition |
degree |
-30~~+70 |
|
3 |
ratedvoltage |
V |
DC24±0.5V |
|
4 |
ratedcurrent |
mA |
420±10% |
|
5 |
output power |
W |
10±10% |
|
6 |
luminous flux |
LM |
700±10% |
