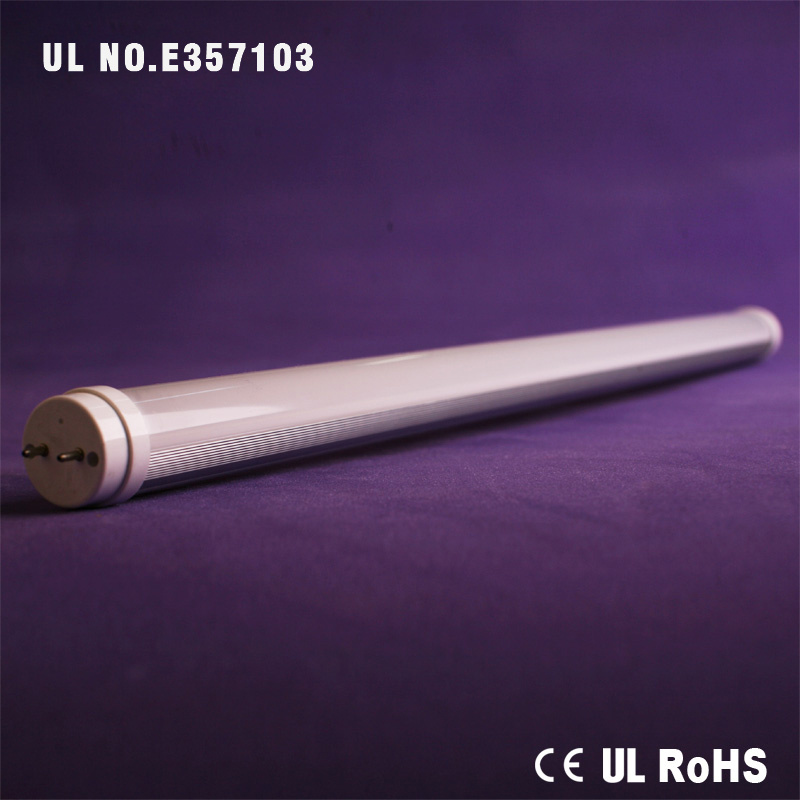

Heavy duty LED T8 tube lamp with UL CE RoHS(2ft-8ft)
1. Extremely environment temperature protection
2. Active auto-cooling
3. Overload power protection
4. Intelligent constant currency management
5. Inrush current protection
6. Controllable Lumen lose
7. CE UL RoHS IEC Verified
8. Maintenance-free
Main data
1 Leenth: 600mm-2400mm (2ft-8ft)
2 Shape of tube: T5 T8 T10 T12
3 Rated power 7W-39W
4 Power factor >0.95
5 5years product warranty
6 Lumen average >95lm/Watts
7 CRI >82
8 Color temperature 2700K-6500K
9 lumen lose <15%/3years
Model No. |
Total
Luminous (lm) |
Length |
Power |
Input |
Frequency |
Operation
Temperature |
LED board
material |
efficiency |
colour temperature |
Life Span |
Lumen Lose |
|
ECP-112W-T5-7W |
728 |
2ft-8ft |
7W |
AC110V-250V |
50HZ-60HZ |
-40 - 70centigrade |
Aluminium |
> 90% |
2700K-8000K |
> 50, 000Hours |
< 15%/3years |
|
ECP-168W-T5-11W |
1092 |
2ft-8ft |
11W |
AC110V-250V |
50HZ-60HZ |
-40 - 70centigrade |
Aluminium |
> 90% |
2700K-8000K |
> 50, 000Hours |
< 15%/3years |
|
ECP-224W-T5-14W |
1456 |
2ft-8ft |
14W |
AC110V-250V |
50HZ-60HZ |
-40 - 70centigrade |
Aluminium |
> 90% |
2700K-8000K |
> 50, 000Hours |
< 15%/3years |
|
ECP-280W-T5-18W |
1820 |
2ft-8ft |
18W |
AC110V-250V |
50HZ-60HZ |
-40 - 70centigrade |
Aluminium |
> 90% |
2700K-8000K |
> 50, 000Hours |
|
|
ESbright (Asia) cmpany is a registered trademark and invested by Sunrain industry. It is not just a manufacturer of LED lighting products but first and foremost a true innovation center in the LED lighting industry. Our primary focus is how to reduce energy-consumption and maintenance dollars. ESbright has more than 6 years of global application of commercial LED lighting system for retail industry.
ESbright has been widely used in gas stations, hospitals, retail stores, schools and public buildings. Our global business partners include 7-ELEVEN, Wal-Mart, FamilyMart, Shell and so on
For ESbright's unique technology -CTM (current-thermo management) that insure our products work under condition of constant temperature and constant current. So 3 years product warranty and including 1year labour warranty is our serious promise.
