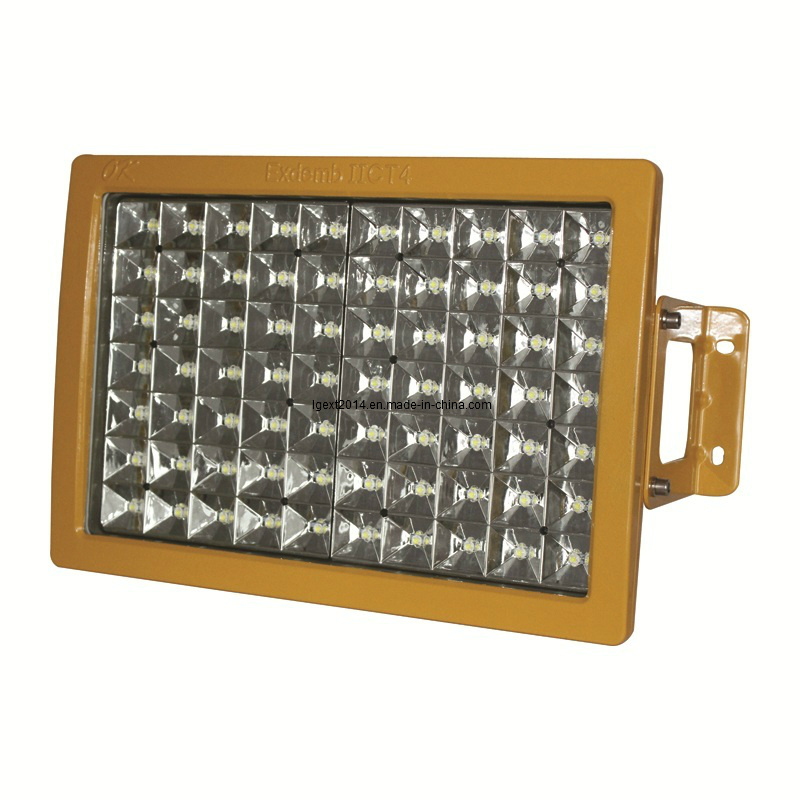

LED Industrial Light, LED High Bay Light (Explosion Proof Coal Mining Lamp )
Applications:
Suitable for explosive gas atmospheres 1 and 2 zone, applicable for class A, B explosive atmosphere, suitable for temp. Group T1 T4 environment, applicable for explosive hazardous environment like petroleum extraction refining, storage, chemical industry, pharmaceutical and military industry, suitable for plant or road lighting, three spec. Optional: Floodlight, spot light and street light.
Performances
1: The produces are in strict accordance with the GB3863-2010 explosive environment standards and other relevant standards, can work safely and reliable in the inflammable and explosive dangerous places.
2: The light source module: Using high brightness LED light source with high efficiency. The constant current driving power, saving electricity more 60% than gas discharge lamp, LED component is completely sealed, waterproof and dustproof. Without internal cleaning and maintenance, the circuit board low thermal resistance. The module circuit specially designed, each unit fault does not affect normal work and rest parts.
3: The power supply module: High efficiency constant driving power supply with the intelligent power adjustment device with luminous flux compensation function, Reducing the light decay. Ensure the light efficiency LED light source. With over-voltage protection, over-current protection and surge current protection function.
4: The radiating module: Explosion proof lamp shell using aluminum alloy pressure casting forming, surface of high pressure electrostatic pensu after blast. Effectively improve the radiating performance of the shell, circuit board close to the aluminum alloy shell. The point source instantaneous conversion of surface heat source, heat dissipation area multiplied. For rapid heat dispersion, improve the heat dissipation efficiency, the surface of the shell with airflow dispersion area is greatly improved and fully guarantee the LED requirements of the heat, longer service life.
5: The light distribution module: For each type of fixture specially designed optical element. Give full pay to the use performance lamp
6: No ultraviolet radiation, as a long time to provide high quality lighting and health security work inside user.
7: Lamp can be arranged on the emergency power supply device, when the failure of power supply network after the cessation of normal lighting, lighting to the state of emergency lighting in the instant automatic switching.
8: The light source and a power supply adopts an integrated structure, The power chamber is provided with a hinge, lighting installation more convenient.
9: This series of lamps are maintenance-free products, energy saving and environmental protection
10: Wall mounted rotating angle adjustable, cabling, ceiling type, embedded installation by cable or steel pipe wiring.
Quality assurance:
This product in strict accordance with the ISO9001: 2008 quality management system standards for quality control, ensure product quality is higher than national standard. Fully meet the design requirements, products 6 years warranty (light source 1 year) since the purchase within 6 years from the date of buy, any fault occurs under normal operation by the company responsible for the free maintenance.
|
Explosion proof mark |
Exdemb II BT6Gb |
|
Rated voltage |
AC90-270V |
|
Source |
LED |
|
Luminous efficiency |
>90lm/W |
|
Rated power |
50W, 70W, 100W, 120W, 140W |
|
Power factor |
>0.9 |
|
Correlated color temp. |
5500K |
|
Color rendering index |
Ra >70 |
|
Protection grade |
IP66 |
|
Distance ratio |
WF1 |
|
Introducing the interface spec. |
G3/4" |
|
For cable diameter |
8-14mm |
