Features:
1. Die -casting aluminum alloy body, modularization design.
2. Unique optican design and heat dissipation integration design to make sure the efficiency and reliability of lamp.
3. Use optical glass lens.
4. The LED modules can be adjusted lengthways at multi-angle, it can enhance the utilization ratio of light and reach the best luminous effect.
5. Optional installation of automatic control systems, self-adjusting power and improve efficiency.
6. Light module waterproof up to IP66, power up to IP67.
7. It's easy to install the lights, suitable for 60mm pipe diameter cross arm installation.
8. LED light source: Osram chip.
Specifications:

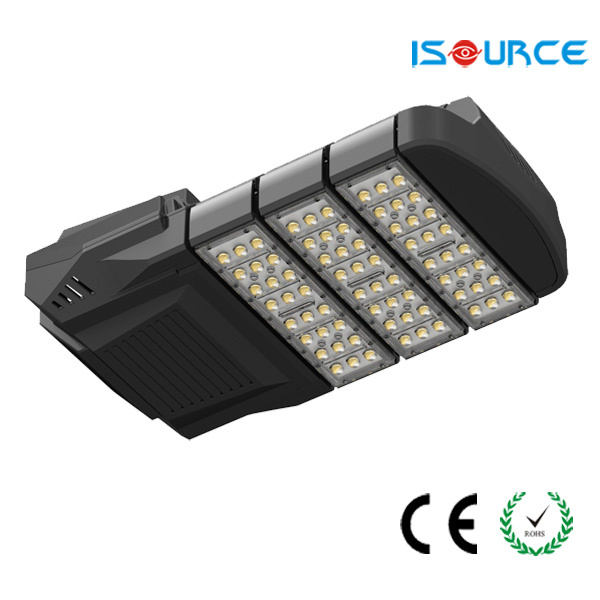

1. Product name: LED street lamp
2. Model: DS-2301
3. Housing material: Aluminum +PC cover
4. Total power: 82W
5. Power of LED light source: 72W
6. Certification of driver: CE UL CCC
7. Input voltage: AC100V~240V 50/60Hz
8. Power factor: 0.95
9. LED chip: Osram chip 3030
10. CRI: >75
11. CCT: 6000K
12. Beam Angle: 150degree
13. Luminous Flux: 5220~6520Lm
14. Temperature of LED: <85° C
15. Temperature of housing material: <60° C
16. Light efficiency: >85Lm/W
17. Operation temperature: -20° C~40° C
18. Size of white box: 655*355*265mm
Applications:
1. Street Lighting
2. Sporting area Lighting
3. Square, parks, roads, factories, airports, subway, courtyard
