Specification

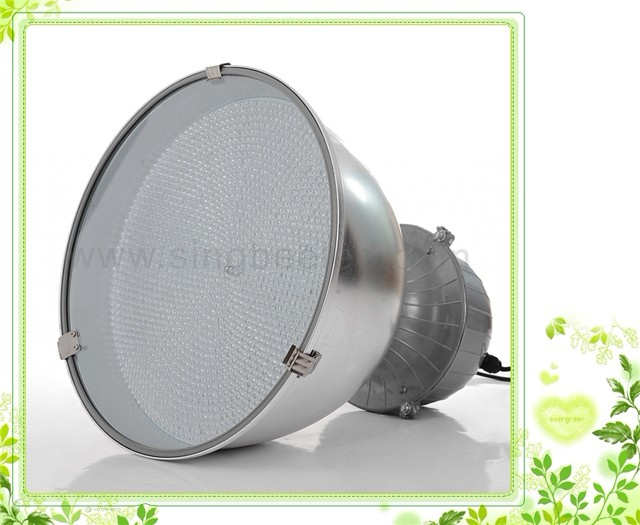

Product Type: LED High Bay Light
Item No.: SP-7006
Light Source: LED
Lamp Frame Color: Gray
Light Colour: Cool White
Main Lamp Frame Material: Aluminum Alloy
Lamp Size: 475*H590(mm)
Operating Circumstance:
Input Voltage: 90~260V/AC
Frequency Range: 47-63Hz
Working Environment Temperature: -20degree~+35degree
Usage Time: Less than 12 Hours per day
Electric Characteristic:
Light system Efficiency: More than 80LM/W
Total Current of Whole Lamp: 545mA @220V/AC
Power: 120 W± 10% *
Lamp's Efficiency: More than 90%
Luminous Flux: 9600 Lm ± 10% *
Color Rendering Index: Ra 80
Junction Temperature: Lower than 75degree
LED Beam Angle: 130 Degrees
Electric Safety Standard: CLASS II
Lamp Lifetime: 30000 Hours
IP Rating: IP65
Power Supply Unit Characteristic:
Total Harmonic Distortion: More than 5%
Power Factor: More than 0.90
Starting Inrush Current (MAX): 42A/0.1S*
Power Supply Unit Size: L139*W88*H39 (mm)
|
Item NO. |
Input (V/AC) |
Power(W) |
Luminous Flux (lm) |
Color temperature (K) |
Color Rendering Index (Ra) |
Size(cm) |
|
SP-7006 |
90-260 |
50 |
4500 |
5000-6000 |
80 |
Ø 475*590 |
|
SP-7006 |
90-260 |
80 |
7200 |
5000-6000 |
80 |
Ø 475*590 |
|
SP-7006 |
90-260 |
100 |
9000 |
5000-6000 |
80 |
Ø 475*590 |
|
SP-7006 |
90-260 |
120 |
10800 |
5000-6000 |
80 |
Ø 475*590 |
|
|
LED Beam Angle |
Color Temperature |
Input Voltage |
|
Standard Parts |
130° |
5000-6000K |
90-260V/AC |
|
Optional Parts |
80° , 40° 170° |
3000-4000K |
12-24V/DC |
|
Singbee LED High bay Light |
to replace traditional metal halide lamp |
Recommended Mounted Height |
lux Diagram |
SP-7006 100W
with 130° LED |
250w/400w/450w |
5~8 (m) |
Following 1st Diagram |
SP-7006 100W
with 80° LED |
250w/400w/450w |
8~10 (m) |
Following 2nd Diagram |
SP-7006 100W
with 40° LED |
250w/400w/450w |
10~14 (m) |
Following 3rd Diagram |
