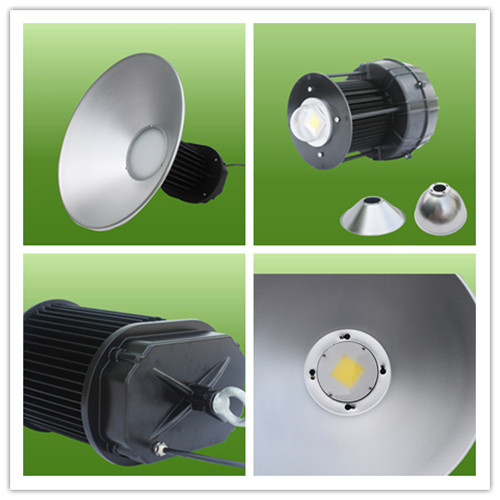

Name: LED High Bay Light with ce rohs 30w ip40
Advantage:
1)Good heat dissipation: Special phase change dissipation technolgy, long working time:Ta=26, Tj<65ºC, Tc<60ºC.Tj-Tc<15ºC;
2)Light weight: Compared with other high bay light in same power, the weight is 40% less.
3)High efficiency: The efficiency of circuit switching is up to 91%. The light utilization rate is up to 85%.
4)High power factor: Up to 0.95.
5)High luminous efficiency: More than 95LM/W.
6)Long life time: LED ≥ 100,000 hours. Power supply ≥ 30,000 hours.
Product Description
Basic Features:
1)Certification: CE, ROHS, UL, TUV and so on.
2)Aluminium Alloy die casting, high efficiency of heat emission and long life time.
3)High pure imported aluminum from Germany as the reflector.
4)New high efficiency constant current driver.
5)No delay start. No noise. No electrical wave, confirming to CE.
6)Environment friendly and no air pollution.
Details: LED High bay light
| Main specifications(T=25ºC) |
| Model | FEI101 | FEI102 | FEI103 | FEI104 |
| Input Voltage | AC85-264V 47-63Hz | AC85-264V 47-63Hz | AC85-264V 47-63Hz | AC85-264V 47-63Hz |
| LED | 1pc | 1pc | 1pc | 1pc |
| Power | 30w | 50w | 80w | 100w |
| LED Efficiency | 80-90Lm/w | 80-90Lm/w | 80-90Lm/w | 80-90Lm/w |
Initial Flux | >2700Lm(Cool White) | >4500Lm(Cool White) | >7200Lm(Cool White) | >9000Lm(Cool White) |
| >2610Lm(Natural White) | >4350Lm(Natural White) | >6960Lm(Natural White) | >8700Lm(Natural White) |
| >2490Lm(Warm White) | >4150Lm(Warm White) | >6640Lm(Warm White) | >8300Lm(Warm White) |
| Power Factor | >0.95 | >0.95 | >0.95 | >0.95 |
| Color | Warm white/Natural white/Cool white/Red/Green/Blue/Yellow |
| Color Temperature | 2700-3300k(Warm white) |
| 4000-5000K(Natural white) |
| 5300-7000K(Cool white) |
| Center Illuminance | 1.5M: 1091 Lux | 1.5M: 2757 Lux | 1.5M: 7380 Lux | 1.5M: 10862Lux |
| 3.0M: 273 Lux | 3.0M: 690 Lux | 3.0M: 1845 Lux | 3.0M: 2715 Lux |
| 6.0M: 65 Lux | 6.0M: 167 Lux | 6.0M: 454 Lux | 6.0M: 612 Lux |
| Beam Angle | 80 | 80 | 80 | 80 |
| Life Span | >50,000 Hours | >50,000 Hours | >50,000 Hours | >50,000 Hours |
| Operating Temperature | -25ºC to +55ºC | -25ºC to +55ºC | -25ºC to +55ºC | -25ºC to +55ºC |
| Storage Temperature | -40ºC to +65ºC | -40ºC to +65ºC | -40ºC to +65ºC | -40ºC to +65ºC |
| Weight | 3.1kg | 3.6kg | 4.3kg | 4.7kg |
| Size | Φ471x453mm | Φ471x483mm | Φ471x538mm | Φ471x563mm |
| IP Rating | IP40 | IP40 | IP40 | IP40 |
| Applications | Factory, indoor standium, gas station, warehouse, city lighting projects. |
Packaging & Shipping
1. Pack:
Qty per Unit Packing: 1 pcs in a single carton.
Size: Different product has different data.
2. Sample shipping way:
DHL, EMS, FEDEX, UPS and so on. It is changeable.
3. Cargo shipping way:
By sea or by air. Depending on you.
Our Services
1. Before sales:
Confirm the details, reply on time, offer detailed information, meeting the customer's need and so on.
2. After sales:
Follow the production and delivery, feedback and solve your question fast, track regularly, warranty 2-3 year and so on.
Company Information
SHENZHEN FIER lighting Co., Ltd, located in Shenzhen, China, is one of the top ten manufacturers of LED products in southern China. With CE, RoHS, TUV, FCC, PSE, UL certifications, our products contain LED flood light, LED panel light, LEDhigh bay light, LED tube light and so on. Capacity is 5,000pcs per day.
FAQ
1. Q: Where is your type of led chip?
A: Cree, Bridgelux, Epistar and so on.
2. Q: What is the type of power supple driver?
A: Meanwell and so on.
2. Q: How long is the production time?
A: Sample: About 5-7 days. Order: 10-15days.
Delivery: 10-40 days after received the deposit.
4. Q: What is the Payment?
A: Payment: T/T, West Union, L/C.
Payment terms: 30% deposit in advance,the balance T/T before the shipment.
