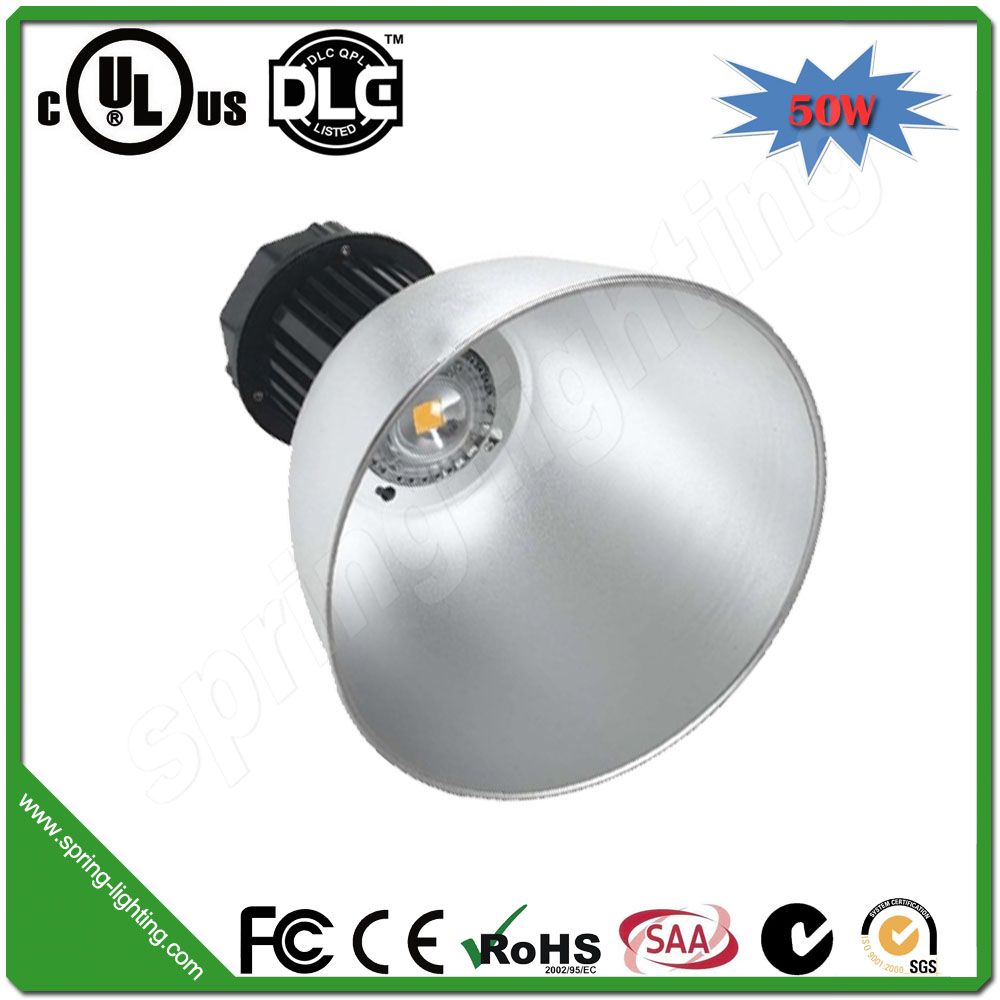

30/50/80/100/120/150/200W LED high bay light
USA Bridgelux LED chips
CE & RoHS APPROVED
Fast delivery
Warranty: 3 years
OEM ODM are welcome
Quick details:
Item No.: SPL-GK-30W
Power: 30W
LED source: Integrated LED
Certificate: CE &RoHS
CRI: 75
Life-span: 50, 000H
Color temperature: 4000K-6500K
Input voltage: AC100-260V
Why replace?
Because our LED lights:
1. Adopt 30W-200W high efficiency single integrated LED as light source. This light source designed by single module which use many integrated chips, it selects high luminance and import semiconductor chip, its thermal conductivity is high, light decay is small, the light color is pure, there is no effect of double image;
2. Unique heat dissipation and lamp case integration design, it could effectively diffuse thermal conduction, thus reduces the inner temperature of lamp and safeguard 50000 hour life of LED source. According to lighten 11-12 hours computations every day, LED High Bay Light need not replace in 12 years, it has gone far beyond the conventional 24000 hours sodium lamp and 15000 hours metal halide lamp, its replacement frequency must be lower than the ordinary lamps, then reduced the maintenance cost.
3. The lamp surface has been made the anodic oxidation and antiseptic treatment, structure is tight and graceful, have IP20 standard. It also has good performance in anticorrosion and dustproof;
4. Energy-saving effect is obvious, we use the high efficiency LED light source to equip with high efficiency power supply,
Compare with the sodium lamp may save above 60% energy.
5 Green environmental protection, have no pollution, without lead, mercury and any other pollution elements, there is no any
Pollution to environment.
6. High color rendering property, made the object's color is more realistic and clearer. There is several color temperature
Could be selected, it can satisfy all kinds of demand in different environment, eliminated the traditional lamps' single
Color temperature, the vision will be more comfortable, and it also enhance the worker' working efficiency.
7. Adopt constant current constant voltage to control, it is suitable for wide voltage (AC85V-265V), this protect the power
System, avoid noise pollution because of ballast aroused, it also avoided stimulation and fatigue which is brought in the
Work.
8. Installment is simple, disassembly is convenient and applicable scope is broad. Designed by the maximized modular standard component, it guaranteed that each key component could be replaced. Simultaneously, it is convenient and timely in installation and maintenance.
Attentions:
(1) A licensed electrician must undertake this installation. Please check the lamp carefully before installation.
(2) Please follow up the installation procedures, make sure the screws been wrested very tightly, the wires been connected properly, as attached installation instruction.
(3) The waterproof joint is only a choice for easy installation and maintenance, not standard come with lamps.
Why us?
Our competitive advantages:
1. Professional solution for customer's projects.
2. Various installation styles
3. Special discount wait for long-term reliable customer.
4. Quick response to customer's enquiry within 24 hours.
5. All LED high bay lights applied CE & RoHS
6. We are real manufacture factory: The cost is real and low. And the delivery is the fastest. Aftersale service is reliable.
7. OEM ODM are welcome.
We are top 10 manufacturer in Shenzhen.
Provide all LED lights as you see on our website.
Supply logo printing on light body if needed.
Warmly welcome you visit our factory and any questions, we will try anything we could to help you get more profit.sale service is reliable.
| SPL – GK-30W LED indusrial high bay light |
| Input Voltage | AC100V-260V |
| heat sink | 60mm |
| Freqency Range | 50Hz--60Hz |
| Tatal Harmonic Distortion | ≤ 9% |
| power Factor | > 0.90 |
| Power Efficiency | > 85% |
| LED Working Voltage | DC29-34V |
| led quantity | 1Pc |
| Led consumption | 30 W |
| System Consumption | 36 W |
| LED luminous efficiency | 95-105 lm/W |
| lamp' s Efficiency | 0.933 |
| LED luminous efficiency | 2814.3lm |
| Average illuminance | (height) 3M | 58.87 lux |
| (height) 4M | 33.11lux |
| (height) 5M | 21.19 lux |
| Illuminance Area | (height) 3M | diameter673.92 cm circle facula |
| (height) 4M | diameter898.56 cm circle facula |
| (height)5M | diameter1123.20cm circle facula |
| Illuminance Uniformity | > 0.5 |
| Color Temperature | WW | 3000k-3300k |
| PW | 4000k--4500k |
| Color Rendering Index | CW | 5500k--6000k |
| WW | Ra> 70 |
| PW/CW | Ra> 75 |
| Light Distribution | circle facula |
| LED Junction Temperature | ≤ 85centigrade |
| Working Temperature | “ -20--+55centigrade” |
| storage Temperature | “ -25--+65centigrade” 25centigrade is best |
| IP Grade | IP20 |
| Working life-span | 50, 000H |
| Color of lamp shell | Black and silver |
| certificate | CE, ROHS, |
| lamp weight: N. W. | 3.01KG |
| lamp packing dimension | 26cm*26cm*29cm |
Spring-lighting Electronics Co., Ltd. is a professional manufacturer in R&D, manufacturing, marketing and service of LED lightings. Our main products include LED flood lights, LED streetlights, LED bay lights, LED panel lights, LED tube light, Corn LED bulb etc. All of our LED lights have certified by CE & RoHS, UL, CSA, DLC and etc. We research and process LED aluminum housing and other LED lighting accessories by ourselves as well. From raw material to finished product, every single process occurs within the walls of our own factory. Quality is never compromised.
Our company has gathered a bunch of qualified staff specializing in LED researching and managing, introduced advanced equipment and testing device, which make our products being perfect day by day and reach advanced standard in LED industry. We have passed ISO9001: 2000 quality control system, and the products obtained CE, RoHS, FCC certification. Our products have aging test at least for a continuous 48-72 hours before being released to delivery. Meanwhile, we have our own professional sales team. On these, we have obtained good reputation and serve customer from cover Asia, America, Europe, etc.
We strictly pursue our policy of systematized management, sustained improvement, prompt delivery, customers satisfaction, sincerely offering good service to all of our customers.
Welcome to contact with at any time!
We supply one-stop service for you from mould-design, lamp housing-diecast, power supply-design & production, finished product-assemble & after sale.
