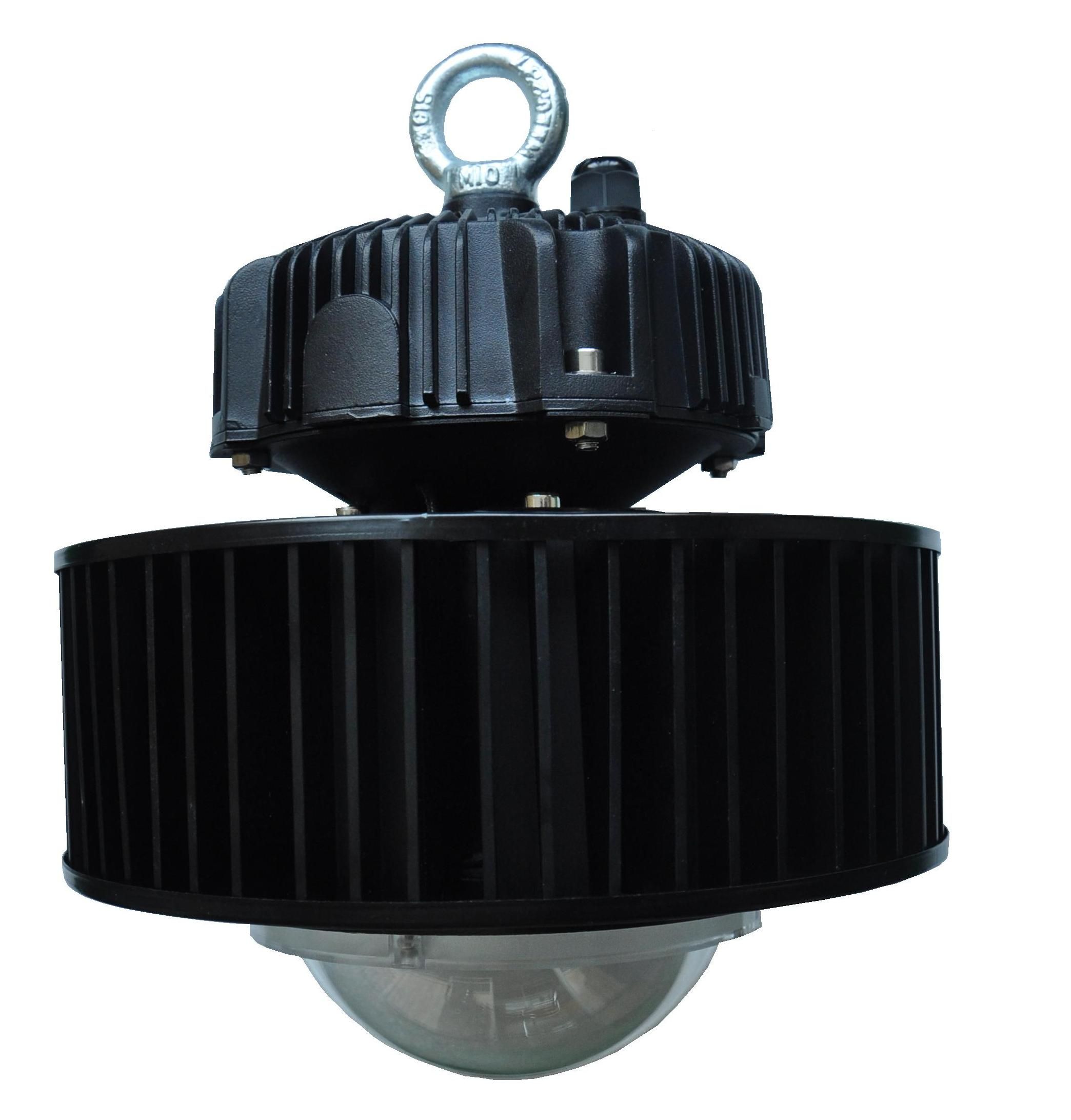

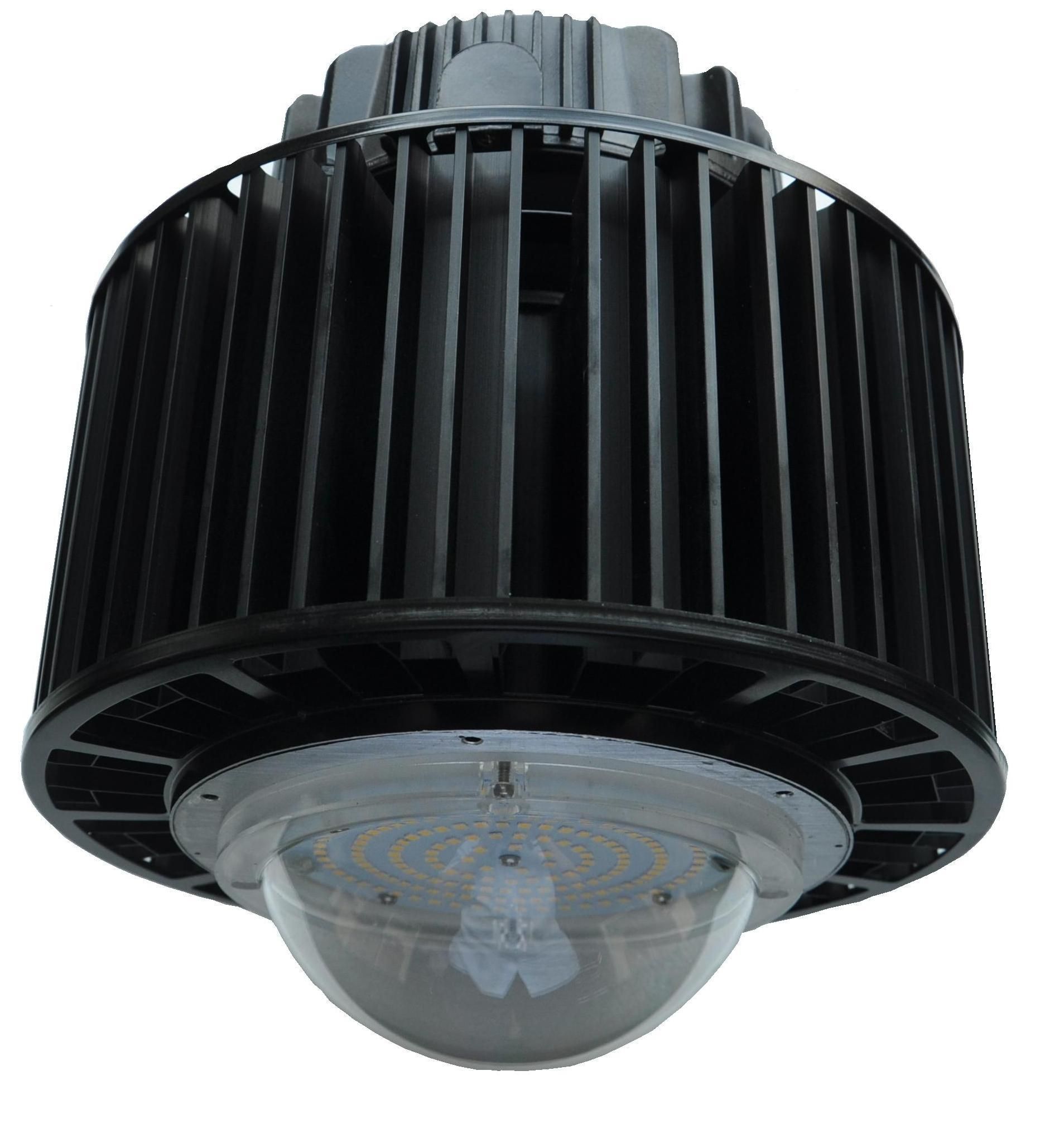

LED High Bay Light 150W

Features

1) High efficiency & energy saving. Under the condition of the same llumination,, it saves more than 67% energy compared with the traditional lamp.
 2) Long life span, using semiconductor chip as the light resource, the life can be over 50,000hrs.

 3)  No UV & IR . It won't distribute ray radiation.

 4)  Eco-friendly, No Hg & Xe ,or other harmful element. Recyclable, also it won't generate EMI.

 5)High performance external constant current drivers,no stroboscopic, good for eyesight protection;

 6) Patent integrated light sources, high quality Bridgelux chip, high Light effects, high color rendering index.

  7) Advanced thermal design, Integration with Moule-shaped
Integration with Moule-shaped, low thermal resistance, high heat dissipation
    efficiency.

  8) Easy for installation.

  9) Protection level reaches IP65.

 led high bay light   application as follows:
1.Workshop, factory, warehouse, highway toll station
2.Gas station, supermarket, exhibition, gym.
3.Mall, conference room, market.

Features
1) High efficiency & energy saving. Under the condition of the same llumination,, it saves more than 67% energy compared with the traditional lamp.
 2) Long life span, using semiconductor chip as the light resource, the life can be over 50,000hrs.

 3)  No UV & IR . It won't distribute ray radiation.

 4)  Eco-friendly, No Hg & Xe ,or other harmful element. Recyclable, also it won't generate EMI.

 5)High performance external constant current drivers,no stroboscopic, good for eyesight protection;

 6) Patent integrated light sources, high quality Bridgelux chip, high Light effects, high color rendering index.

  7) Advanced thermal design, Integration with Moule-shaped
Integration with Moule-shaped, low thermal resistance, high heat dissipation
    efficiency.

  8) Easy for installation.

  9) Protection level reaches IP65.

 led high bay light   application as follows:
1.Workshop, factory, warehouse, highway toll station
2.Gas station, supermarket, exhibition, gym.
3.Mall, conference room, market.

Case:



1) Factory Name :Shenzhen KENA  Industry CO.,LTD.

2) ADD:Adds:NO.9-10 Building, Xialang park,Heshuikou Village,Guongmin Town, Baoan District,Shenzhen, China.

3) Shenzhen KENA ,founded in 1997,Covers an ares of more than 30,000 m²,and boasts over 500 employees.

4) More than 16 years for experience for LED production.

5) Have 4 factory,one UL LED bulbs factory,one LED production factory,and one LED outdoor fittings factory,and one big mould factory for all casing.

6) Have huge market in Europe for LED flood light,LED hight bay,LED tunnel light and LED street light.DULUCE place 4 containers to us every month from different conuntrys.
Shipping Terms

1.FCL - Full Container Loading

2.LCL - Less Container Loading

3.EXPRESS

4.Air Shipment

Payment Terms

1.T/T

2.L/C

3.Western Union

Welcome you to contact me with anything for our further communications...Thank you :)

 Technical Parameters
Power parameters

Input Voltage/Frequency  /	90-295VAC/47-63Hz
Input Current	0.65 A(230VAC)
Output Voltage	48V
Output Current	0~3.3A
Power Efficiency	>93%
Power Factor	PF>0.98/±115VAC  PF>0.95/230VAC  PF>0.93/277VAC

   Lighting parameters

LED Chips Quantity  LED	161 PCS(Philips LUXEON 3030-7C23B )
LED Consumption  LED	135W
System Consumption	150±5W
LED Luminous Efficiency  LED	>120Lm/W
Lamp's Initial Flux	>16500Lm
Color Temperature	2700K,3000K,3500K,4000K,5000K,5700K,6500K
Lamp's Luminous Efficiency	≥105Lm /W
Lumen Maintenance	70%(50,000Hrs)
Color Rendering Index	Ra≥70
Light Design	LED+ reflectors with twice light distribution LED+
Light Distribution	Please refer to attached Light distribution curve
View Angle	45°,70°,120°at the beam angle 50%
Driver Working Temperature	-40ºC ~ +60ºC
Storage Temperature	-40ºC ~ +70ºC
IP Rating	IP65
Life-span	>=50,000Hrs(Note4)
Materials	Aluminum
The color of the lamp shell	Black/Sliver /
Mounting	Lifting type
