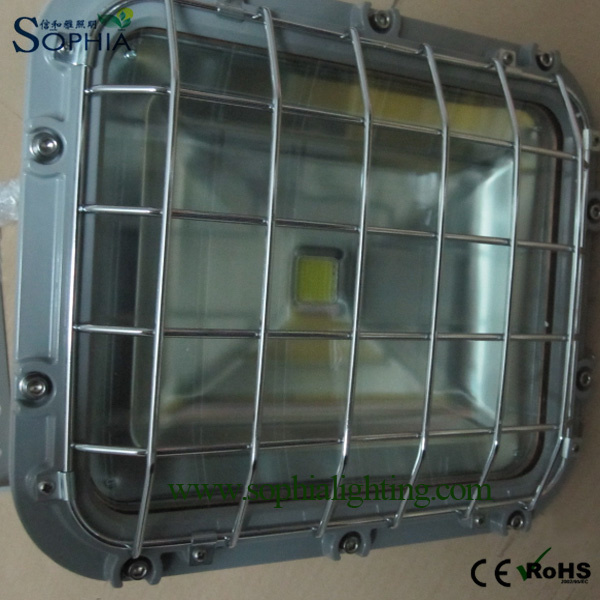

LED explosion proof light, LED explosive light
Item No.: SY3328EPL-70/ SY3328EPL-60/SY3328EPL-50/SY3328EPL/30;
Power consumption(W): 70W, 60W, 50W, 30W;
Luminous flux (Lm): 2400-5600Lm;
LED type: High power COB LED, Bridgelux or equivalent;
Power factor: ≥ 0.90;
Input voltage (V): 100-250VAC;
CRI(Ra): ≥ 70 or 80;
Color temperature (K): 3000K, 4000K, 6000K;
Average beam angle (50%): 83.86° ;
Material:
High purity die-casting aluminum housing, ( anti friction, corrosion resisting, waterproof, dustproof), high strength tempered glass; High power COB Led, high efficiency LED driver;
Working temperature (C): -30~45C;
IP rating: IP65;
LED life span (H): 50000H;
Dimension(mm): 330*280*244mm;
Net weight(kg): 10kg/pc;
Packing (pcs/carton): 1PCS/Carton;
Application:
Safety lighting for: Flammable environment( chemical, petroleum industry); Flammable gas environment: Area1, Area2;
Explosive gas environment: II A, IIB, IIC;
Temperature category: T1~T5;
Explosion mark: Exd II BT5
|
Item No. |
SY3328EPL-30 |
SY3328EPL-50 |
SY3328EPL-60 |
SY3328EPL-70 |
|
Power consumption(W) |
30W |
50W |
60W |
70W |
|
Luminous flux (Lm) |
2400Lm |
4000Lm |
4800Lm |
5600Lm |
|
LED type |
High power COB LED |
|
Power factor |
≥ 0.90 |
|
Input voltage (V) |
100-250AC |
|
CRI(Ra) |
≥ 70 |
|
Color temperature (K) |
3000K 4000K 5000K 6000K |
|
Average beam angle (50%): |
83.86 ° |
|
Material |
Special die-casting aluminum housing ( anti friction, corrosion resisting, waterproof, dustproof), high strength tempered glass; High power COB Led, high efficient LED driver |
|
Working temperature |
-30~45 |
|
IP rating |
IP65 |
|
LED life span (H) |
50000H |
|
Dimension(mm) |
330*280*244mm (L*W*H) |
|
Net weight(kg) |
10 kg/pc |
|
Packing (pcs/carton) |
1PCS/Carton |
|
Outer carton Size (mm) |
360*280*330mm |
|
Application |
Safety lighting for: Flammable environment( chemical, petroleum industry); Flammable gas environment: Area1, Area2;
Explosive gas environment: II A, IIB, IIC;
Temperature category: T1~T5;
Explosion mark: Exd II BT5 |
Shenzhen Sophia lighting Co., Ltd was founded in 2009, which specializes in researching, developing, producing and exporting first class LED professional lighting and Transformers. Our products are produced with CE & RoHS compliance which include LED Headlight, LED Emergency light, LED Search light, LED Pool light, LED Explosive proof light, Toroidal transformer, EI transformers and so on.
The main advantages of SOPHIA LED lightings and transformers are stable quality, delicate workmanship, high-efficient, long-lifespan. The most fortune of Sophia is our skilled and loyal workers, they concentrates on workmanship and quality, these ensures we can do like we promise. Sophia Lighting runs strictly according to ISO9001: 2008 quality control system. Most of lightings were designed by our experienced R&D team, many of these veterans have 10-15 years experience in lighting and Power supply. SOPHIA has made various toolings for LED Headlight, LED Emergency light, LED Pool light, LED Search light and transformers. For all raw materials, from LED chip, power supply, copper wire to screw, box, we inspect carefully and insist use brand one, quality one. From soldering to wire, we try to improve our workmanship. Safety and durability are our most import principle. All products go through strict quality controlling procedures and aging test process to make sure all the lamps with stable quality and good performance.
With advanced management, professional team, unique design, excellent quality, reasonable price, rapid delivery and all-around services, SOPHIA products have been well-accepted all over the world, especially very popular in Europe, America and Asia markets.
Adhering "good reputation, customer is supreme, long time partners" business principle, with the idea of "Honesty, Quality, Innovation, Efficiency" to serve customers all over the world. We will keep on developing new products, improving quality and service, to make more contributions in low carbon age.
