Product Description

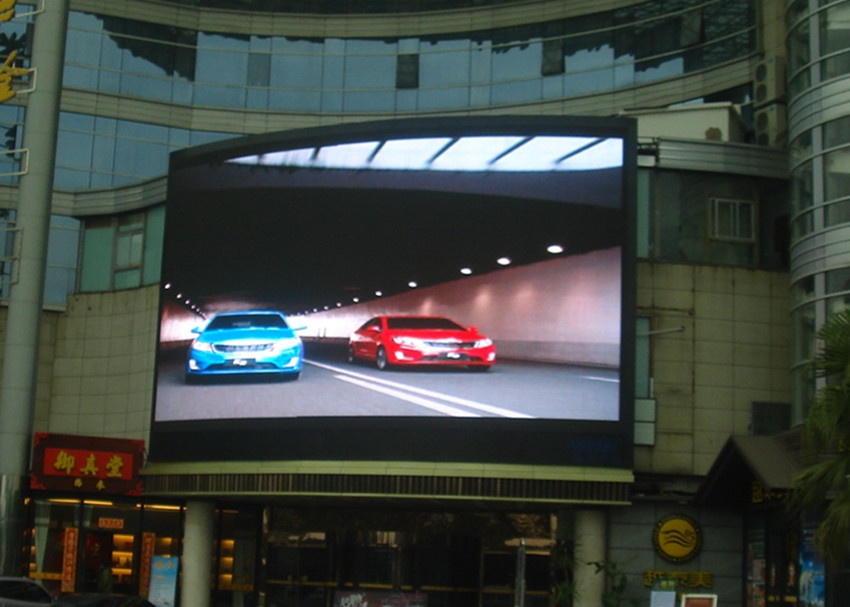

Outdoor Full Color LED Display (P10 advertising LED Display Screen)/LED sign/LED wall
1. Full color outdoor LED display/LED display could be used in outdoor environment such as cultural or relax square, commercial walking street, residential sub-district, downtown, etc. Place, with the special of dampproof, windproof, sunproof, static proof, anti-freezing, waterproof, its purpose is to propagandize outdoor advertising or play the important news or events or TV program, enrich the resident's cultural life, advance the whole visualization of sub-district, etc.
(LED stage display, LED Outdoor video wall, Wedding LED display, The stage LED electronic screen, LED large screen full color display, advertising LED display, outdoor LED display, indoor LED display)
2. P10 Outdoor LED display Features of the product:
1) High brightness and be adjustable, meets the need of the changing requirement of customer in environment.
2) Having good lightening accordance and no mosaic.
3) Using virtual pixels, better viewing effect for both text & graphic and video.
4) Having larger viewing angle: Horizontal angle 100 degree / elevation angle 45 degree. Getting vivid effect within any position of the viewing range.
5) Any LED in each pixel can be respectively repaired, which reduce the cost of the display maintenance
6) Good heat emission capability
7) Environmental-friendly.
3. Description: LED Display /LED display screen/LED sign/LED video wall
1). Model No.: P10m, P12mm, P14mm, P16mm, P18mm, P20mm, P25mm, P31.25mm, P40mm, P50mm(DIP LED)
2). Display Color: 256*256*256
3). LED Chips: Nichia, Cotco, CREE, AXT, Taiwan
4). Raw Materials: Toshiba IC, MBI IC, Chuanglian Power Supply, Meanwel Power Supply, Meanwel fans, ADDA fan, Beijing glue, Korean glue.
5). Cabinet: Standard cabinet, simple cabinet, customized cabinet, cabinet for rental, Iron or Aluminum cabinet, cabinet for front maintenance, cabinet with lock, Special cabinet with Southco Lock, for hung and rental and so on.
6). Package: Flight box, wooden box package
7). Guarantee: 2 year with parts
Ability
Integration of industrial chain
Advanced Technology
Large-scale, standardized Production
Custom Design
Cost Control
Qualification
2010 Shanghai World Expo official sponsor
7 years design and manufacture full color display experience
Classic projects all over the world that would be time-tested
Certification
ETL certification
UL certification
SGS certification
3C certification
CE certification
ISO9000
RoHS certification
IP65 certification
EMC certification
Market
Advertising Media
Stadium
Scenery
ItemP10 advertising LED Display
Pixel Pitch: 10mm
Driving Method:
Static duty
LED type: DIP 346
Brightness: >10000CD/m 2
Pixel density3096pix/m 2
Viewing angle: 120° H and 60° V
Module Size(W*H)
256*256mm
Cabinet Size(W*H)
1024*1024mm
Cabinet weight: 45kg
Cabinet Material: Aluminum
Avarage Power Consumption: 420 W/m 2
Max Consumption: 980 W/m 2
Refresh rate: >1200Hz
Color Depth: 14bit
Voltage: 200-240V
IP Rrating (Front/Rear): IP65/IP54
Operating temperature: -20-60 degree
Storage temperature: -40-70 degree
Operation humidity: 10-90%
Storage humidity: 10-90%
Life span (hrs)>55000
Control systemLinsn/Nova
Compliant standard: CE, CCC, FCC, RoHS
|
Model |
Indoor P6 |
|
LED |
3-in-1 or RGB 3 discrete |
|
Pitch |
10mm |
|
Pixel Density/ m² |
10000 |
|
Color |
16M-281 Trillions |
|
Grey Scale |
8 bits (256) to 16 bits (65536) |
|
Viewing Angle |
H≥140°
V≥120° |
|
Best Viewing Distance(meter) |
6-45 |
|
Max Brightness at all LED white |
≥6000CD/ m² |
|
Working Temperature |
-20°C~+50°C |
|
Working Humidity |
10%~90% |
|
Display |
multimedia |
|
Frame refresh rate |
75Hz |
|
Pixel refresh rate |
≥240Hz |
|
Communication |
CAT5cable≤100m
optical/fiber>100m |
|
Input Voltage |
110V±10%
220V±10% |
|
Continuous working hours |
>24 |
