1. Adopting integrated Chip as light source with high lighting efficiency(80-100LM/W), high CRI(Ra> 80), good quality heat dissipation, low light degradation.
2. Aluminum alloy die cast steel, good strength, high quality heat dissipation. Anti corrosion and baking varnish surface, can be for outdoor using.
3. Make a dedicated luminous intensity distribution design via the aluminum reflector, there are two options for lighting distribution, one is for focusing, another is for divergencing.
4. Wide Input Voltage from 96V~264VAC, constant voltage constant current output, can start up at once.
|

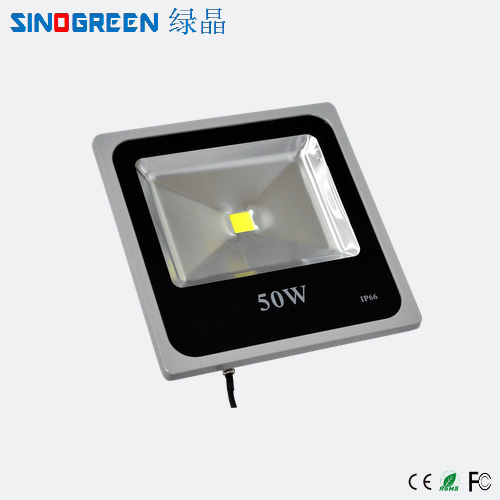

COB LED Flood Light |
|
Model |
LJ-FL002-10W |
LJ-FL002-20W |
LJ-FL002-30W |
LJ-FL002-50W |
|
Systen Power |
10W |
20W |
30W |
50W |
|
Lumious Flux |
850Lm |
1700Lm |
2550Lm |
4250Lm |
|
LED Units |
1*10 COB |
1*20 COB |
1*30 COB |
1*50 COB |
|
Operating Voltage |
AC85V-265V, 47 - 63Hz |
|
IP Protection Grade |
IP66 |
|
Color Temperature |
2800-7500K |
|
Power Factor |
≥0.95 |
|
CRI |
≥80Ra |
|
Humidity |
5-95%R.H |
|
Beam Angle |
120Degrees Centigrade |
|
Working Environment |
Between -20Degrees Centigrade~ +50Degrees Centigrade |
|
Storage temperature |
Between -40 Degrees Centigrade ~ +85 Degrees Centigrade |
|
LED life span |
35000 hours |
|
Certification |
CE\RoHS |
Hangzhou Sinogreen Optoelectronics Co., Ltd.Is located in Hangzhou, the beautiful West Lake, which is a research and development production and sales-oriented manufacturing enterprise.Specializing in industrial lighting, commercial lighting, environmental LED lighting design, the company has passed ISO9001:2000 quality management system certification.
The company has an independent R & D centers and R & D team, and is equipped with advanced testing equipments and production equipments.Besides company's own R & D team, the company has established a long-term and friendly strategic partnership and production base with China Tsinghua University, Peking University, Zhejiang University, and China Jiliang University, which has laid a solid foundation for company's products development and technoligical upgrading.
In the application areas, the company has developed LED street lighting, LED commercial lighting, LED lighting, LED moving lighting, wind and solar LED street lighting and other LED products, and has independent intellectual property rights in many fields.So far, the company's products have got 3C, CE, RoHS, UL, FCC, SASO and other related certification.
Our products sell well at home and abroad, and customers are from in nearly 50 countries on five continents and regions.The company has agencies in each provinces and branch companies more than ten provinces, with improved marketing channels and service network.
Leading technology, excellent products, solid quality, and integrity service is our requirements and responsibilities for each product.We will try our best to make contribution to the human's promotion of new energy and energy conservation.
