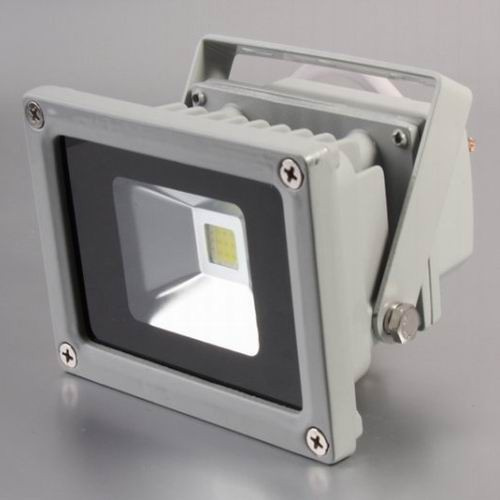

1. Main features of the LED floodlight 10W
Lighting tensile aluminum heat sink structure for the profile, can be installed in different power lamp bulbs, ensure that the high flux output and reduce the reflection coefficient of attenuation
High-power LED photoelectric conversion efficiency is 10 times that of traditional incandescent lamp, energy-saving lamp 2 times, the metal halide lamp of 2.5 - 3 times.
Energy saving, do not produce waste products, will be fully recovered
To maintain the overall architectural unity and perfect, the setting does not destroy the lamps, decorative lights hidden inside the light source is not exposed, no glare, the human visual effects gentle even
2. Parameter description
Power consumption: 10W
Qualification: CE, RoHS,
Protection grade: IP=65
A number of lumens,: 850 LM
Beam angle ( degree ): 150 degrees
Frequency range: 47Hz ~ 63Hz,
Spectral luminous efficiency ( as ): 93%
Effective power: : 83%,
Size: 116mmx, 85mm x 98mm
Net Weight: O. 69kg,
Color: Warm white ( 3000 ~ 3300K ), neutral white ( 5500-6000K ), cold white, ( 6500 ~ 7000K )
Lamp life: > 50000 Hours
Warranty period: 2 years
3. Scope of application
10W LED floodlight could used in square, building, park, station, airport, sculpture, works of art, lawn, garden, factories, shopping malls, street shop, playground, tennis courts, golf course, basketball courts, soccer field, billboards, residential and other flood lighting...
Power Consumption |
Fixture Color |
Work Voltage |
View Angle |
Color Temperature |
Lumen Output |
CRI |
Weight (kg) |
Dimension (mm) |
10w |
Gray / white |
12V/24V |
120 |
warm white: 3000-3300K neutralwhite: 5500-6000K cold white: 6500-7000K |
800-900LM |
> 70 |
0.69 |
116*85*98 |
20w |
1500-1800LM |
1.35 |
180*140*110 |
30w |
2700-2800LM |
2.35 |
285*235*150 |
50w |
4500-4700LM |
3.3 |
285*235*150 |
60w |
5400-5700LM |
4.5 |
360*290*120 |
