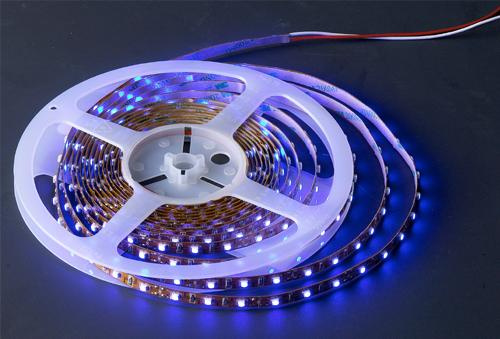

LED type: 3528 SMD LED
Available colors: R/G/B/Y/W/CW
Viewing angle(θ ): ≥ 140°
Luminous flux (lm)
RED 330 GREEN 900 BLUE 270
YELLOW 300 WHITE1500 COLD WHITE 1500
Wavelengt(nm/K)
RED 619-635 GREEN 512-528 BLUE 463-475
YELLOW 584-595 WHITE 5500-6500 COLD WHITE 9000-11000
LED qty/Module: 300PCS
Life span: 50, 000h
Electric parameter
Working voltage(V): DC12V
Power consumption(W): 30W
Driving method: Constant voltage
Wires&series connection length
Wires: Input end connect two-core RVV, red and black wire,
Red: V1+; Black: V1-.
Stand length in serial connection: 5M
Maximum length in serial connection: ≤ 5M
Outer Parameter
Shell:
Dimension: 5000*8*2.5mm
Color: Yellow
Fixed mode
Screw: /
Double-sided adhesive: 5000*8mm, 3M double side adhesive tape
Environment Parameter
Working Temperature: -40degree Celsius- +50degree Celsius
Storage Temperature: -50degree Celsius- +60degree Celsius
IP grade: IP33
