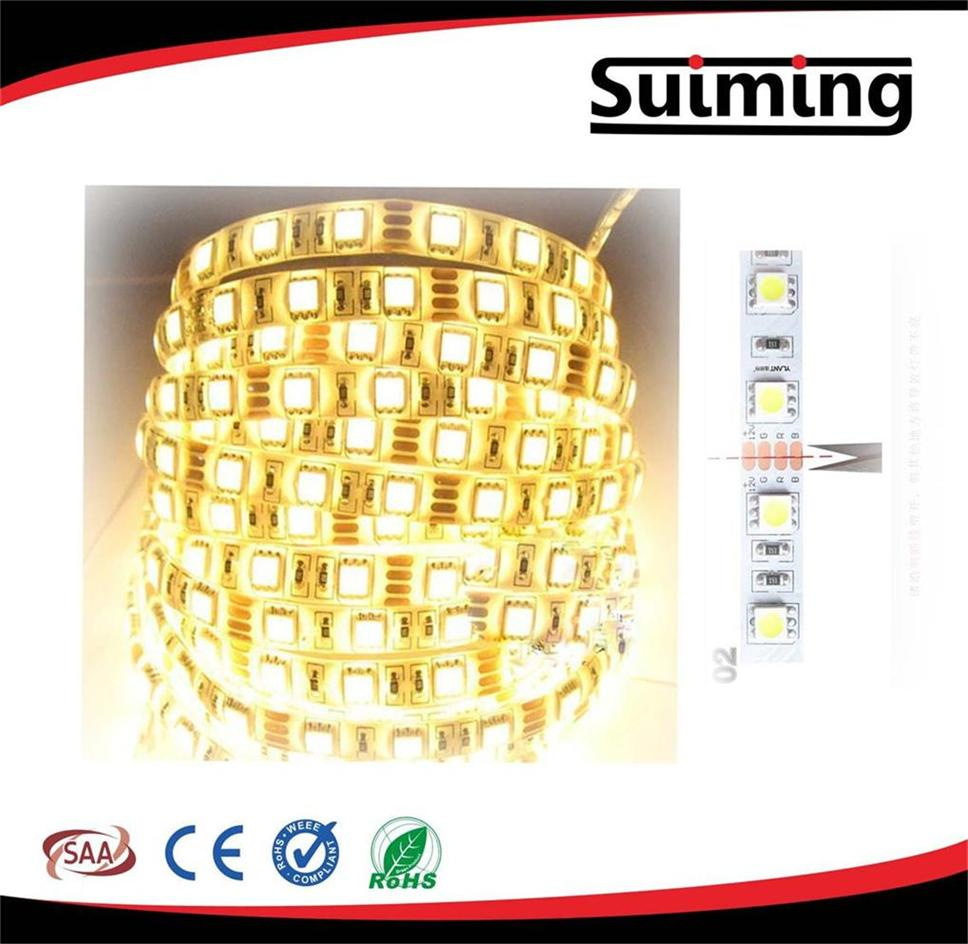

Product Specification:
1. Waterproof IP67
2, SMD5050, 60 LEDs /meter
3. RGB color and Single color
4. Cutting per 3 LEDs
5.1 year warranty
Options for IP Rank and Installation:
1. IP33 (Non-waterproof)
2. IP50 (PU Gel Coating)
3. IP65 (Silicone Tube)
4. IP66 (Full Silicone Tube) or IP66 (Parylene Coating)
5. IP68 (Silicone Tube with Glue inside) for option
Features:
Cuttable every three LEDs to provide convenient installation with lesser illumination costs
Can match the RGB controller and power suppier system base on your need.
Continuous length with the quickly connector
Reel package, 5meter/roll
With strong adhesive back
Lower heating during operation
Attention
1. Please make LED drivers compatible with flexible LED strips light before using.
2. To use LED strips with 5M in serial; In case of longer length, pls use them in parallel
3. Pls check if the power supply is in compliance with of the power requirements
4. Each roll asks for an independent power supply.
Application:
Widely use in the bar, tree, KTV, showing windows, advertisement, car, shopping mall and so on decorative and mood lighting.
|
|
3528/60 |
5050/60 |
|
Voltage |
DC12V |
DC12V |
|
Power |
4.8W/m |
14.4W/m |
|
Lumen |
White: 420lm/m |
White:900lm/m |
|
Color |
R/G/B/Y/W / WW/Pink/Purple/RGB |
R/G/B/Y/W / WW/Pink/Purple/RGB |
|
LED QTY |
30/m,60/m,120/m |
30/m,60/m,120/m |
|
Waterproof Material |
Epoxy Resin/PVC/ PU / Silicon |
Epoxy Resin/PVC/ PU / Silicon |
|
IP |
IP30/IP65/IP67 |
IP30/IP65/IP67 |
