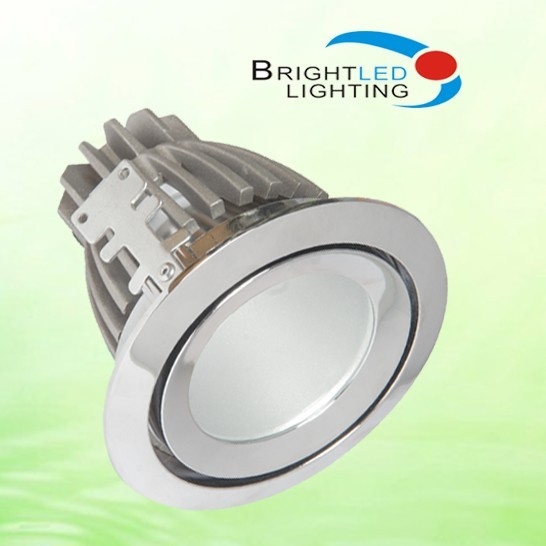

Name: LED Down Light/LED down lighting /LED ceiling lights/LED Down lights
Model: BL-DLYY10W-01
Body operating temperature: ≤ 58celsius
LED operating temperature: ≤ 65celsius
Ambient temperature: -25- 45celsius
Luminous flux(lm): 800lm-cool white, 600lm-warm white
Luminous efficacy: 80lm/w- cool white, 60lm/w- warm white
Hole: Φ 110mm
Gross weight: 650g
Dimension of the product(dia. * H): Φ 118*105 mm
Dimension of the external box(L * W * H): 61.5*37.5*47cm
Brightled Lighting down light series |
|
|
|
|
|
|
Type |
Specification |
LEDchip |
Power |
Lumens |
Beam angle |
Net weight(g) |
Dimension (mm) |
Color |
BL-DL3*1W |
Beam angle: 30-60° |
Edison |
3W |
216lm |
30-60 |
230 |
90*60 |
W/WW/CW |
BL-DL4*1W |
Beam angle: 30-60° |
4W |
288lm |
30-60 |
240 |
90*60 |
BL-DL5*1W |
Beam angle: 30-60° |
5W |
360lm |
30-60 |
350 |
106*68 |
BL-DL7*1W |
Beam angle: 30-60° |
7W |
504lm |
30-60 |
370 |
106*68 |
BL-DLYY10W-1 |
Beam angle: 60° |
Brigelux |
10W |
720lm |
60 |
630 |
118*105 |
BL-DLYY10W-2 |
Beam angle: 60° |
10W |
720lm |
60 |
880 |
150*155 |
BL-DL15W |
Beam angle: 30-60° |
15W |
883lm |
30-60 |
1050 |
185*90 |
BL-DL25W |
Beam angle: 30-60° |
25W |
1732lm |
30-60 |
1600 |
228*100 |
Brightled Lighting Technology Co., Limited, is a national high-tech enterprise of energy saving, focusing on design, R&D, production, export and technical support of LED light source and products.
Brightled Lighting not only has an excellent R&D team and management team, but also has strategic cooperation with experts, consultants, etc in the LED lighting field. Through 11 years development, Brightled Lighting owns core technology and experiences in LED Lighting products development, optical design, mould development, etc. We have developed many series of LED lighting products, including Series universal for both Outdoor and Indoor application, Series for Project and Landscape lighting, Series for Indoor Decoration, Series for Power LED lighting. Most of our products have gained CE, UL, RoHS certificates and so on.
"High quality products and best service" is the first article of our company core values. We regard it as our mission to provide high quality products with the best service at a most reasonable price in the industry and to deal with customers in an honest and responsible manner.
Bright LED Change life Bright.
