Product Description
1. Mrled P10 Full Color outdoor LED Display/LED signs/LED board/LED price
LED Display, Indoor outdoor LED Display, Full color LED display, outdoor LED display:
P10 outdoor LED Display uses state-of-art LEDs, which has the brightness for indoor and outdoor application. The LED display has the advantage of excellent flatness, super uniform color and brightness. The LED Display has long viewing distance. Theoutdoor LED display cabinet of the rental LED display use aluminum which make the weight very light and easy to assemble.

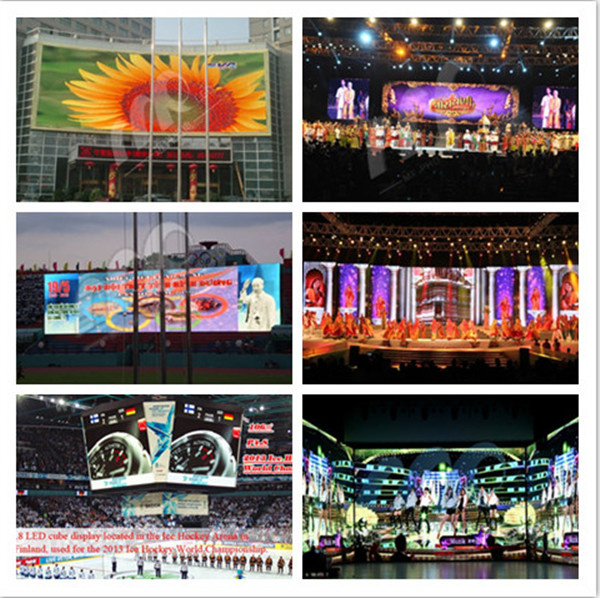

Full color OutdoorLED display could be used in outdoor environment such as cultural or relax square, commercial walking street, residential sub-district, downtown, etc. Place, with the speciality of dampproof, windproof, sunproof, staticproof, antifreezing, waterproof, its purpose is to propagandize outdoor advertising or play the important news or events or TV program, enrich the resident's cultural life, advance the whole visualization of sub-district, etc.
2. Features of the product:
1) High brightness and be adjustable, meets the need of the changing requirement of customer in environment.
2) Having good lightening accordance and no mosaic.
3) Using virtual pixels, better viewing effect for both text & graphic and video.
4) Having larger viewing angle: Horizontal angle 100 degree / elevation angle 45 degree. Getting vivid effect within any position of the viewing range.
5) Any LED in each pixel can be respectively repaired, which reduce the cost of the display maitenance.
6) Good heat emission capability
7) Environmental-friendly.
3. Description:
1). Model No.: P10m, P12mm, P14mm, P16mm, P18mm, P20mm, P25mm, P31.25mm, P40mm, P50mm(DIP LED)
2). Display Color: 256*256*256
3). LED Chips: Nichia, Cotco, CREE, AXT, Taiwan
4). Raw Materials: Toshiba IC, MBI IC, Chuanglian Power Supply, Meanwel Power Supply, Meanwel fans, ADDA fan, Beijing glue, Korean glue.
5). Cabinet: Standard cabinet, simple cabinet, customized cabinet, cabinet for rental, Iron or Aluminum cabinet, cabinet for front maintenance, cabinet with lock, Special cabinet with Southco Lock, for hung and rental and so on.
6). Package: Flight box, wooden box package
7). Guarantee: 1 year with parts
Mrled P10 Full Color outdoor LED Display/LED signs/LED board/LED price
ItemOutdoor normal cabinet series(960*960mm)
Pixel Pitch: 10mm10mm10mm(Super Flux)12mm
ItemOutdoor normal cabinet series(960*960mm)
Pixel Pitch: 10mm10mm10mm(Super Flux)12mm
Outdoor LED display Qualification Certificate With CE, RoHS, FCC, ISO9002
|
Pixel Pitch |
10mm |
|
Pixel Density |
10000pix/m2 |
|
LED Type |
DIP 5454 |
|
Viewing Angle |
X\Y 120° |
|
Brightness |
6500 nits |
|
Drive Method |
1/2 |
|
Driving IC |
MBI5024 |
|
Color Depth |
12bit |
|
Refresh Rate |
1800Hz |
|
Module Size(mm) |
160x160mm |
|
Cabinet Size(mm) |
960x960 mm |
|
Cabinet Type and Material |
iron |
|
Cabinet Weight |
40kg/m2 |
|
Voltage |
110/220 V |
|
Avg. Power Consumption |
585 W/m2 |
|
Max. Power Consumption |
1310 W/m2 |
|
Service Access |
|
|
IP Grade |
IP65/IP54 |
|
Operating Temp/Humidity |
-20ºC~50ºC10~90%RH |
|
Storage Temp/Humidity |
>50000H |
|
Lifetime(Normal Temp) |
Linsn/Norw |
|
Compliant Standard |
|
