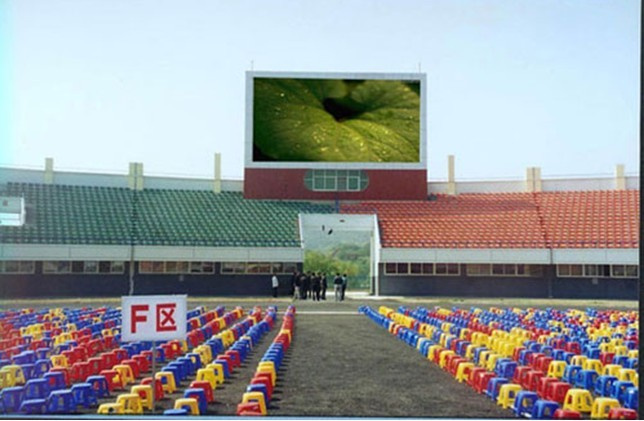

LED display, outdoor LED display, full color LED display
Our Advantages:
1.) Good quality and competitive price: to meet the requirements of different clients of quality and price, the company uses various standards LED, such as Taiwan, Slain, CREE, COTCO, etc.
2.) Good quality raw material
3.) LED: Adopting low current, high brightness LED, body antistatic>1000V, LED scope wavelength with in 5nm, so the screen with reliable performance, good consistency, fast response time and long life times.
4.) Mask: All designed by ourselves, using good PC material, not easy to deform, keep good coherence.
5.) Convenient installation: We prepare a full-set installation manual and free training, which will make you easy to install and operate the screen.
6.) Good after-sale service: One year warranty, lifetime maintain. During the warranty time, all broken parts caused by the quality problem could be replaced by us free of charge.
About the service, our guarantee is two years. During this period, we usually provide free technology support by phone and email. If some modules or other spares damaged, you can send it to us. We will send them back to you at free after repaired. If you have something urgent and can not handle by yourself, we can arrange a technician and a translator to your country. You will pay their plane ticket, insurance, food, hotel........
|
(1) Composition |
|
Each pixel composed by 2R1G1B four LED tubes. |
|
(2) Pixel specifications |
|
No. |
Item |
Parameters |
|
1 |
Pixel size: |
5mm |
|
2 |
Pixel Pitch |
16mm |
|
3 |
Pixel Intensity |
7000cd/ M2 |
|
(3)Tube Core Specifications |
|
No. |
Item |
Wave Length |
Intensity |
Brand/Origin |
|
1 |
Red Core |
620_ 625nm |
500mcd |
Brands can be chosen by clients. |
|
2 |
Green Core |
520_ 525nm |
1800mcd |
|
3 |
Blue Core |
465_ 470nm |
600mcd |
|
(4) Screen body specifications |
|
Display size |
|
|
Module Size |
256mm*128mm |
|
Module Resolution |
32dots*16dots |
|
Cabinet Size |
1024mm*768mm |
|
Display Density |
3906dots/ M2 |
|
Max power/sqm |
(1100w/ M2) (average) |
|
Packing |
Cartons+ Plywood case |
|
Gross weight/case |
60kg |
|
Lead time |
25 days |
|
Drive way |
4 scans CC drive |
|
Visible Distance |
20-200 meters |
|
Gray Scale |
Red 256, green 256, blue 256 |
|
Display Color |
256*256*256 |
|
Frame Rate |
≥ 120frames/second |
|
Scanning rate |
120HZ |
|
Life time |
> 100000 hours |
|
Screen MTBF |
5000 hours |
|
Malfunction Dot Rate |
≤ 0.0003 |
|
Work Voltage |
AC220V± 15% 40-65HZ |
|
Control distance |
< 100m(without relay)(5 wire)(> 500 with fiber) |
|
Work Temperature |
-30-60 |
