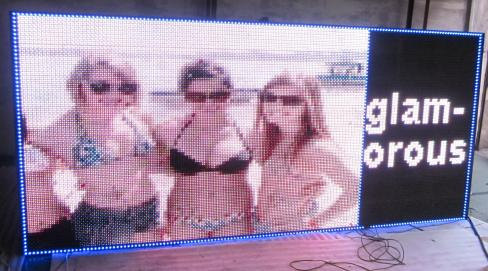

LED Display (RCGOP20RGB64X144)

LED Display (RCGOP20RGB64X144)
Price: Negotiable
Min Order: 1
Contact Supplier
Individual User (Chen Chong)
Showroom Product Company Profile
Features / functions for this item are as follows:
Model No.: RCGOP20RGB64x144
Color: Full color
Usage: Outdoor, waterproof and dustproof and shockproof
Pitch: 20 mm
Best viewing distance: Within 400 meters
Viewing angle: 110 degrees
DOT matrix( total screen resolution): 64(height) x 144(length) dots
Visual display area: 1280 (H) X 2880(L) mm
Cabinet size: 2880(L) x 1280(H) x 160(D) mm
Outside cabinet material: Galvanized steel case, black color
N. W.: 188KG
Brightness: More than 7000CD per square meter, super high bright, suitable for viewing in outdoor strong sunshine, can be adjusted in software
Lead time: 25 days
Warranty: 3 year
Quality grade: 8 grade (Max. Is 10 grade)
Features/ functions: Single-face displaying, to show moving/ scrolling text, graphics, table, GIF animation, video or TV (with audio function), picture, time, date, temperature and some symbols such as $, @, &, % etc.
Control way: TCP/IP or wireless TCP/IP via computer
Maintenance, case and installation: Backside-opening. See the attached pictures
Power supply: 250V AC
Power consumption: 2000W Max. And 300W Min
Current: 19A
Quantity: Pending
Packing(one piece): The screen will be cut to be 3 PCS of cabinets, each cabinet is 64X48 pixels. Each cabinet to be put in one wooden crate(1340X1010X280MM =0.379CBM, 76.3KG). Total is 229KG, 1.14CBM
Unit Price: Contact Mr. Ben Wen please
Shipping cost: Please tell me your address so that I check it
More details: See attached word table
No. Reference Items Technical Parameters Remarks
1 Color Full Color
2 Pixel Composition 2red +1green +1blue
3 Pixel Pitch 20mm
4 Physical Resolution 2500 dots/ square meter
5 Module Spec’s 8(H)×16(L) dots
6 LEDComponents Inserted LED
7 Driver mode Constant current driver, dynamic state/static scanned           62726
8 Level (Grey scale) 4096
9 Refresh frame frequency >300HZ
10 Display Colors Displaying 16777216 Full Colors(256×256×256)
11 Best Viewing Distance 15to 250meters
12 BestViewing Angle 110°/85° or 90°/85°or 120°/45°
13 Power Consumption Max:1500;Ave:800(W/ square meter)
14 Working Temperature -20~~+85 Celsius degrees
15 Ambient temperature -35°C~ +85°C
16 Power Source 100 to 250V AC are optional (50/60Hz)
17 Max. Weight of Screen 50 KG/ square meter
18 Unit Cabinet Spec’s 64 (H) x 48(L) pixels, 3PCS of this type cabinet
19 Power Supply TaiwanMen Well Power Supply
20 Unit cabinet size 1280(L) X 960(H) X 160(D) mm
21 Thickness of Screen 160 mm(maintenance method: backside-opening)
22 Weight of unit cabinet 62 KG per cabinet(64X48 pixels)
23 Cabinet Material Black Galvanized Steel Case Color is selected freely
24 Brightness ≥7000CD/ square meter
25 LED Life-Span 10 years


26



Display Capabilities		 Video & TV live & DVD and with audio function, text, Graphics,picture,animation applet, various real-time data(e.g. time, temperature, date, humidity), Pre-define message. Can display different international languages (e.g. Arabic, English, Chinese, Swedish, Japanese etc.)

 		 Synchronous  Control with computer or laptop
Video & TV live & DVD and with audio function, text, Graphics,picture,animation applet, various real-time data(e.g. time, temperature, date, humidity), Pre-define message. Can display different international languages (e.g. Arabic, English, Chinese, Swedish, Japanese etc.) Non-Synchronous Control
27 Display Effect 26kinds of dislpayanimationtechniques

28
Mounting Ways		 Wall-hanging, Wall-inlaid, Rigging hanging, Standing-bottom etc. are available
29 ApplicationEnvironment Outdoor Use , waterproof
30 IPExposureGrade(waterproof grade) IP65
31 SoftwareSupport LEDeditor
32 Screen Assembly Assembled with 3 PCS of unit case(cabinet),
33 Basic features relatively low cost, energy-efficient, relatively stable capability, fresh and beautiful color, high definition of displaying image, under the environment of outdoorstrong beam, Mature display system software, simple operation, fit for various computer net
34 Communication method UTP(TCP/IP), Optical fiber, wireless TCP/IP
35 Wave Length of LED R: 620 to 630, G: 520 to 530 , B: 460 to 470
36 Certificates CE, RoHS, ISO9001
37 Quality level 7 grade or 8 grade (Max. 10 grade for quality)
38 Warranty 2 years(7 grade) or 3 years(8 grade)
39 StandardTime of Delivery 25WorkingDays
Prod Model: RCGOP20RGB64X144
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
RoHS: ISO9001
Usage: Outdoor
Tube Chip Color: Full Color
Display Function: Animation
Certification: CE
