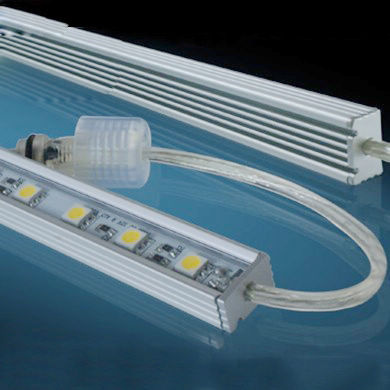

Counter Bar Lamp high power LED strip rigid bar light 12V waterproof
Super Flux 112 lamp type LED rigid strip light with clear plastic body, powered by 12V DC power supply, outdoor and indoor applications. Custom length manufacturing is available.
FEATURES:
1. Print circuit board thickness: 11.58mm
2. Dimensions: 60 LEDs, Length 1002mm, width 18mm (or: 30 LEDs, 500mm)
3. Dimmable: Can be dimmable by using our dimmable devices 12V DC
4. Working voltage: 12V DC
5. Working current: 340-400mA
6. Power: 4.8 watts
7. Solid-state, high shock or vibration resistant
8. Wide angle of 80° High brightness superflux lamp LED used, making the light output smooth and even
9. No RF interference
10. Maintenance free, easy installation
11. Life span up to 45, 000 hours
12. Low power consumption, high intensity
13. CE, RoHS Certificates
14. 1 PCS / PVC tube
Application:
1. Architectural decorative lighting
2. Archway, canopy and bridge edge lighting
3. Amusement park, theater and aircraft cabin mood lighting
4. Emergency hallway lighting
5. Auditorium walkway lighting
6. Stairway accent lighting
7. Concealed lighting
8. Backlighting for signage letters
9. Channel letter lighting
10. Emergency exit path lighting
11. Cove lighting
12. Outdoor applications
LED Rigid Strip -1 Selectable Items |
Super Flux LED Waterproof Rigid Strip |
Part # |
Color |
LED Quantity |
Total |
Chip Type |
Correlated Color Temperature (CCT) Kelvin |
|
Voltage (V DC) |
Total |
|
Dimensions (mm) |
Length |
(pcs) |
Luminous Flux (lm) |
Viewing Angle |
Current (mA) |
Total |
W x Th |
(Meter / tube) |
|
|
(Degree) |
|
Wattages |
|
|
ECL-BAR-SF-RD |
Red |
30 / 0.5M |
23-30 |
Super Flux Lamp |
620-623nm |
80 |
12 |
160-200 |
2.4 |
18 x 12 |
0.5 |
ECL-BAR-SF-BL |
Blue |
30 / 0.5M |
15-20 |
Super Flux Lamp |
466-470nm |
80 |
12 |
160-200 |
2.4 |
18 x 12 |
0.5 |
ECL-BAR-SF-GN |
Green |
30 / 0.5M |
55-65 |
Super Flux Lamp |
520-525nm |
80 |
12 |
160-200 |
2.4 |
18 x 12 |
0.5 |
ECL-BAR-SF-Y |
Yellow |
30 / 0.5M |
23-30 |
Super Flux Lamp |
570-580mn |
80 |
12 |
160-200 |
2.4 |
18 x 12 |
0.5 |
ECL-BAR-SF-CW |
Cool White |
30 / 0.5M |
115-125 |
Super Flux Lamp |
6, 000-7, 000K |
80 |
12 |
160-200 |
2.4 |
18 x 12 |
0.5 |
ECL-BAR-SF-PW |
Pure White |
30 / 0.5M |
115-125 |
Super Flux Lamp |
5, 000-6, 000K |
80 |
12 |
160-200 |
2.4 |
18 x 12 |
0.5 |
ECL-BAR-SF-NW |
Neutral White |
30 / 0.5M |
115-125 |
Super Flux Lamp |
4, 000-4, 800K |
80 |
12 |
160-200 |
2.4 |
18 x 12 |
0.5 |
ECL-BAR-SF-WW |
Warm White |
30 / 0.5M |
115-125 |
Super Flux Lamp |
3, 000-3, 500K |
80 |
12 |
160-200 |
2.4 |
18 x 12 |
0.5 |
ECL-BAR-SF-WW-D |
Deep Warm White |
30 / 0.5M |
115-125 |
Super Flux Lamp |
2, 700-2, 900K |
80 |
12 |
160-200 |
2.4 |
18 x 12 |
0.5 |
Shenzhen ZhongYuanYang Investment(Lighting) Development Co., Ltd was a famous professional LED lighting manufacturer, Our main products include LED strip, LED tube light, LED bulbs, LED spoting light, LED ceiling light, LED panel light, LED down light, we aslo launch ourself LED drive power supply sub-factory in order to control our product quality absolutely well.
Founded in 2006 with 350 emplyee and have ISO9001: 2008 management system certified, fabrication area 25, 000 square meters. Advanced and professional equipments are utilized to aid LED assemblies of LED strips, array and various luminaire. The equipments include SMT assembly, auto soldering lines, opto-electrical test devices, light and optical distribution analysis devices. The well trained production and QC staff can follow all the lights perfect performance. All the products are CE certified and RoHS compliant. ZhongYuanYang has gradually become the biggest supplier of LED strips and a most trusted supplier of LED luminaire.
ZhongYuanYang endeavor to develop new products with the LED and LED power supply technology. Our expert R&D team have abundant knowledge of electric components, thermal management, optics as well as industrial design.
We bring out new luminaires and custom design LED. All designs strictly follow the UL and EU electrical safety standards. We aslo can customiz LED lighting by your requirement in a shortest time as only 3 days under our stronger R&D department.
