DC12V/AC85-265V LED Corn Light
Introduction of LED Corn Light:
LED Corn lamp is a kind of LED lamps, because LED light angle is 120 degrees and considering the luminous uniform, desigened to 360 degrees, its shape like a corn COB, so called LED corn light. Lamp body is samll, suitable for commonly used base, easy installation, modern design, sophisticated technology, don't produce any waste. Widely use in modern lightings.
Advantage
1. 360 degree lighting angle to match different shapes of lampshade, creating comfortable and romantic atmosphere.
2. Good quality Aluminum material in the middle, so that heat dissipation well, and low decay below 3% in 10, 000 hours service.
3. Replace traditional light directly, energy saving 80%.
4. AC100-265/DC12V available, be wide applien in countries all over the world, also be applied in solor system.
5. Environment friendly, no noise or flickering.
6. All LEDs light up immediately, even switch on/off often, it will not affect lifetime.
7. Special circuit design, any individual LED failure will not cause other LEDs in working condition to black out.
8. Different color temperature available: 3000K-7500K.
Application:
Widely use in Garden, household, hotels, schools, hospitals, factories, high ceiling etc.
Type |
Voltage |
Size (mm) |
LED qty |
Max Lumens |
Base |
Material |
Working Temp. |
Replace
Incandescent |
SC-28-3W-C |
AC100-265V DC12V
50Hz/60Hz |
Φ48*118 |
36pcs |
300LM |
E27 / E14 |
AL+PC |
-20~+60°C |
12W |
SC-28-5W-C |
AC100-265V DC12V
50Hz/60Hz |
Φ48*128 |
84pcs |
510LM |
E27 / E14 |
AL+PC |
-20~+60°C |
20W |
SC-28-7W-C |
AC100-265V DC12V
50Hz/60Hz |
Φ48*138 |
108pcs |
660LM |
E27 / E14 |
AL+PC |
-20~+60°C |
28W |
SC-28-9W-C |
AC100-265V DC12V
50Hz/60Hz |
Φ48*152 |
144pcs |
890LM |
E27 / E14 |
AL+PC |
-20~+60°C |
36W |

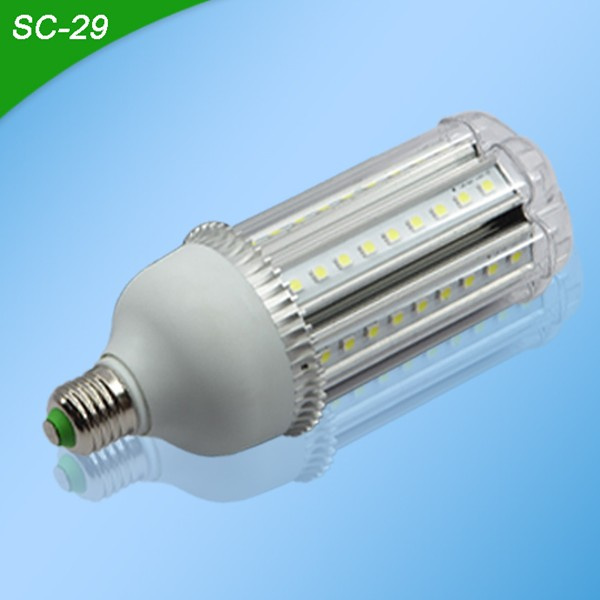

Middle Corn light SC-29
Type |
Voltage |
Size (mm) |
LED qty |
Max Lumens |
Base |
Material |
Working Temp. |
Replace
Incandescent |
SC-29-12W-C |
AC100-265V DC12V
50Hz/60Hz |
Φ80.5*215 |
49pcs |
1190LM |
E40 / E27 |
AL+PC |
-20~+60°C |
36W |
SC-29-15W-C |
AC100-265V DC12V
50Hz/60Hz |
Φ80.5*215 |
77pcs |
1386LM |
E40 / E27 |
AL+PC |
-20~+60°C |
48W |
SC-29-18W-C |
AC100-265V DC12V
50Hz/60Hz |
Φ80.5*235 |
84pcs |
1675LM |
E40 / E27 |
AL+PC |
-20~+60°C |
54W |
SC-29-20W-C |
AC100-265V DC12V
50Hz/60Hz |
Φ80.5*235 |
98pcs |
1955LM |
E40 / E27 |
AL+PC |
-20~+60°C |
60W |
SC-29-24W-C |
AC100-265V DC12V
50Hz/60Hz |
Φ80.5*255 |
112pcs |
2235LM |
E40 / E27 |
AL+PC |
-20~+60°C |
70W |
High Power Corn light SC-30
Type |
Voltage |
Size (mm) |
LED qty |
Max
Lumens |
Base |
Material |
Working
Temp. |
Replace
Incandescent |
SC-30-30W-C |
AC100-265V DC12V
50Hz/60Hz |
Φ103*240 |
30pcs |
3200LM |
E40 / E27 |
AL+PC |
-20~+60°C |
90W |
SC-30-36W-C |
AC100-265V DC12V
50Hz/60Hz |
Φ103*260 |
36pcs |
3800LM |
E40 / E27 |
AL+PC |
-20~+60°C |
100W |
SC-30-42W-C |
AC100-265V DC12V
50Hz/60Hz |
Φ103*310 |
42pcs |
4500LM |
E40 / E27 |
AL+PC |
-20~+60°C |
120W |
SC-30-48W-C |
AC100-265V DC12V
50Hz/60Hz |
Φ103*330 |
48pcs |
5020LM |
E40 / E27 |
AL+PC |
-20~+60°C |
150W |
SC-30-54W-C |
AC100-265V DC12V
50Hz/60Hz |
Φ103*350 |
54pcs |
5650LM |
E40 / E27 |
AL+PC |
-20~+60°C |
160W |
SC-30-60W-C |
AC100-265V DC12V
50Hz/60Hz |
Φ103*370 |
60pcs |
6350LM |
E40 / E27 |
AL+PC |
-20~+60°C |
180W |
High Power Corn light SC-27
Type |
Voltage |
Size (mm) |
LED qty |
Max
Lumens |
Base |
Material |
Working
Temp. |
Replace
Incandescent |
SC-27-32W-N |
AC100-265V DC12V
50Hz/60Hz |
Φ124*260 |
32pcs |
3360LM |
E40 / E27 |
AL+PC |
-20~+60°C |
90W |
SC-27-36W-N |
AC100-265V DC12V
50Hz/60Hz |
Φ124*275 |
36pcs |
3800LM |
E40 / E27 |
AL+PC |
-20~+60°C |
100W |
SC-27-42W-N |
AC100-265V DC12V
50Hz/60Hz |
Φ148*236 |
42pcs |
4500LM |
E40 / E27 |
AL+PC |
-20~+60°C |
120W |
SC-27-48W-N |
AC100-265V DC12V
50Hz/60Hz |
Φ148*255 |
48pcs |
5020LM |
E40 / E27 |
AL+PC |
-20~+60°C |
150W |
SC-27-54W-N |
AC100-265V DC12V
50Hz/60Hz |
Φ148*272 |
54pcs |
5650LM |
E40 / E27 |
AL+PC |
-20~+60°C |
160W |
SC-27-60W-N |
AC100-265V DC12V
50Hz/60Hz |
Φ148*290 |
60pcs |
6350LM |
E40 / E27 |
AL+PC |
-20~+60°C |
180W |
