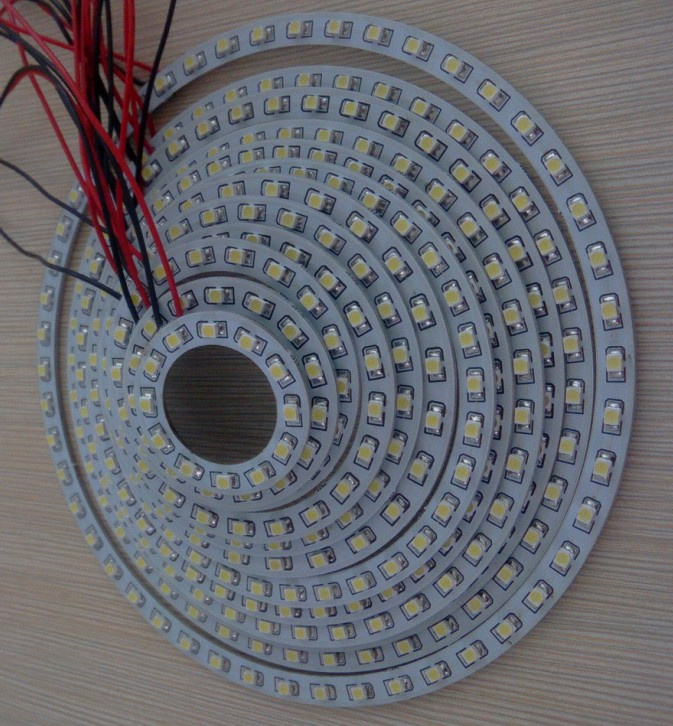

LED angle eye (D40-WG-12SMD-3528)
1, High quality light source: All our Auto LED Light source are adopted imported Chips, the luminous efficiency is over 90lm/W.
2, Profesional encapsulated mode: Large areas of encapsulated mode and imported Silica Gel to encapsulated by ourself, make the luminescence more uniform.
3, Unique light sources and structural design, make our products more beautiful and practical.
4, Built-in professional LED drive IC, make products more stable and longer life spans.
5, Good heat dissipation: We use AL6060 T6 (fully aluminium) as the material of heat dissipation, utilize advanced and very reasonable heat dissipation, that will keep our lights has long-life span.
Parameters:
1, Light source: 18PCS+24PCS+33PCS SUPER Brightness 3528SMD;
2, Working Voltage: 12VDC or 12-24VDC/AC; Lifespan: Over 40, 000 hours;
3, Viewing Angle: 140° Or 340° ;
4, Working temperature: -30° C~55° C; Storage temperature: -40° C~100° C; Humidity range: 40%-70%;
5, Packing: By Blister package(2PCS/card) and electrostatic bag package;
6, Wavelength: Red: 622-625nm, Yello: 587-590nm, Blue: 452-457nm, Green: 515-520nm;
1: Type: D40-WG-12SMD-3528
2: Socket: PCB
3: Color: All the color are available.
4: Working voltage: 12VDC / 24VDC
5: Guarantee: 1 year ( used in normal condition )
6: Terms of payment: T/T, Western Union, moneygram, paypal
7: Packing Specification
Card or Electrostatic bag
Advantages:
A) Prompt Delivery
B) Good Reputation
C) Comprehensive Service
D) Small Order Accepted
E) Guarantee: 1 year
Usage: LED angle eye, headlight.
|
Item |
Outer Diameter |
Inside Diameter |
thickness(width of PCB) |
Volt |
Power |
LM |
Angle |
|
D40-WG-12SMD-3528 |
40MM |
26MM |
7MM |
DC 12V |
1.01W |
48LM |
180° |
|
D50-WG-15SMD-3528 |
50MM |
36MM |
7MM |
1.26W |
60LM |
180° |
|
D60-WG-18SMD-3528 |
60MM |
46MM |
7MM |
1.51W |
72LM |
180° |
|
D70-WG-21SMD-3528 |
70MM |
56MM |
7MM |
1.76W |
84LM |
180° |
|
D80-WG-24SMD -3528 |
80MM |
66MM |
7MM |
2.1W |
96LM |
180° |
|
D90-WG-24SMD -3528 |
90MM |
76MM |
7MM |
2.77W |
132LM |
180° |
|
D100-WG-33SMD -3528 |
100MM |
86MM |
7MM |
2.8W |
132LM |
180° |
|
D110-WG-36SMD -3528 |
110MM |
96MM |
7MM |
3.02W |
144LM |
180° |
|
D120-WG-36SMD -3528 |
120MM |
106MM |
7MM |
3.02W |
144LM |
180° |
|
D130-WG-39SMD -3528 |
130MM |
116MM |
7MM |
3.28W |
156LM |
180° |
|
D140-WG-42SMD -3528 |
140MM |
126MM |
7MM |
3.53W |
168LM |
180° |
|
D150-WG-45SMD -3528 |
150MM |
136MM |
7MM |
3.78W |
180LM |
180° |
|
D160-WG-48SMD -3528 |
160MM |
146MM |
7MM |
4.03W |
192LM |
180° |
