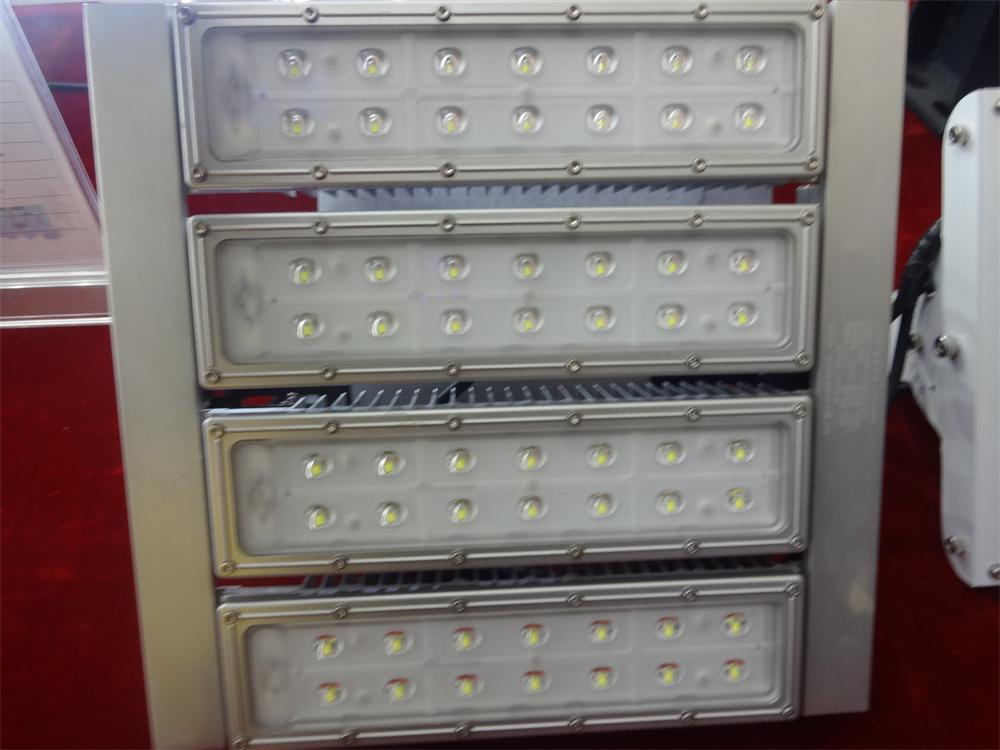

HVSDD2 series lamps and lanterns using high thermal conductivity aluminum alloy as the main body, the heat lamp shell with a luminous module independently design, module can increase the gap between hot air convection, heat dissipation than traditional lamps and lanterns is greatly increased, the be fond of according to the customer at the same time, arbitrary shape design, completely solve the radiator shell do not change the appearance of traditional design, solve the shell effect is a major problem that can affect the heat accumulation of dust.
|
LED |
OSRAM or Cree |
|
Color Temperature |
Warm or Neutral White |
|
Number of LED in each light engine |
16 |
|
Power of each light engine |
24W |
|
AC input (VAC) |
100-240 |
|
Light engine driven voltage(DC) |
48V(or 24V) |
|
Power Supply certification |
UL, CE, TUV |
|
Lens V / H dispersion angle (degree) |
60 / 60 |
|
Ingress Protection |
IP 65 |
|
Total number of light engine |
5 |
4 |
3 |
|
Total power consumption |
120W |
96W |
72W |
|
Power Supply CLG series IP65(Watt) |
150W |
100W |
100W |
|
Luminous Flux (lumen) |
8750 |
7000 |
5250 |
|
Color Rendition Index |
>70 |
>70 |
>70 |
