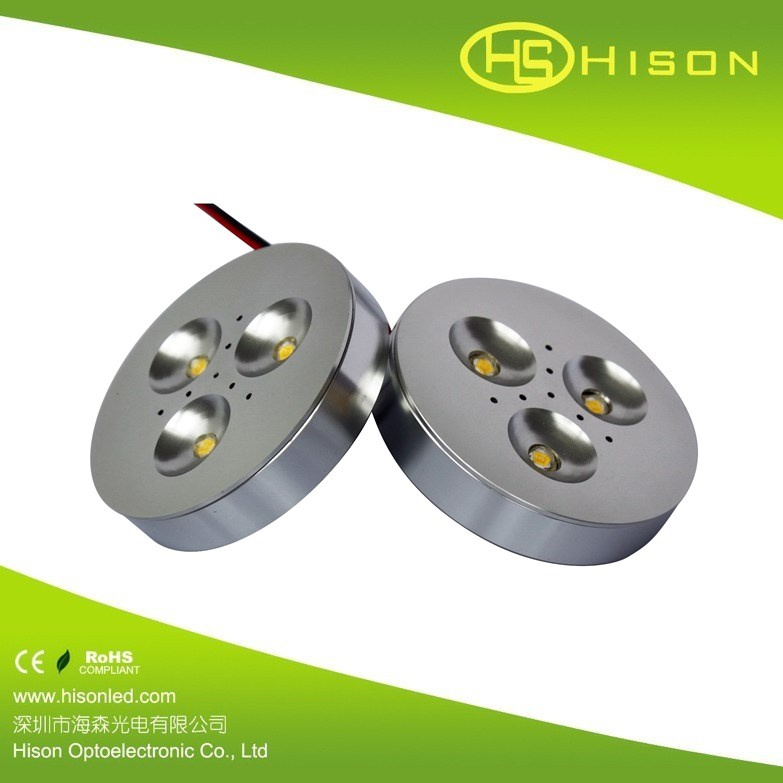

Name: LED Cabinet Light LED lighting LED Puck Light
Features:
1. LED puck light, LED cabinet light, LED light, LED lighting, LEDs, Cutting Aluminium housing.
2. High power LED with EDISON/EPISTAR/CREE chips. No Dazzling.
3. Reliable external driver
4. Low electricity consumption.
5. Installation: Mounting or recessed
Application of LED Cabinet Light/LED Lighting/LED/LED Light/lighting/led puck light/light:
1. Home Lightng, office lighting, display case lighting
2. Under cabinet lighting
3. Art lighting
4. Boat lighting, accent lighting
Optical Details of LED Cabinet Light/LED Lighting/LED/LED Light/lighting/led puck light/light:
Light source: 3PCS 1W high power, Epistar chip
Emitting color: RED/GREEN/BLUE
Max. Lumens per lamp:
75 lm/watt (red)
75 lm/watt (yellow)
85 lm/watt (green)
80 lm/watt (blue)
110 lm/watt (white)
95 lm/watt (warm white)
Luminosity: 120 Lux (2m distance)-white
Color temperature: Warm white 3000-3200K, daylight white 6000-6500K, Commercial white 4000-4500K
Beam angle: 30° /60°
CRI: 80~85 (white), 70~75 (warm white), 76~79(commercial white)
Lumen maintenance at 10, 000hrs: 95%
Average life time: 50, 000hrs
Electrical Details of LED Cabinet Light/LED puck light:
Input Voltage: AC 85-276V, 50Hz~60Hz
Operating Constant current: 350mA,
Operating voltage: 9.6V-10.8V
Max. Power consumption: 3.0 W
Operating driverconstant current: 350mA
Compatible with common anode RGB controlle: RAvailable
Dimmable: Yes
NumberDescription
RG2308-P03-M: Warm white, LED puck light 3X1watt, 350mA
RG2308-P03-W: DaylightWhite, LED puck light 3X1watt, 350mA
RG2308-P03-C: Commercial white, LED puck light 3X1watt, 350mA
RG2308-P03-R: Red, LED puck light 3X1watt, 350mA
RG2308-P03-G: Green, LED puck light 3X1watt, 350mA
RG2308-P03-B: Blue, LED puck light 3X1watt, 350mA
RG2308-P03-Y: Yellow, LED puck light 3X1watt, 350mA
RG2308-P03-R: GBR/G/B, LED puck light 3X1watt, 350mA
