Product Description

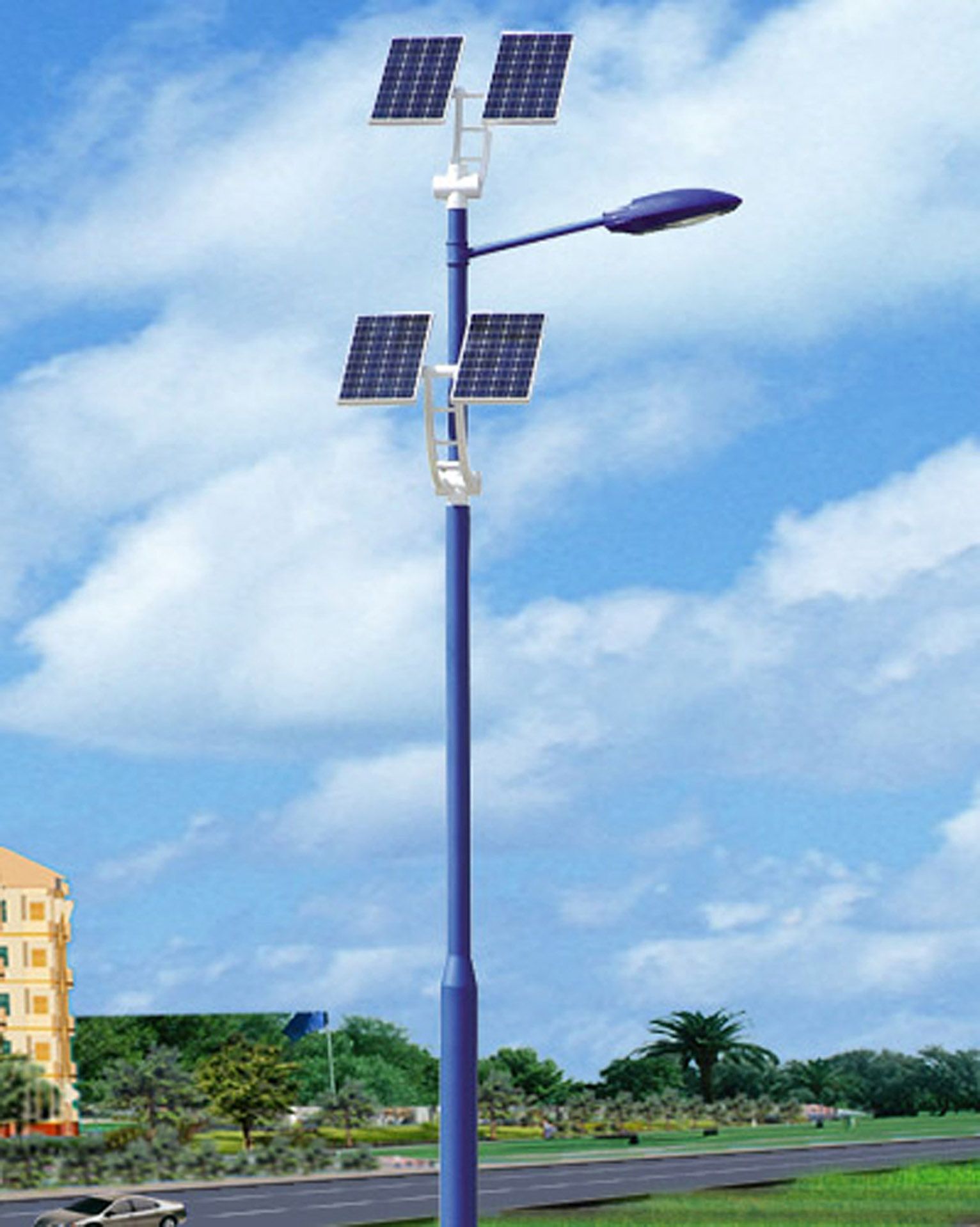

Solar Street Light Details
A GRADE high efficient solar panel
Mono: 18% convert efficiency
Poly: 17% convert efficiency
5 years warranty for solar panels
USA BRAND LED and Aluminum Section Bar Light Fixture
LED: BRIDGELUX/CREE
Long life time: 1W LED with 1 heat sink, fast heat dissipation makes it 100,000 hours long life time
STRONGER POLE with 20 years life time
Larger diameter: our pole is 10% larger in diameters
Thicker wall: we offer 0.25mm thicker pole than that of the market. For example, we offer 3mm thickness for 6m pole.
Bigger foundation kits: for example, we offer M18-20*1000mm bolts for 6m light.
Thicker zinc galvanization and painting: we offer 100 μm zinc.
TWO THREE TIMES rainy day backup waterproof controller
Rainy day backup: 2 times more rainy day backup, savings in battery
Combined LED driver and controller as one, easy to maintain
IP67: ideal for high humidity and dust areas
Energy saving mode: THREE periods of power adjustment available
All metal shell: high strength and fast heat dissipation, giving long life time
UL LISTED GEL battery
Long service life (1600 cycles @ 30% DOD)
Better Weather-ability (-20 ºC ~ 50 ºC)
Fully sealed construction
What is our advantage:
A. Quick delivery time
B. Safe packing
C. Professional container loading
D. Document assistance for custom clear
E. Insurance made for your company letter head
F. 5 years guarantee for products and technical support.
Installation Guide
a. Specification: | Can be customized according heights |
1. Certificates: | ISO9000, CE, ROHS,FCC, SGS |
2. Solar panel: | 1,Poly-crystalline |
2,Conversion rate>17% |
3,life span>25 years |
20W~480W(option) |
3. Battery: | 1,Maintenance-free Gel-battery. |
2,Battery life span: 5-7 years |
Location: top of pole, bottom of pole, underground |
Storage battery: 24AH~500AH(options) |
4. LED light: | 1,High-power LEDs. |
2,Luminous flux: 105+ 3%lm/w |
3,LED life span:>50,000 hours |
LED light: 28W~182W available |
5. Controller: | 1,Switch on/off by light & time |
2,Controller:>10 years |
Controller: 12V/10A,24V/15A,24V/20A |
6. Pole: | 3,Hot dipped galvanized steel pole. |
4,Q235.Pole:>20 years |
Pole: 2m~14m |
7. Charging time: | 1,Charging 4-4.5 hours. |
2,2~10 rainy days |
Running hours:4h~12h/day |
8. Wind resistance: | ≥130 km/h |
9. Working temperature: | -30°C~+70°C |
10. Protection grade: | IP 67 |
11. Delivery time: | 1~100units/15days, 100~500units/15-21days |
12. Payment Terms: | T/T Or L/C |
(The quality of whole set can be guaranteed 5 years) |
We can design the product according to your requirements. At the same time to provide the IES file as a reference.
Tianjin ET Technology Co., Ltd. is specialized in solar/LED street lighting, with 10 years experience of export and installation for solar/LED Street Light, solar power system. ET Technology provides design of solar lighting system for specific area, and after service of problem solution.
Our products are CE and RoHS certificated, we are renowned as one of China's leading providers of high quality.
Tianjin ET Technology offers a better economic and environmental choice to save energy and contribute to reduction of carbon emissions.
In 2016 Tianjin ET Technology enlarged the business scope to home decoration. ET Technology built new plant and workshop to print painting on ceramic tiles and glass as wall decoration. The painting content could be customized according to Clients' preference.
The pigment will be kept more than 10 years, no fade and no discolor.
