LED Bee Eyes Super Beam Light Moving Head Light
Price: |
US $ 130-160/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
6/Piece |
Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
The Newest LED Beam Moving Head 6pcs*15W disco light

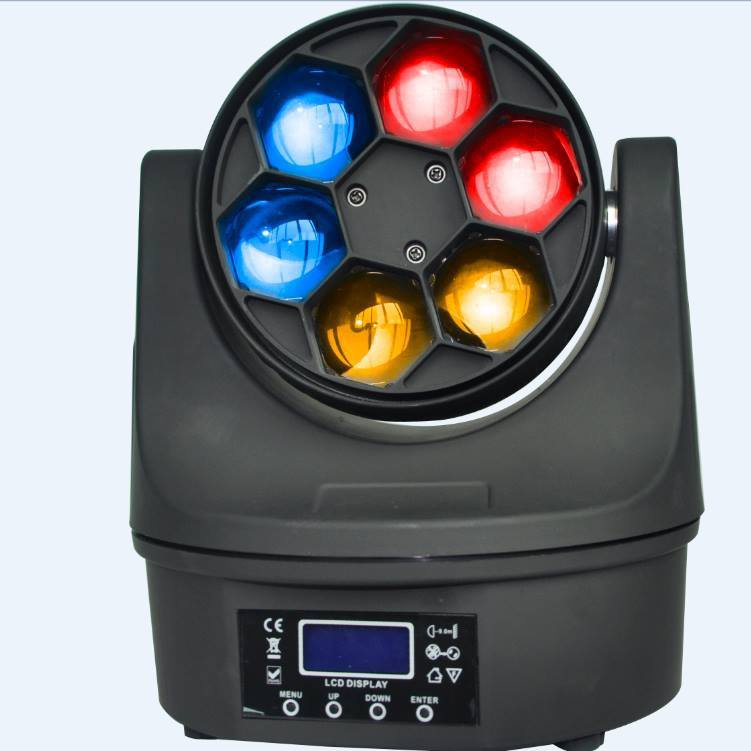

1. Diagram:
A B C D
A.Function
B.Up
C.Down
D.Confirm
E.LCD display
Operation Instructions: press button A, then the device will enter the circulation of 8 kinds of functions, the former two numbers on digital tube show that what function is working now (refer to function table). The latter two numbers show the address code of the current function or speed specification. Press button B or C, it will modify the value of specification. At last, if you want to confirm it, please press button D.
2. Function reference stable of LED display window(after choosing the function, press button D to confirm)
No. | Display | Function Instructions |
1 | Address Set up | DMX15 D: 001 | 15 channels,address code(001-512) button B/C increase/reduce the value of address code |
DMX12 D: 001 | 12 channels,address code(001-512) button B/C increase/reduce the value of address code |
2 | Aisle Set up
| Aisle Ch 12 | 12 channels Button B,C choose channel |
Aisle Ch 15 | 15 channels button B,C choose channel |
3 |
System
Motor Phase | X Phase Yes? | X Phase Positive | X motor positive/reverse button B,C choose |
X Phase Anti |
Y Phase Yes? | Y Phase Positive | Y motor positive/reverse button B,C choose |
Y Phase Anti |
Counting Yes? | Counting Open | Counting disk (open / turn off) button B,C choose |
Counting Turn off |
4 | High pole
Set up | X X Tune Set up | X Tune
D: 128 | X Motor correction button B,C choose |
Y Tune Set up | Y Tune
D: 128 | Y Motor correction button B,C choose |
F Tune Set up | F Tune
D: 128 | F Motor correction button B,C choose |
X trip Set up | X trip D: 50 | X Motor trip button B,C choose |
Y trip Set up | Y trip D: 50 | Y Motor trip button B,C choose |
X speed Set up | X speed D: 000 | X Motor speed button B,C choose |
Y speed Set up | Y speed D: 000 | Y Motor speed button B,C choose |
F speed Set up | F speed D: 000 | F Motor speed button B,C choose |
X force Set up | X force D: 000 | X Motor force button B,C choose |
Y force Set up | Y force D: 000 | Y Motor force button B,C choose |
F force Set up | F force D: 000 | F Motor force button B,C choose |
current R Yes? | current R: 000 | Red current button B,C choose |
current G Yes? | current G: 000 | Green current button B,C choose |
current B Yes? | current B: 000 | Blue current button B,C choose |
current W Yes? | current W: 000 | White current button B,C choose |
5 | Function Mood | Mood D: 1 | Choose effects automatically(1--22)button B,C choose 1--4:Jump change 5:Gradual change 6:Pulse change 7--20: Color selection 21--22:Sound control |
6 | Light Slave | Slave 15Eye | Slave |
7 | Light
Reset | Reset Reset Yes? | We are Reset... | Light reset Press the confirm button to reset |
8 | Recovery Restore | Restore Yes ? | We are Restore. | Recovery factory setting |
9 | Light Release | XF--10.0 | Release |
3. 15 channelsChannel | Value | Function |
1 | 0-255 | Open total dimming |
2 | 0 | No strobe |
1-255 | Strobe speed,from slow to fast |
3 | 0-255 | Red dimming,from dark to bright |
4 | 0-255 | Green dimming,from dark to bright |
5 | 0-255 | Blue dimming,from dark to bright |
6 | 0-255 | White dimming,from dark to bright |
7 | 0-255 | X Motor |
8 | 0-255 | Y Motor |
9 | 0-127 | Rotary motor (position) |
128-190 | Rotary motor(turn right,from fast to slow) |
191-255 | Rotary motor(turn left,from slow to fast) |
10 | 0-255 | X Fine tuning (16Bit) |
11 | 0-255 | Y Fine tuning (16Bit) |
12 | 0-255 | X/Y Motor speed from fast to slow |
13 | 0-5 | Not use macro function |
6-20 | Color selection (Motor controlled by 512) ) |
21-40 | Jump change (Motor controlled by 512) |
41-60 | Gradual change (Motor controlled by 512) |
61-80 | Pulse change (Motor controlled by 512) |
81-100 | Sound control 1 (Motor controlled by 512) |
101-120 | Sound control 2 (Motor controlled by 512) |
121-140 | Color selection (Motor self-propelled) |
141-160 | Jump change (Motor self-propelled) |
161-180 | Gradual change (Motor self-propelled) |
181-200 | Pulse change (Motor self-propelled) |
201-220 | Sound control 1(Motor self-propelled) |
221-255 | Sound control 2(Motor self-propelled) |
14 | 0-255 | Color selection,Jump change,Gradual change,Pulse change,adjust speed from slow to fast |
15 | 0-244 | Null |
245-255 | Reset after 13 seconds |
4. 12 channelsChannel | Value | Function |
1 | 0-255 | Open total dimming |
2 | 0 | No strobe |
1-255 | Strobe speed,from slow to fast |
3 | 0-255 | Red dimming,from dark to bright |
4 | 0-255 | Green dimming,from dark to bright |
5 | 0-255 | Blue dimming,from dark to bright |
6 | 0-255 | White dimming,from dark to bright |
7 | 0-255 | X Motor |
8 | 0-255 | Y Motor |
9 | 0-127 | Rotary motor (position) |
128-190 | Rotary motor(turn right,from fast to slow) |
191-255 | Rotary motor(turn right,from slow to fast) |
10 | 0-5 | Not use macro function |
6-20 | Color selection (Motor controlled by 512) |
21-40 | Jump change (Motor controlled by 512) |
41-60 | Gradual change (Motor controlled by 512) |
61-80 | Pulse change (Motor controlled by 512) |
81-100 | Sound control 1 (Motor controlled by 512) |
101-120 | Sound control 2 (Motor controlled by 512) |
121-140 | Color selection (Motor self-propelled) |
141-160 | Jump change (Motor self-propelled) |
161-180 | Gradual change (Motor controlled by 512) |
181-200 | Pulse change (Motor controlled by 512) |
201-220 | Sound control 1 (Motor controlled by 512) |
221-255 | Sound control 2(Motor self-propelled) |
11 | 0-255 | Color selection,Jump change,Gradual change,Pulse change,adjust speed from slow to fast |
12 | 0-244 | Null |
245-255 | Reset after 13 seconds |
5. Function Features:
Easy to operate, humanity designing, no flicker or jitter when dimming. Be suitable to be used when filming, taking photos or in TV station where has strict requirements about light.
6.Specifications:
Voltage:AC 110-220V 50-60Hz
Power:100W
Lighting source:6pcs 15w RGBW 4in1 Osram lamp
Color:RGBW mixing system
Channel:12/15CH
Control mode:DMX512,Sound control,Auto,Master-slave
Dimming:0-100% dimming
Display:LCD display
Function Features:
Easy to operate, humanity designing, no flicker or jitter when dimming. Be suitable to be used when filming, taking photos or in TV station where has strict requirements about light.
Prod Model: |
YG-M001 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Lighting Source: |
6PCS*15W |
Color: |
RGBW |
Power Consumption: |
100W |
Control Channels: |
12/15CH |
Lighting Control Mode: |
DMX512,Sound Control,Auto,Master-Slave |
Lighitng Control Signal: |
DMX 512 |
Display: |
LCD Display |
Dimming: |
0-100%Dimming |
Color Rotation System: |
RGBW 4 in 1 Rotation, Macro Color System |
Carton Size: |
26*27*35cm/5.7kgs |
Light Source: |
LED |
Material: |
Aluminum Alloy |
Emitting Color: |
RGB |
Control Channel: |
12CH |
Strobe: |
Adjustable Speed Strobe |
Control Mode: |
Dmx Signal Control |
IP Rating: |
IP20 |
Certification: |
UL |
Voltage: |
220V |
