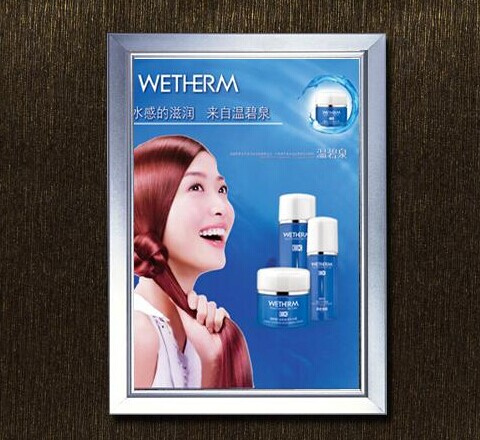

1. Material: Aluminium alloy profile, acrylic sheet for light guide panel, PVC bottom panel.
2. Light Source: High quality SMD, supply AC/DC adaptor, with the plug suit to different countries, input: 100 to 240V AC 50/60Hz, working on 12VDC.
3. Life Span of LED: Above 50, 000 hours,
4. Size: Any customized is ok(over 300mm, less than 3000mm)
Standard size as follow in the chart:
5: Application: Using in door, widely use in lift, hotel, restaurant, supermarket, mall, bakery, airport, station, stores etc.
6. Advantage: Energy saving, environment friendly, easy to change the poster and install.
7. Warranty: 1 year.
Model | Frame Size ( mm ) | Picture Size (mm) | Visible Size ( mm ) | Thickness | Weight (KG) | Power |
A0 | 1249*901 | 1204*856 | 1189*841 | Thickness15MM Cover Width 30MM | 15 |
|
A1 | 901*654 | 856*614 | 841*594 | 8 |
|
A2 | 654*480 | 614*440 | 594*420 | 6.8 |
|
A3 | 480*357 | 440*317 | 420*297 | 2.8 |
|
A4 | 357*270 | 317*230 | 297*210 | 2.1 |
|
Model | Frame Size ( mm ) | Picture Size (mm) | Visible Size ( mm ) | Thickness | Weight (KG) | Power |
A0 | 1249*901 | 1204*856 | 1189*841 | Thickness15MM Cover Width 30MM | 15 |
|
A1 | 901*654 | 856*614 | 841*594 | 8 |
|
A2 | 654*480 | 614*440 | 594*420 | 6.8 |
|
A3 | 480*357 | 440*317 | 420*297 | 2.8 |
|
A4 | 357*270 | 317*230 | 297*210 | 2.1 |
|
