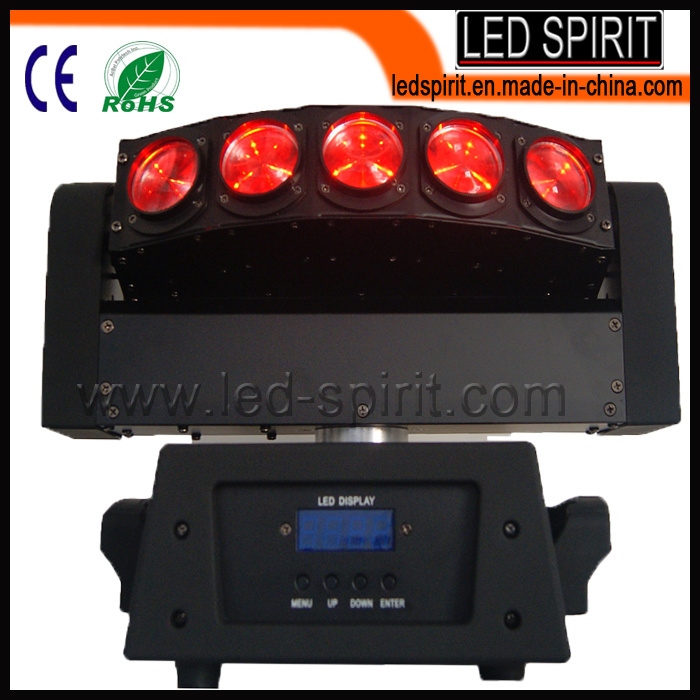

LED 5PCS Effect Disco Bar Moving Head Beam Light

LED 5pcs effect disco bar Moving Head Beam Light( LED-31B )

Product Description
5pcsx10w RGBW moving beam light adopt USA CREE LED , the fixture have very strong beam effect like a colorful fan dancing in the space . It apply high technical optical system , High efficiency software, Noiseless fan and Excellent heat exchange. The compact size is easy to transportation and installation .

Technical parameter
Model No: LED-31B
Input voltage: AC 110-240V 50HZ/60HZ
Power Consumption: 100W
LED lighting source: 5pcs RGBW 4 in 1 10w led
Control mode: DMX 512, Master -Slave, Sound Active, Auto Run
Channel: 14 / 30 optional DMX channel
Housing: High -temperature plastic, molded alloy ( Aluminum )
Waterproof grade: IP20
Beam angle: Liner beam light
Dimming: 0-100% beam can adjuatable
Rotate angle: Pan: 540 degree Tilt: 270 degree
16 bit software
Work Environment: Indoor
OEM: Yes
Warranty: One year

Delivery time:
Sample order, 3-5 working days, formal order, 10-15 working days.
Payment term: T/T, 30% deposit, 70% balance before delivery

Shipping Way:
-All the items will test before dispacth to ensure the item arrived in a good condition.
-We will ship by UPS, USPS, Fedex within 2-3 working days after received the payment. (about 2-5 days arrived to your door)
-Also ship by sea, air.

Application Field:
Professional stage, Theater, Club, , KTV, Bar, profession stage, large-scale performances, theater, studio and places of higher Disco etc.

14 channel

Number	Function	Description
CH 1	Level motor operation	(0-255)upward adjust  forward , downward adjustment inversion.
CH 2	Level motor fine-tuning	(0-255 Level motor 16BIT fine-tuning
CH 3	Vertical motor operation	(0-255)upward adjust  forward , downward adjustment inversion.
CH 4	Vertical motor fine-tuning	(0-255)Vertical motor 16BIT fine-tuning
CH 5	Motor operation speed	(0-255)upward adjust speed slow ,0 is the fastest speed .
CH 6	Total dimming	Red,Green,Blue,White total dimming ,  linear dimming,from dark to bright
CH 7	Strobe	(0-255) From slow to fast
CH8	Red dimming	Red dimming (0-255)Linear dimming,from dark to bright
CH 9	Green dimming	Green dimming ,(0-255)Linear dimming,from dark to bright
CH 10	Blue dimming	Blue dimming ,(0-255)Linear dimming,from dark to bright
CH 11	White dimming	White dimming ,(0-255)Linear dimming,from dark to bright
CH12	Built-in program	the first 9 channels operation (0-60);(251-255) Sound actived ,(246-250)Built-in program 30;(241-245)Built-in program 29;DMX more than 60, each additional 6 corresponding to a built-in program.
CH 13	Speed of built-in program	0-255upward adjust speed slow ,0 is the fastest speed
CH14	Reset	(0-244)No function ;(245-255)Reset

30 channel

Number	Function	Description
CH 1	Level motor operation	(0-255)upward adjust  forward , downward adjustment inversion
CH2	Level motor fine-tuning	(0-255)Level motor 16BIT fine-tuning
CH3	Vertical motor operation	(0-255)upward adjust  forward , downward adjustment inversion.
CH4	Vertical motor fine-tuning	(0-255)Vertical motor 16BIT fine-tuning
CH5	Speed of motor operation	(0-255)upward adjust speed slow ,0 is the fastest speed .
CH6	Total dimming	Red,Green,Blue,White total dimming ,  linear dimming,from dark to bright
CH7	Strobe	(0-255) From slow to fast
CH8	1 st  heads Red dimming	Red dimming ,(0-255)Linear dimming,from dark to bright
CH9	1 st heads Green diming	Green dimming ,(0-255)Linear dimming,from dark to bright
CH10	1 st heads Blue dimming	Blue dimming ,(0-255)Linear dimming,from dark to bright
CH1	1 st heads White dimming	White diming ,(0-255)Linear dimming,from dark to bright
CH12	2 nd heads Red dimming	Red diming ,(0-255)Linear dimming,from dark to bright
CH13	2 nd  heads Green dimming	Green dimming ,(0-255)Linear dimming,from dark to bright
CH14	2 nd heads Blue diming	Blue diming ,(0-255) Linear dimming,from dark to bright
CH15	2 nd heads White diming	White dimming ,(0-255) Linear dimming,from dark to bright
CH16	3 rd heads Red diming	Red dimming ,(0-255)Linear dimming,from dark to bright
CH17	3 rd heads  Green dimming	Green dimming ,(0-255)Linear dimming,from dark to bright
CH18	3 rd heads Blue dimming	Blue dimming ,(0-255)Linear dimming,from dark to bright
CH19	3 rd heads White dimming	White dimming ,(0-255)Linear dimming,from dark to bright
CH20	4 st heads Red dimming	Red dimming ,(0-255)Linear dimming,from dark to bright
CH21	4 st heads Green dimming	Green dimming ,(0-255)Linear dimming,from dark to bright
CH22	4 st heads Blue dimming	Blue dimming ,(0-255)Linear dimming,from dark to bright
CH23	4 st heads White dimming	White dimming ,(0-255)Linear dimming,from dark to bright
CH24	5 th heads Red dimming	Red dimming ,(0-255)Linear dimming,from dark to bright
CH25	5 st heads Green dimming	Green dimming ,(0-255)Linear dimming,from dark to bright
CH26	5 st heads Blue dimming	Blue dimming ,(0-255)Linear dimming,from dark to bright
CH27	5 st heads White  dimming	White dimming ,(0-255)Linear dimming,from dark to bright
CH28	Built-in program	the first 27 channels operation (0-60);(251-255) sound actived ,(246-250)built-in program 30;(241-245)built-in program 29;DMX more than 60, each additional 7 corresponding to a built-in program.
CH29	Speed of built-in program	0-255 upward adjust speed slow ,0 is the fastest speed
CH30	Reset	(0-244)No function ;(245-255)Reset
