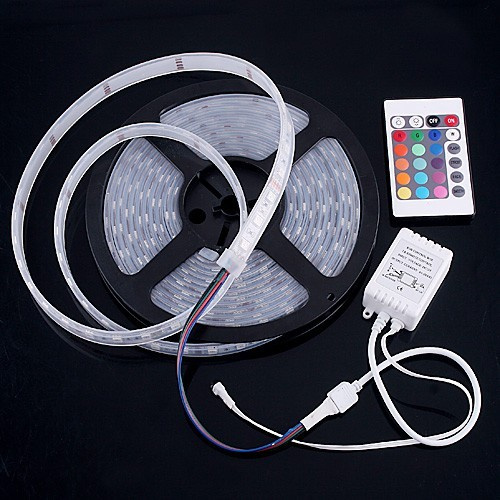

LED 5050 Strip Light
LED 5050 strip 30 LEDs 60 LEDs 120LEDs per meter the price is very competitive high output low cost with good quality
5050 LED Strip, 5050LED Strip Light
*120PCS LED/M, 5M/Roll;
*120 Degrees Viewing Angle;
*Environment Friendly, IP68 Waterproof
*5050 LED Strip, 5050 LED Strip Light, Waterproof LED Strip
Source Parameters:
LED Type: SMD 5050
LED Quantity: 30 PCS/m
Product Specifications: 5m/roll
Color: Red, green, blue, Yellow, white, cold white, RGB
LED Angle: 120 degrees
Service Life: 50, 000h
Applications:
1. Ad words, ultra-thin light boxes, light words, luminescent signboard backlights;
2. Buildings, bridges, signboards and other decorative outline;
3. High-end stores, shopping malls, home and other indoor lighting;
4. Cars, corridors, staircases, furniture, show windows and other decoration, hidden location and indoor dark trough lighting;
5. Bars, KTV, cafes, stages and other entertaining places atmosphere rendering;
6. Salons, handicrafts and other high-end counter lighting.
Features:
1. Using ultra-thin FPC as the substrate, it can be freely bent with the features of the thickness of only 0.2mm, small size, rich color.
2. Light source adopts SMD 5050 and a loop every 3 lamps can be used according to requirements of any cut for the tangent (The use of a 24V power supply, compared with 6 lights a loop). Or connection with every string up to 5 meters. The excess parts should be connected the lighting source in parallel.
3. With ultra-small size, width of only 10mm, 30 lights per meter, light, and power rate only 7.2 W, the standard length is 5 meters per roll, per roll of 150 lights.
4. Using DC12V safe voltage, non-waterproof series to paste 3M adhesive after the PFC board, protective layer can be torn to attach to any place for indoor; For waterproof series, two methods of epoxy (3M adhesive back stickers installation) or set tube (Snap installation) can be chosen for outdoor.
Packaging:
Appearance Package: Anti-static vacuum bag
Carton Size: 39 * 23.5 * 26cm
Color: Brass
Weight: 0.16KG/ Bags
|
Part NO. |
CT-SMD5050-60PCS-RGB |
|
Main Maretial |
LED + PCB |
|
Color of PCB |
yellow |
|
Dimension |
L5000xW10xH2.2mm |
|
Light source |
SMD 5050 |
|
LED QTY |
60 pcs/m |
|
Color of light |
RGB |
|
Beam Angle |
120° |
|
Power Consumption |
14.4W |
|
Working Voltage |
DC12/24V |
|
Operation Temperature |
-20 ° C to 40 ° C |
|
IP rate |
not waterproof |
|
Packing |
5 meters per roll |
Excelights LED Co., Limited is a professional manufacturer which specializes in manufacturing, developing and selling SMD LEDs and LED Lights since 2006. Excelights has acquired a reputation for product innovation and sales performance and supported a few customers covered U. K, US, Japan, Italy, Germany, Spain, Finland, Chile and some other countries.
We have several kinds of LED products which include SMD LED (3528, 335, 5050, 020 etc), LED strip lights, LED rigid bar, LED Tubes(T8/T10/T5), LED Bulb, LED Spotlight, LED modules, LED Downlight, Panel light, Grow Light. All of our products are warmly welcomed in most European and American markets.
Due to our high quality products, most competitive cost-performance, stronger production, advanced LED control technology and nice service system, Excelights has gain a high reputation both at home and abroad and become one of the most famous service-oriented suppliers in LED field in China.
We are committed to bringing efficient, reliable lighting to customers around the world. Excelights always pays much attention to customers' requirements and new products development. Our R&D team not only has rich practical operating experience, but also can help our customers to develop high quality new products with low cost.
Our mission is to bring the latest environmentally lighting products to the world; LED Lighting is bright, highly energy efficient, safe and friendly to the earth.
We believe in the policy of "quality is our life & service is our action", let us work together to make tomorrow more colorful. Excelights will offer the best quality and service to you!
