LED high bay is usually apply to factory, shopping mall, warehouse, parking lot, gas station. Stadium.
120W LED high bay can replace 250W fluorescent lamp.
150W LED high bay can replace 300W fluorescent lamp.
180W LED high bay can replace 400W fluorescent lamp.
Using led high bay can save at least 50% electricity and the life span of led high bay is 5 times longer than the life span of fluorescent lamp. Although the price of LED high bay is expensive, you can recoup the cost within 1.3 year. Save electricity, meet ROHS, CE approval, 2 year guarantee and made in Taiwan is our products' specialities. Take 120W led high bay for example, if you use 10 hours one day, the life span for fluorescent lamp is 2 years at most, but the life span for led high bay is 8 year at least. Protect our earth and reject nuclear power plant- Only LED High Bay can do it!

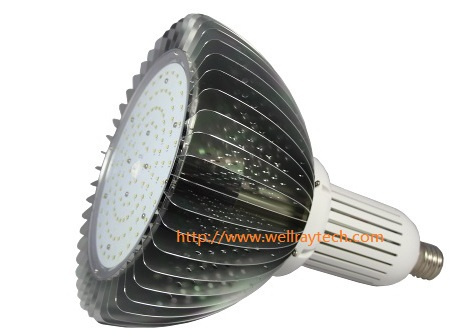

LED High Bay Series in 120W, 150W and 180W.
Product Feature:
(1) Universal input voltage from AC90~264.
(2) Pass 8000V Hi-pot and 4000V surge testing
(3) Constant DC working voltage during operation
(4) Power supply UL/TUV/PSE/CE/RoHS approval
(5) Applications: Indoor/Outdoor lighting use\factory\warehouse\stadium\parking lots\shopping mall.
(6) 2 years warranty
|
|
120W LED High Bay |
150W LED High Bay |
180W LED High Bay |
|
Voltage |
90~264 Vac |
|
MAX Voltage |
305Vac |
|
Current |
<1.2A±10% |
<1.5A±10% |
<1.8A±10% |
|
Frequency |
50 ~ 60 Hz |
|
Power Consumption |
120w ±10% |
150w ±10% |
180w ±10% |
|
Power Factor |
> 0.9 |
|
Protection Temperature |
> 95? |
|
Operating Life |
>50,000 hours |
|
Color Temp |
2700~3300 / 5300~6500 K |
|
Lumen Flux |
>12300 lm±10% |
>15400 lm±10% |
>18500 lm±10% |
|
CRI |
Cool White >75 / Warm White >80 |
|
Viewing Angle |
140 ° |
|
Weight |
3.2 kg |
3.5 kg |
3.5 kg |
|
Socket Type |
E39/E40 |
|
Operation Temperature |
-20~50 ? |
|
Storage Temperature |
-40~60 ? |
|
Operation Humidity |
10~90 % |
|
Warranty |
2 years |
Well Ray Technology Ltd. is started by a R&D team from optical, institutions, electronic fields. We focus on quality, innovation and efficiency. The most principle is to pursue high quality to meet customers' request. Well Ray's product lines has two groups- LED lighting and Car parts/accessories. We hope that Well Ray's products can not only bring more convenient to consumers' life but contribute to the Earth's environment. Thus, our goal is to design more energy saving in high quality and environmental protection products.
