Home LED Light Products Large Rental Outdoor Full Color Graphic LED Display Screen for Events

Large Rental Outdoor Full Color Graphic LED Display Screen for Events

Large Rental Outdoor Full Color Graphic LED Display Screen for Events
Price: US $ 1000/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 1000/Piece
Pay Type: L/C,T/T
Detailed Product Description





New Generation Outdoor Full Color LED Display SMD PH10mm With Wide View Angle


Product Details:


Special design aluminum module, special design aluminum cabinet, patented design, unique in the world, new generation LED display.

Really outdoor SMD LED display, 10 years R&D, over 30 patents, high waterproof level, super high brightness, high contrast ratio, high grey scale, high refresh rate, super vivid color, super wide view angle, super soft display, super even surface


Quick Detail:
1. Available models: PH10mm, PH8mm, PH6mm, PH5mm
2. high waterproof level, super high brightness, high contrast ratio, high grey scale, high refresh rate, super vivid color, super wide view angle, super soft display, super even surface
3. Light weight and easy to install
4. Perfect uniformity and no mosaic.
5. Lifespan is up to 100,000 hours.
6. Hanging structure design with gapless connection, quickly installation and dismantling


Description:

1. Light Weight
   40KG for one square meter.

2. Die Casting Materials
    Aluminum alloy

3. Slim Design
    one cabinet size is 960mm x 960mm or any size you want on condition of integral multiple module size.

4. Easy Installation
    An average worker can install more than 70 cabinets within one hour W/O tool.



Applications:

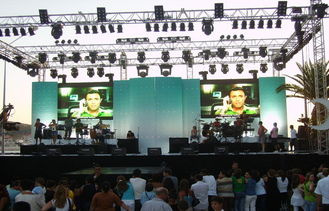

Commercial advertising, mobile media, night club, entertainment events, business establishments, such as
banks, stock exchange centers, bus station, schools, telecommunications, customs, stadiums, studio, shopping malls, railways, airports, harbors, etc;


Specifications:


Model No.

GS8-RE-2S-PH10

Pixel Pitch

10mm

Module Size

160*160mm

Module Resolution(pixels)

16*16

Cabinet Size

960mm×960mm

Panel Resolution(pixels)

96×96

Pixel Configuration(RGB)

SMD 3 in 1

Pixel Density(pixels/)

10000

Brightness(cd/)

8000

Best Viewing Distance(m)

6-100

Average Power Consumption(W/)

600

Waterproof Level

IP65

Vavelength

R 620-625 G 520-525 B 470-475

LED SPEC

3129

Viewing Angle

140°(H)/140°(V)

Operating Tempreture

-40~80°C

Video Frame Rate(Hz)

≥ 60HZ

Display Refresh Rate(Hz)

≥ 2000HZ

Grey Level(colors)

16.7million

MTBF

≥50,000 hours

Lifespan

≥100,000Hours

Working Voltage

220V±15% OR 110V±15%

Drive Mode

Constant 1/16

Graphics Card

DVI Graphics card

Video Signal

RF, S-Video, RGB, RGBHV, YUV, YC, etc.

Control System

LINSN

Software

LED studio 10.0

Installation

Wall mount, hung and stand structure



4. Methods for Quality Assurance

a. Aging
1. 100% fully test
2. Condition: 72 hours with 256 grey level

b. Vibration Testing
Condition: 3-5 mins up and down in 5mm range

5. Factory Equipment

Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.

6. Package

Flight case and Fumigation-Free wooden case

7. Control System Connection

  GETRON Controls system

8. Competitive Advantage:

1. We do packaging LED chip in our own factory,
2. more than 20 patents for really outdoor SMD LED screen.
3. 2 years warranty with free repair service
4. 24/7 Hours online Remote Support
5. Solution and PCB design
6. Free factory training or engineer support in the spot.
7. Onsite installation instruction and regular inspection


Prod Model: GS8-RE-2S-PH10 Sun Version
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Aluminum Module: Strong Waterproof
Heat-Dissipation: Lighter and Thinner Than Others
Display Type: LED Video Display
Tube Chip Color: Full Color
Pixel Configuration: 1R, 1G, 1B
Certification: CCC
Pixel Pitch: 10mm
Display Function: Video Display
Application: Stage Performance
Scanning Mode: 1/4 Scan
Pixel Density: 10000 dot / m²
Average Power Consumption: 600W / m²
IP Rating: IP68
Shenzhen great tech LEDs Co., Ltd is an A to Z solution provider of aluminum module outdoor SMD 3-in-1 RGB LED video display, LED screen, Digital Billboards, LED signs, LED signages, Electronic LED display, LED rental display system for Sports, Commercial, Rental and Entertainment, plus outdoor LED Lighting and Decoration. GTLLED creates unrivalled value through R&D, design, packaging, production and marketing of innovative hardware and software products leveraging all aspects of its vertically integrated industry chain, from LED lead-frame, SMD LED packaging, LED lamps, all aluminum shell LED modules, LED tiles, LED display screens, control systems to display installation. GTLLED delivers stunning LED solutions satisfying the most stringent customer requirements.

Established in 2006, GTLLED has been reinventing the way you display. We designs, manufactures, sells, and services of outdoor SMD3230 full-color electronic display, programmable display systems and large screen video displays. It' S our passion to continuously provide the highest quality standard outdoor displays as well as custom-designed and integrated systems.

GTLLED maintains its position as a leader in the outdoor SMD LED video displays industry by overcome a lots of technical difficulties on LED packaging, LED module and LED cabinet structure & launched the pixel pitch 8mm and 10mm Aluminum SMD Outdoor LED video screens to the market. With revolutionary LED SMD core encapsulation technology, the customers could appreciate the aluminum metal surface cooling modules and six outdoor display cabinet perfect interpretation, creating a new era of the SMD outdoor display technology. Ahead of March, 2014, GTLLED will refresh its SMD outdoor lineup with BHD-black face high definition P6 outdoor SMD LED video display slashing the price of SMD outdoor RGB LED display in the market. It will turns you on in its high definition, high contrast, high brightness and is your best choice for outdoor advertising media.
