Usage: It is suitable for coal mine, mineral industry, tunnel projects, construction and maintenance for power, communication, highway, railway at night, night lamp for cutting off rubber plant and absorbing mucus and for lighting a flood, rescuing and marine use.
Certificate:
1. Quality Management System Certificate No: GB/T19001-2000 idt ISO9001: 2000
2. CE Declaration Of Conformity No: 2007-C269-LVD
3. Explosion-proof Certification Of Compliance No. KD06250, KD06251
4. GB7957-2003: General safety
5. Performance request for cap lamp.
6. MT927-2004: KL type cap lamp.
7. EN62013, EN620
Kl2.5LM Technical description:
Battery (Lithium ion)
It adpot new styled lithium ion battery which is with over-charging, over-discharging and a short circuit protection fuction. Every battery cycled lifetime is more than 500 times. It has 75% rated capacity after using 500 times. It's a newest environmental protection battery.
LED: It adpot 1W high-power LED, The life is more than 50000 hours. Illumiance is more than 3000lux/30lm, it adpot two sets of light source, one is main - six auxiliary light source or main-axiliary in one. When main light source lose function, pls turn a switch axis into auxiliary light source then it go into work normally(This is for meet an emergency)
Charger(Lithium ion):
It adpot isopiestic pressure current limiting charging way. It's setting value volatge is 4.2V(normal charging voltage is 4.2V). When charging max current is 1A and voltage approachs to 4.2V, charging current will reduce gently. When battery''s voltage is 4.2V and current is less than 100A, the indicator light will display green color. This mean that miner's lamp can be used normally. When it's charging, the indicator light will display red color.

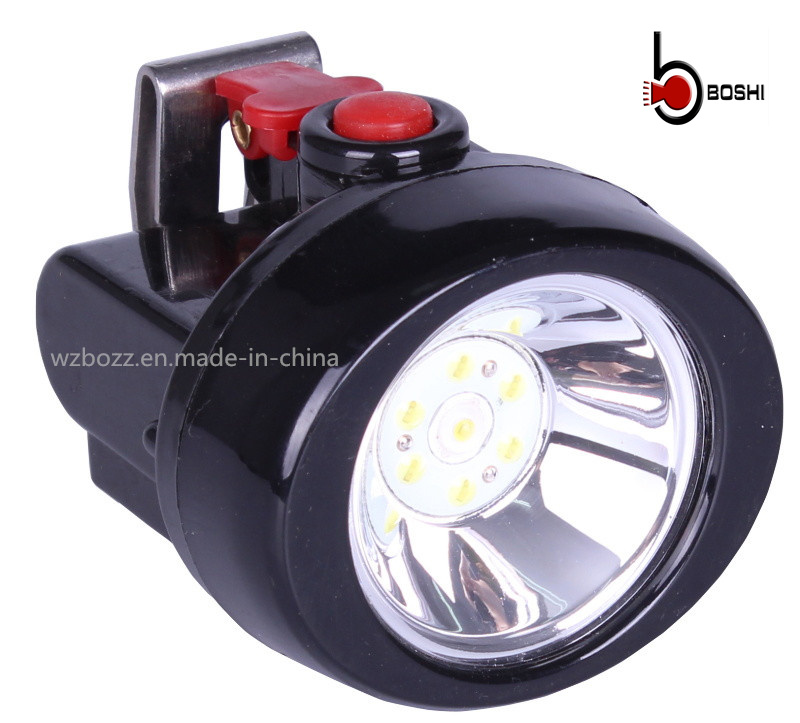

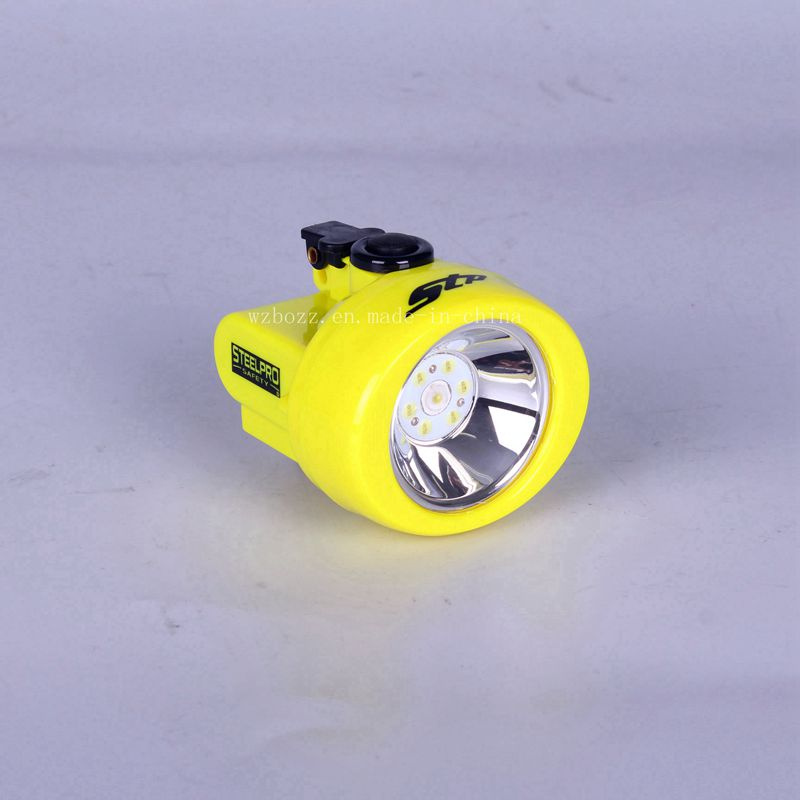

KL2.5LM LED coal mine wireless rechargeable mining light miner lamp headlamp caplampMain technical parameters:
| KL2.5LM | V/ah | Data |
| Lithiunm ion battery | times | 2.2 |
| Nominal voltage | V | 3.7 |
| Nos of battery cycle | times | more than 800 |
| Power | W | 1 |
| Main light source | mA | 300 |
| Auxiliary ligth source | mA | 110 |
| LED begin lighting | Lx | 4000 |
| LED lighting 11h | Lx | 3200 |
| Lighting time | h | more than 15 |
| Weight | g | 130 |
| Carton packing | PCS/CNT | 60 |
| Packing size | cm | 44*32*40 |
