IP65 Waterproof 30W Flood High Bay Light LED CE RoHS| Item number | AL-P-30WN | AL-P-60WN | AL-P-60WO |
| LED power | 30W | 60W | 60W |
| Luminous flux | 3900 | 7800 | 8400 |
| Input | AC160 ~260V
50/60HZ | AC160 ~260V
50/60HZ | AC160~260V
50/60HZ |
| Power factor | >.0.95 | >0.95 | >0.95 |
| Driver efficiency | 90% | 90% | 90% |
| LED TYPE | 5730 | 5730 | OSRAM OSLON |
| (CRI )Ra | 80 | 80 | >70 |
| (CT) K*** | 4000~6300 | 4000~6300 | 4000~6300 |
| Viewing angle | 120` | 120` | 70` |
| IP class | IP65 | IP65 | IP65 |
| Work Temp (ºC) | --40~+40 | --40~+40 | -40~+40 |
| Size(mm) | 457x136x32.5 | 457x136x32.5 | 457x136x32.5 |
| Weight(g) | 1600 | 1600 | 1600 |

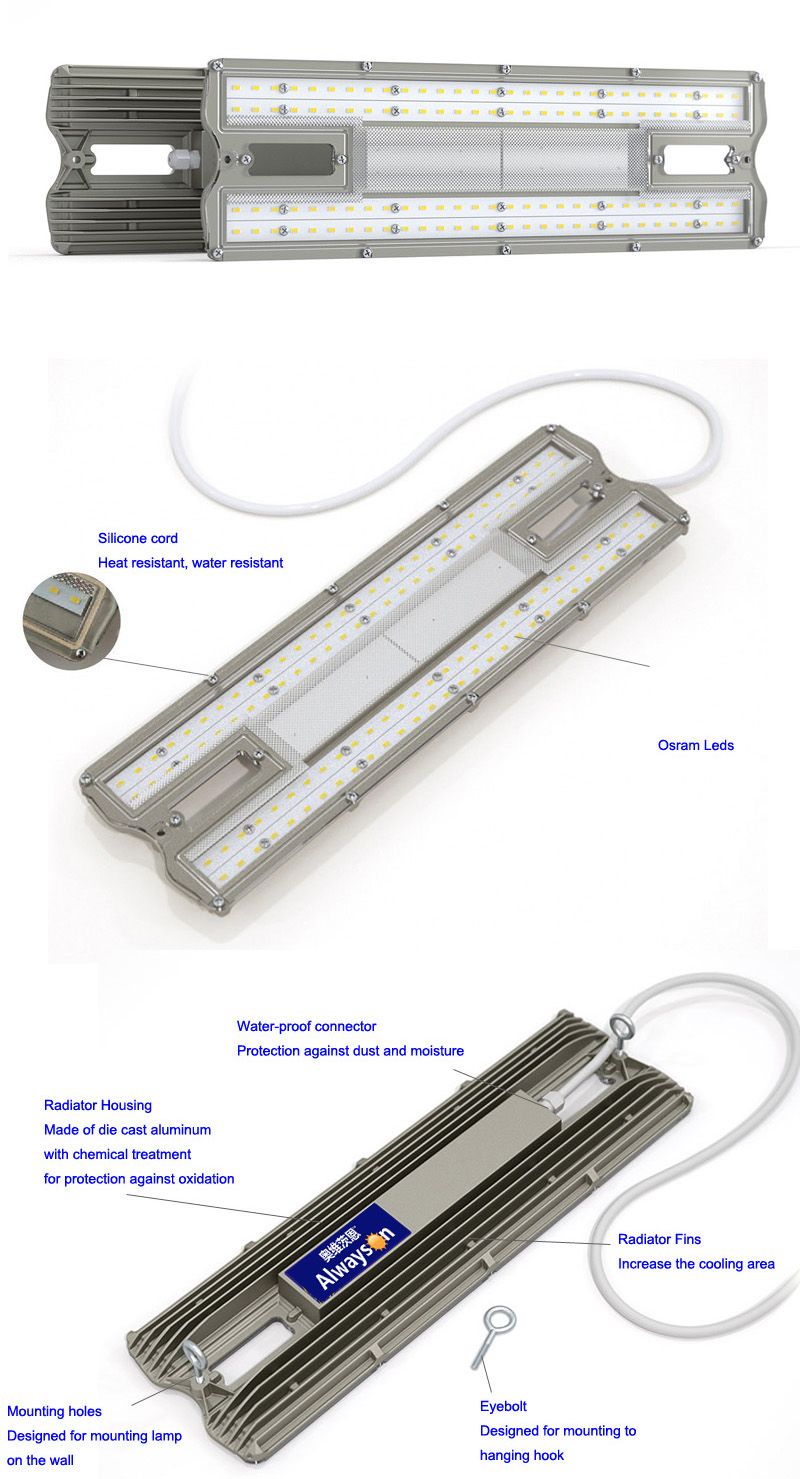

LED Flood Light Features1: Basing on Osram LEDs from Germany Duris E5 series (for 30W and 60W)
Oslon SSL Series (for 60W)
Osram Led is the best choice for us.
Luminous flux up to 130LM / W(CR7P 150LM/W)
L70 life ≈100,000 hours
2: Aluminum Die-cast housing with heatsink Special electrooxidation surface treatment
A:light wight
B:good corrosion resistance
C:good heat dissipation
Glass is made of PC material, upto 88% light transmission
3: Inside A:ultra-low thermal resistance Aluminum PCB Plate
B:solder paste is tin-silver alloy
C:Isolated constant current drive,low ripple factor,multiple protection,long service life of 50,000 to 80,000 hours,
4: Simple but reliable sealing system waterproof up to IP65
5: the introduction of a standard PG7 connector , N + L + G three-line input
Ningbo Deru Lighting Technology Conpamy is be founded in 2011.
And Our purpose is creating value for customers, saving energy for the society,
We focus on developing, producing professional and efficient LED lights.
The main products of us are LED floodlight, LED street light, LED tunnel light, LED high bay light, LED explosion-proof light, LED down light and other indoor lights.
We are developing with Russian and Germany Partner together, Currently, we have Turtle/Skat series Flood light, Mini Bat and Bat series Street light, Webstear high Bay light, and Round series Downlight.
All of these light are unique and high quality, reliable performance, and are all our patented products.
90% Light products of us are sold to oversea market, most customers are from Europe and America,
Our company continue to progress, actively tracking the market demand, constantly develop new products, and as a OEM manufacturer, we can customize unique lighting product for customers.
