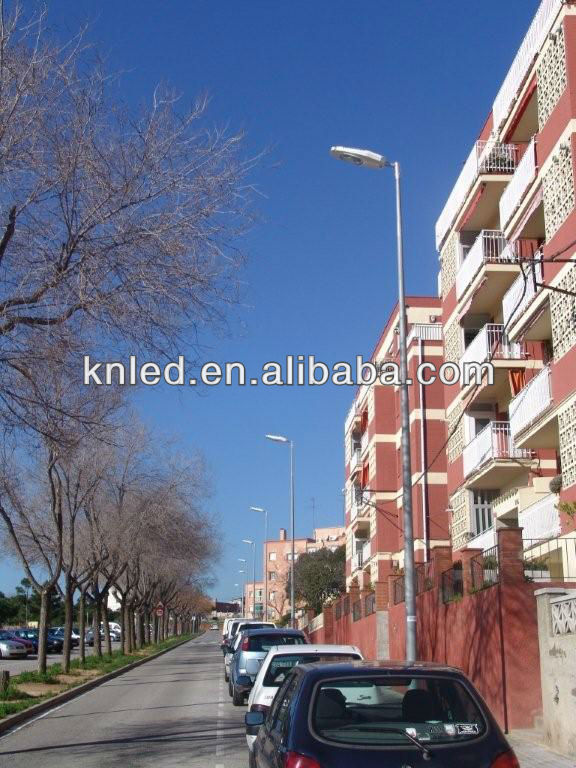

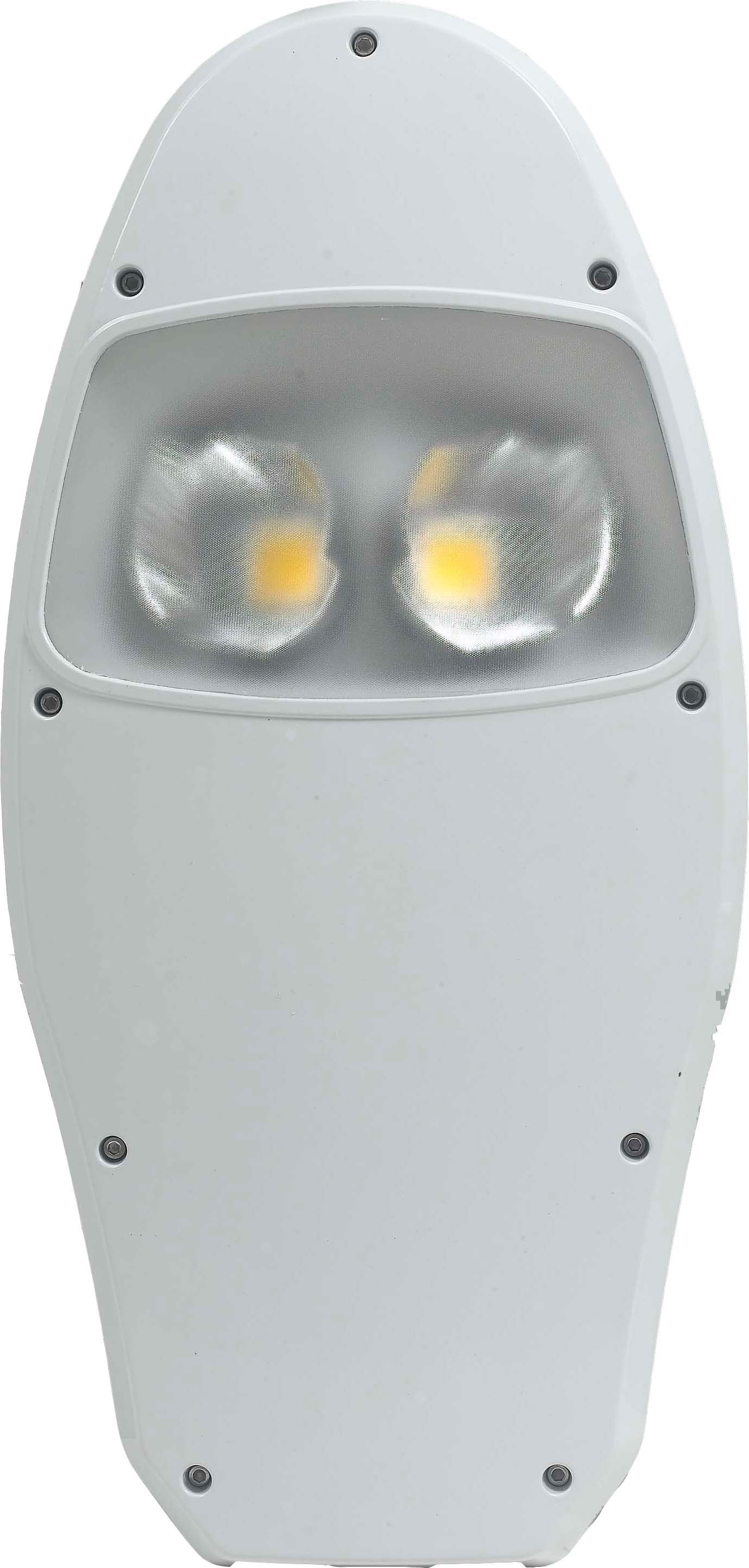

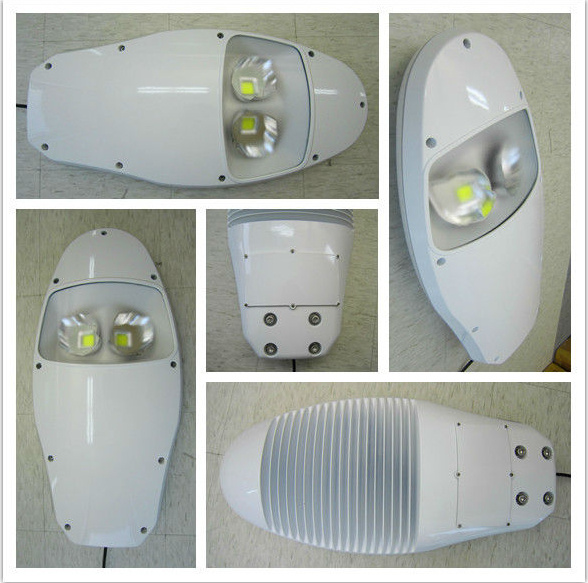

1: SL-760-100W street light is a green product of our company, with new type integrated LED light source, high purity aluminum plating reflector, high thermal conductivity aluminum lamp shell and radiating body, High strength toughened glass cover, high efficient constant pressure constant current; Compared with the traditional street light, KNSL-760-100W has lots of unique features, such as more efficient, energy-saving, more security and environmental, long lifespan, quicker response and higher CRI. KNSL-760-100W could be used in the street, square, city, scenery area and so on. It will be the best to replace traditional high pressure street light, besides, it's also the best choice to light Square, school Personal garden and so on
2:
Input Voltage/Frequency /100-240VAC/50-60Hz
Input Current(Typ) ()0.96A/115VAC 0.48A/230VAC
Output Voltage 28-36V
Output Current 3.1A
Efficiency(Typ) ()90%
Power Factor(Typ) ()PF>0.98/115VAC PF>0.95/230VAC
High power LED flood light 10W PIR with USA bridgelux LED.
The advantage of our company as follows:
1.16 years experience of LED lights;
2. Three factories, they are LED encapsulation factory, indoor lights factory and die-casting factory;
3. High quality and better after-service;
4. Experience of 3-8 years long term collaborating with foreign group companies;
5. Professional team.
Contact: 18938973831
|
Input Voltage/Frequency |
100-240VAC/50-60Hz /DC24V |
|
Input Current(Typ) |
1.75A/115VAC 0.87A/230VAC |
|
Output Voltage |
28-36V |
|
Output Current |
6A |
|
Efficiency(Typ) |
90% |
|
Power Factor(Typ) |
PF>0.98/115VAC PF>0.95/230VAC |
Lighting parameters
|
LED Chips Quantity |
2pcs |
|
LED Consumption |
100w |
|
System Consumption |
108W |
|
LED Luminous Efficiency |
90-110Lm /W |
|
Lamp's Initial Flux |
8500Lm |
|
Color Temperature |
2700K~7000K |
|
Lamp's Luminous Efficiency |
≥80Lm /W |
|
Lumen Maintenance |
70%(50000Hrs) |
|
Color Rendering Index |
Ra≥70 |
|
Operating Temperature |
-25~+55 |
|
Storage Temperature |
-25~+65 |
|
IP Grade |
IP65 |
|
Life-span |
50000Hrs |
|
Materials |
Aluminium |
|
The color of the lamp shell |
White |
|
Mounting |
Pole installation |
Shenzhen Kena Industry Co., Ltd. is a leader in the high-tech design, R&D and manufacture of LED encapsulation, project lights and aluminum casting for lamp fixtures. With our semiconductor lighting technology, we aim to provide our customers with high efficiency, energy-saving and stable encapsulated LEDs, as well as the perfect design for a wide variety of needs. Our encapsulated LED product line uses DIP LED, SMD and high power LED technologies. Our various products range from street lights, flood lights, spot, high bay and tunnel lights, as well as tube, strip and ceiling lights all the way down to a basic LED bulb. We also design, produce and process related products and made-to-order encapsulated LEDs.
Kena, with innovation and R&D at its core, believes that providing professional LED lighting solutions is its duty. The Kena brand has benefited greatly through its leadership in LED manufacturing and advances in independent intellectual property, following many years of development and interacting closely with customers. Kena has researched and designed LEDs to meet and exceed market demands. With LEDs rapidly becoming the much-needed replacement for traditional incandescent lamps, Kena's cost-effective manufacturing process allows competitive prices for competitive customers.
Kena is known for its ability to innovate in the LED industry; Its strong brand image; Complete industry chain advantage; Advanced production and business cooperation experience; And its professional, scientific and operational management teams. Together these advantages allow for efficient, energy saving, and stable encapsulated LEDs and LED projects lights for our customers, and allowing investors to feel confident in consistently strong returns.
