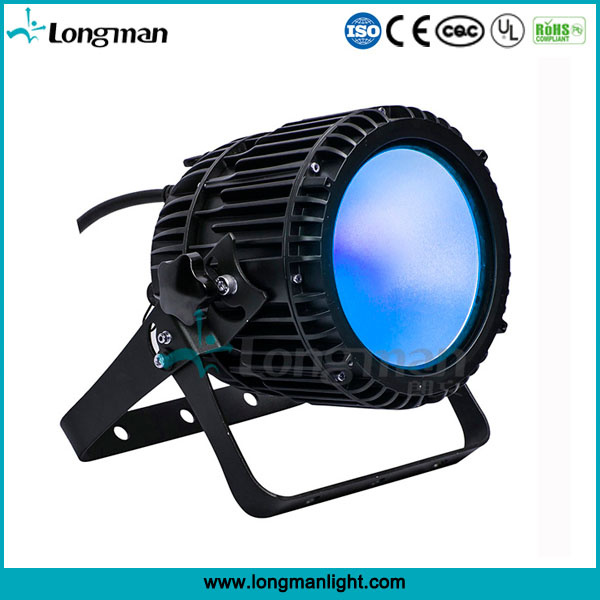

Ip65 rgb 80w led outdoor flood light(Unicorn BM80)
Specification:
1. Power input: AC 100-240VAC, 47-63 Hz, Output: 48V DC, Power Factor>0.7
2. Rated Power: 100W, Typical Consumption 82W/220V
3. Light Source: 1pcs*80W FULL RGB LED meet ZHAGA standard, R=625nm, G=525nm, B=450nm, good saturation; Perfect color mixing
4. Light Output: 2880 Lumens, Luminaire Efficiency 35lm/W
5. Field Angles(10%): 132° , Light beam(50%)70° , 233Cd/Klm, 668Cd on axis, Optical accesories available at 15°
6. Color mixing index: Standard deviation of Chromaticity SDC<0.005
7. Control signal: Meet E1.11 - 2004 USITT DMX512-A, 32 bit precise dimming, Dim 4 smooth in low DMX Value dimming, no vision shock
8. Control: Master and slave, DMX Channels 3CH/4CH/8CH
9. PWM frequency: >600Hz flicker free, Flash Rate Endurance Full Load: >12Hz Full load/void load flash
10. Cooling Method: Natural Convection and IP65
11. Housing color: ADC12 Standard Matte Black, could customized others.
12. Thermal protection: NTC overheat protection balance at light board 80º C
13. Connectors and Cables: IP67 Male/Female for fixed application IP65 Blue/Yellow connetor without cables for rental
14. Safty: Class II, 3C 2.5mm2 VDE cable, Flame Rating V-1, Protect Rated IP65.
15. Accessories: Barndoor, Hook, Safty Cable, Signal Extesion Cable, Power Extesion Cable
16. Soldering technology: 180º CReflow Soldering, makesure 15000 hours Longevity for SMPS and mainboard
17. Size: L*W*H=265*209*286mm
18. Weight: 3.2KG, with double yoke.
19. Operating temperature: -20º C - +55º C
20. Cerficated: Product pass CE, Rohs, SMPS pass CQC or UL60950, UL8750.
Features:
Patent new lamp body, deep enough to acomodate COB Reflector, offering perfect color mixing
Touch LED display, no easy broken buttons, 2minutes no operation no display
High power leds 80w entegrated capsulated Full RGB, 2880Lumens output.
Field Angle standard 132° , could choose other wider angle, and also barndoor.
Could wash flood and keep 90Lux at 10M on axis, offer even color by SDC<0.005.
Dim 4 Square law dimming for 0-100%, 600Hz PWM video flicker free
NTC temperature control system inside, MCU reduce the power output when LED working temperature is too high;
With waterproof air valve to balance pressure, get rid of mosuisture on glass innerface.
LED Display board shows DMX signal, LED Display turn off 2 minutes no operation.
Flood light from China professional flood light manufacturer.
If you have specific paraments and requirements for our flood light, customization is available.
