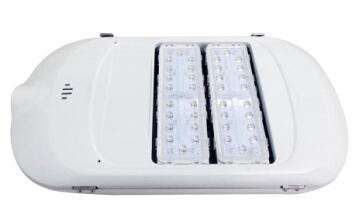

IP67 Modular LED street light 60W with Philips LEDs
Features:
1. Modular pluggable technology, tool-free onsite maintenance
2. Honeycomb briquette burning effect and the whole structure
3. Double-coupling IP67 protection, higher waterproof level
4. Multi-circuit constant-currecnt driver, single module hot pluggable
5. Ergonomic light distribution to achieve even illuminating effect
6. Free serialization and various power solutions
available.
Specifications:
Model | RFSET1/LD-A2-060W |
Input Voltage | AC90V-305V |
Frequency Range | 50-60Hz |
Total Harmonic Distortion | ≤9% |
Beam Angle | 120° |
Power Factor | ≥0.9 |
Color Temperature | WW(2700~3200K) | NW(4000~4500K) | CW(6500~7000K) |
CRI(Ra) | >70 |
LED Quantity | 1PC |
LED power | 80W |
LED Luminous Efficiency | 90lm/W |
Lamp's Efficiency | >91% |
Pole Diameter (mm) | 57-63 |
Working Temperature | -40°C-+50°C |
IP Grade | IP65 |
Lumen Attenuation | <5% @ 5,000hrs |
Light Design | Aluminum + LED Light Source |
Color Of Lmap Shell | grey ; Whilte |
Weight:G.W | 5KG |
Packing Size | 1pcs/Carton (595*375*175mm) |
Application of LED outdoor lighting:
The lights mainly applied in High way, city main street, slip street, fast lane, residential street, municipal roads, gas stations, parking lot,
parks, yards, inhabitancy area, factories and some other places where need lighting.
More information on LED street light series:
Model | Power | Voltage | Luminous Flux | CRI | Power Factor | Power Efficiency | Lifespan | IP Rating | LED Chip | Body and Shell Material |
RFSET1/LD-A2-040W | 40W | AC90~305V 50~60Hz | ≥3600Lm | >70 | > 0.95 | ≥91% | 50,000H | IP67 | Philips-Lumileds | Aluminum Alloy |
RFSET1/LD-A2-060W | 60W | AC90~305V 50~60Hz | ≥5400Lm | >70 | > 0.95 | ≥91% | 50,000H | IP67 | Philips-Lumileds | Aluminum Alloy |
RFSET1/LD-A2-080W | 80W | AC90~305V 50~60Hz | ≥7200Lm | >70 | > 0.95 | ≥91% | 50,000H | IP67 | Philips-Lumileds | Aluminum Alloy |
RFSET1/LD-A2-120W | 120W | AC90~305V 50~60Hz | ≥10800Lm | >70 | > 0.95 | ≥91% | 50,000H | IP67 | Philips-Lumileds | Aluminum Alloy |
RFSET1/LD-A2-200W | 200W | AC90~305V 50~60Hz | ≥18000Lm | >70 | > 0.95 | ≥91% | 50,000H | IP67 | Philips-Lumileds | Aluminum Alloy |
