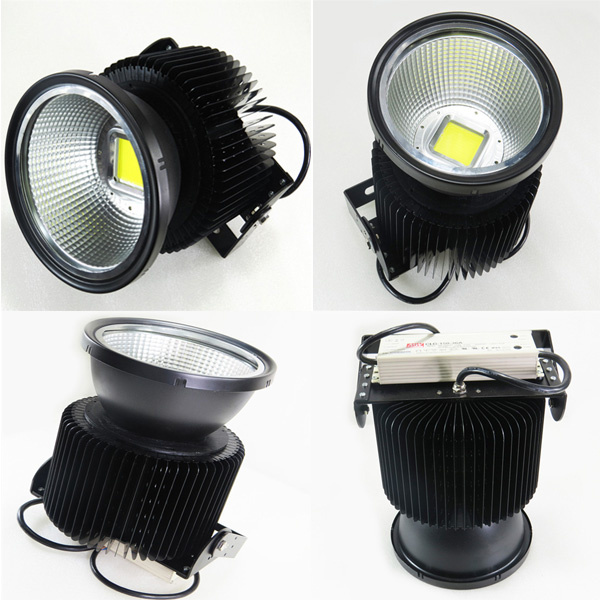

IP65 Industrial COB 200W LED High Bay Light Kit
1. Main Parameters
Power: 100W/150W/200W/300W/400W
Chip: Bridgelux (45MILx45MIL)
Certification: CE&RoHS
LED Driver: Meanwell
IP Grade: IP65
2. Feature
* Protection level: IP65.
* Fin Heat Sink Design: The high bay lighting is with pure aluminum heat lamps fitted with ultra-thin overall welded to ensure rapid heat conduction while using fins and air convection cooling, to achieve the best cooling effect.
* Bridgelux 45MIL Chip: The high bay lighting adapts Chip with 1-5W power and integrated light source, effectively ensuring the brightness.
* Condenser Cup: The high bay lighting adapts built-concentrating Cup highlighted with light, light uniformity, so visual effect is more moderate.
* Meanwell Driver Configuration: The high bay lighting is with well-known brands Meanwell Power CLG150W-48A, more stability and strong power.
* Anti-glare Effect: The high bay lighting can reduces glare, highlights the overall space lighting and improve the overall brightness of the railway/carport/warehouse/garage etc.
3. Application
1) Warehouse
2) Sport Fields
3) Parking garages
4) Factories
5) Stadiums
6) Grocery stores
For any further information about our IP65 Industrial COB 200W LED High Bay Lighting, just be free to contact me.
IP65 Industrial COB 200W LED High Bay Light Kit |
Power | 100W/150W/ 200W/300W/400W | Size | 260x260x320mm |
Housing Material | Aluminum Alloy | Color Temperature | 3000K-6500K |
Lumens | 100-110lm/W | Power Factor | > 0.95 |
LED Chip | Bridgelux | Chip Model | 45MILx45MIL |
Working Temperature | -20° C-50° C | Weight | 5.5kg |
Insulation Grade | I | Corrosion-Proof Grade | WF2 |
Cable | 8-14 mm | IP Grade | IP65 |
Application | Warehouse,Industry, Garages | Voltage | AC85-265V |
Warranty | 2 Years | Lifespan | ≥ 50, 000 hrs |
Shenzhen Victory Lighting Co., Ltd. Consists of a team of researchers who have undertaken the energy-saving application study for a long time and technicists of manufacturing lamps and lanterns.
Shenzhen Victory Lighting commits itself to apply the latest light source, new technique and new material into lights business, provides a variety of moveable or fixed energy-saving lamps and lanterns by itself and offers the best and efficient service. Victory' s products are used in the area ranged from electric power, railways, public securities, fire protections, police offices, metallurgies, coal mine, petrochemical industries, oil fields, armies to other industries.
Victory Lighting is identified as a servant enterprise of Energy-Saving Lamps and Lanterns. It takes being professional, honest, speedy and practical as its tenet; Its will is people foremost and meeting customers' needs; Its goal is highly serve for our clients; Its reputation bases on perfect quality of its products and it has scientific managements. So Victory is ready for becoming a modern sustainable development company in shareholding system.
As serving agent, we all take the responsibility of saving energies for society and reducing costs of ourselves. Today, the lack of energies becomes heavier and heavier. So with the saying of an advocate to save energies in publics, we also devote ourselves as much as possible; And we focus on the services in all business. Not only can we provide the services from pre-producing, middle producing to after services, but also services with personalities on light's scheme, lights' projects or energy-saving scheme are satisfied to our customers.
Board of directors, board of shareholders, board of supervisors and staff committee are established here. The operating team consists of a general manager, majordomo, suboffices and divisional managers. Its departments include marketing departments, quality control departments, agents, general accounting departments, human resource departments, administration depts., R&D and PD.
According to the ISO9001: 2000, Woye strictly and completely management of products' quality and services.
