Specifications:

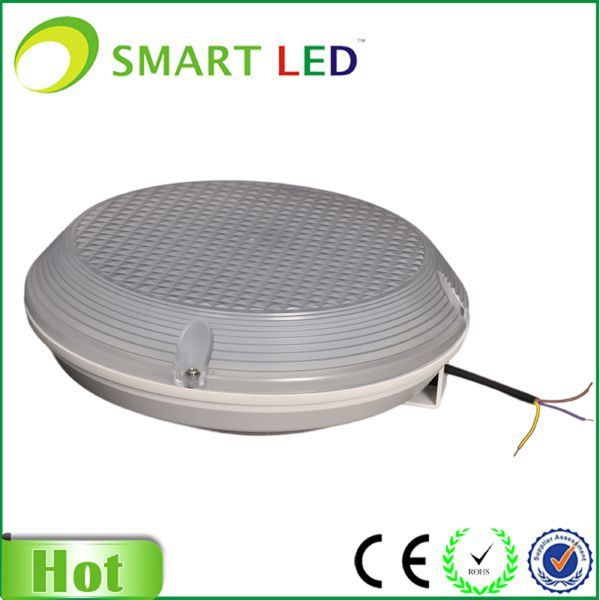

Led ceiling light C-1801-R-E-S---Microwave sensor,Emergency
Rated Voltage |
100-240VAC |
Wattage |
18W |
Lumens Flux |
1440-1620lm |
Temperature |
--10ºC~40ºC |
ED chip |
SMD2835 Epistar |
Driver |
built-in power--TUV certified |
Power factor |
0.9 |
Beam Angle |
160 degrees |
CRI |
>80 Ra |
Brownout |
YES |
Lifespan |
35,000 hours |
Emergency(yes/no) |
YES -6w Emergency |
Microwave sensor(yes/no) |
YES |
IP Grade |
IP65 |
Dimensions |
Φ 315XH98mm |
Warranty |
3 years |
Certifications |
CE&ROHS&TUV |
Electrical Specification:
1.Emergency option
Type |
Maintained |
Emergency time |
3 hours |
Emergency output |
30% nominal power |
Battery (High-Temperature) |
3.6V 2000mAH Ni-cad rechargeable
|
Charge time |
> 12 hours |
LED indication |
Red: charging; Green: fully charged;
Yellow: battery fault or disconnected |
Test button |
AC power on: Push and hold the button to enter emergency mode;
release button to come back AC power mode |
2.Microwave Sensor option
Input Voltage |
DC 30V |
Microwave radiation frequency |
ISM 5.8GHZ |
Recommend installation height |
2.5m |
Built in daylight sensor |
below 25Lux |
Detecting distance |
0.5-8m (adjustable) |
Detecting direction |
360° |
3 options
Part No. |
Color Temp. |
Power |
Lumen Flux |
Note |
C1801-R |
2700K-6500K |
18W |
1440-1620lm |
Standard |
C1801-R-S |
2700K-6500K |
18W |
1440-1620lm |
Microwave sensor |
C1801-R-E |
2700K-6500K |
18W |
1440-1620lm |
Emergency |
C1801-R-E-S |
2700K-6500K |
18W |
1440-1620lm |
Emergency and
Microwave sensor |
Package
1 Piece in 1 Inner Carton ,10 Pieces in 1 Master Carton
Master Carton Size: 49X51X51 CM
G.W:18KG
N.W:15KG
Delivery Time
for 100~500pcs 7-12 work days, 500-1000pcs 12-15 working days on receipt of your payment
