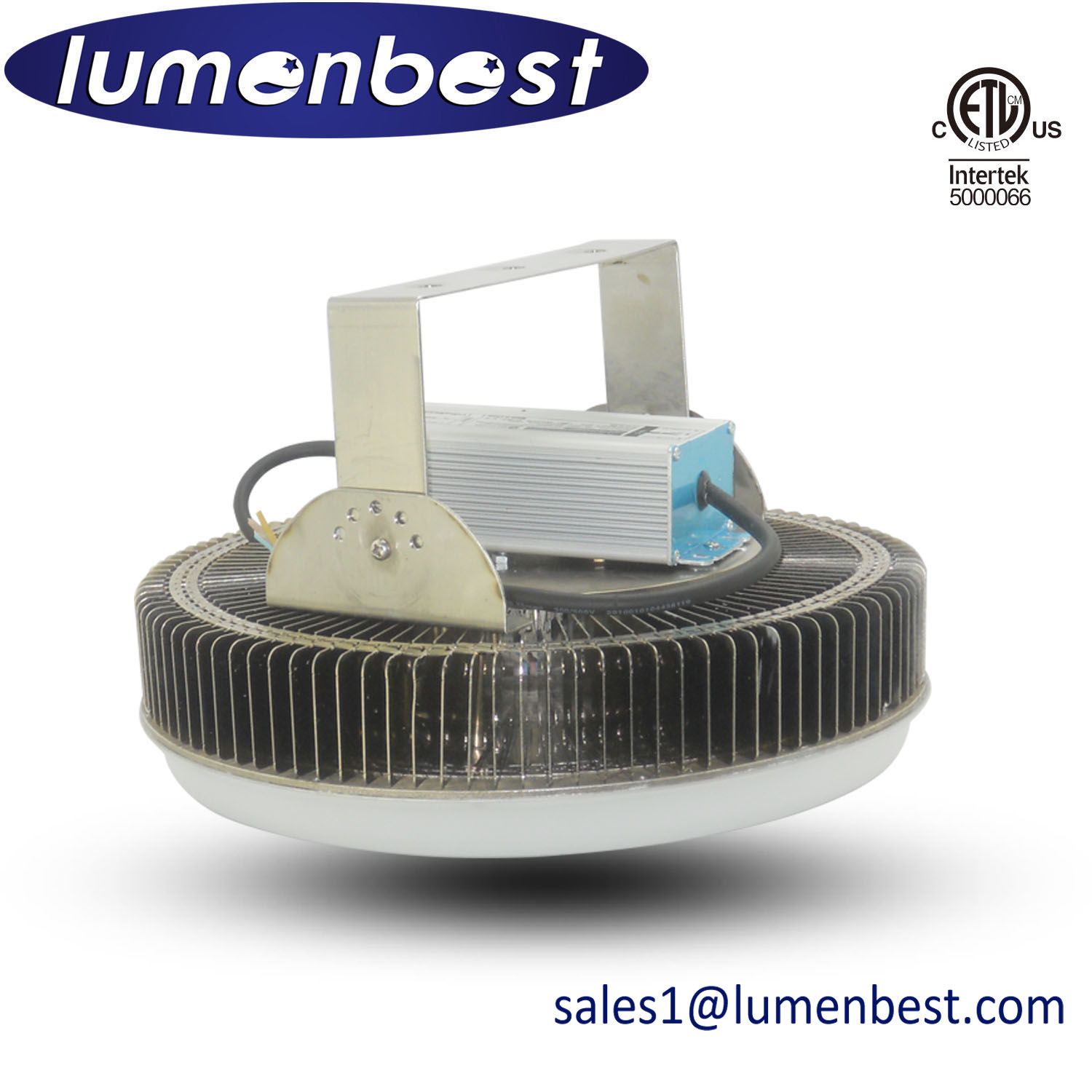

2016 latest IP64 3years warranty 60W high bay led industrial light
1.led high bay for supermarket, emporium, hotel
2.good quality, best price
3.warranty: 5 years
4.CE Rohs certificated
No mercury, No radiation, No Uv, No infrared.
Uing Nano technical, light smooth and bright.
Suitable for supermarket, emporium, hotel, can directly replace the HPS lamps.
ITEM NO. | View angle | LED Qty. | LED type | Power | Voltage | Lumens | Base | Color Temperature | Life |
(V) | (Lm) | (hours) |
LBHH01 | 200*Φ290 internal driver o r external driver | 220 degree With clear cover or milky cover or without cover | 162 SMD | Samsung 5630 | 60W | AC100-277V O R AC 120-347V | 6600LM | Frame with 5 Screws | 2700K-7000K | >50,000 hrs |
Quick Details
Light Source: LED
Item Type: LED high bay light
LED Light Source: Samsung 5630
Input Voltage(V): AC100-277V OR AC 120-347V
Lamp Power(W): 60W
Lamp Luminous Flux(lm): 6600Lm
CRI (Ra>): 80
Color Temperature(CCT): 2700-7000K
Working Temperature(ºC): -35/+50
Working Lifetime(Hour): >50000
Lamp Body Material: Aluminum+PC
Certification: CCC, CE, EMC, ETL, FCC, LVD, PSE, RoHS,CETLUS,Retrofit, Intertek
Base Type:Frame with 5 Screws
Place of Origin: Zhejiang, China (Mainland)
Brand Name: Lumenbest
Model Number: LBHH01
Input voltage: AC 100-277V,50/60HZ
LED Brand: Samsung or Seoul 5630
Beam Angle: 120
Color Temp: 2700K-7000K
CRI: CRI>80
FC: >0.95, IP 66
Life span: >50000 hours
Features of the Products:
1.High brightness,small volume, light weight, replace conventional CFL,incandescent lamp.
2.80% more energy saving compared with conventional lights
3.Special surface design for heat dissipation
4.Certificate: CE,RoHS,ETL,CETLUS,Retrofit
5.Beam Angle:120 degree
Applications:
1.Warehouse, indoor lighting, street landscape.
2.Conference / Meeting rooms/ Commercial Complexes
3.Residential / Institution Buildings/ Schools, Colleges / Universities
4.Places where need energy saving and high color rendering index lighting
Item Technical Data |
|
|
|
|
Series | LBHH01 | LBHH02 | LBHH03 | LBHH04 | LBHH05 |
Voltage | AC100-300V/ DC12-24V | AC100-300V/ DC12-24V | AC100-300V/ DC12-24V | AC100-300V/ DC12-24V | AC100-300V/ AC120-347V |
Lumen | 6600 Lm | 8600Lm | 11000 Lm | 13200 Lm | 16500lm |
Watt | 60W | 80W | 100W | 120W | 150W |
Power factor | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 |
CRI | >80 | >80 | >80 | >80 | >80 |
LED type | Samsung 5630 | Samsung 5630 | Samsung 5630 | Samsung 5630 | Samsung 5630 |
LED QTY. | 162SMD | 240SMD | 336SMD | 336SMD | 336SMD |
Color | WW/NW/CW 2700K-7000K | WW/NW/CW 2700K-7000K | WW/NW/CW 2700K-7000K | WW/NW/CW 2700K-7000K | WW/NW/CW 2700K-7000K |
Dia.[φ]*H | 200*Φ290 | 200*Φ290 | 200*Φ290 | 200*Φ290 | 200*Φ290 |
Angle | 120° | 120° | 120° | 120° | 120° |
Base | Frame with 5 Screws | Frame with 5 Screws | Frame with 5 Screws | Frame with 5 Screws | Frame with 5 Screws |
SHAOXING LUMENBEST LIGHTING Co., Ltd. is a leading high-tech enterprise and a leader manufacturer in developing, manufacturing, marketing, and after-sales servicing of LED application lights, providing a wide range of LED lightings: LED Tuhe, LED CORN, LED spotlights, LED bulbs, LED panel, LED flood light, All Sorts Of Solar Home Lighting System, solar Outdoor Lighting System, solar Flood Lights, solar String/tube Lights, solar Street Lights, etc
SHAOXING LUMENBEST LIGHTING Co., Ltd. Covers More Than 1000 Square Meters Standardized Electronic Plants, have Advanced Imported Automatic SMT Production Lines, several Wave Soldering Production Lines And Assembly, test, And Aging Workshops. High-low Temperature Test, salt Spray Test, vibration Test And Aging Test Are Accomplished In The Standard Labs. Excellent Hardware Infrastructure Lays A Foundation For The Great Of Products. All Departments Of The Company Have All Kinds Of Skillful Staffs.
Our products have received warm welcome and wide popularity all over the world, particularly in Europe and America. In order to give customer qualitied products we do our best to the quality control. Hope to future cooperation with you. Your success is our success!
Contact us, let's talk more!
