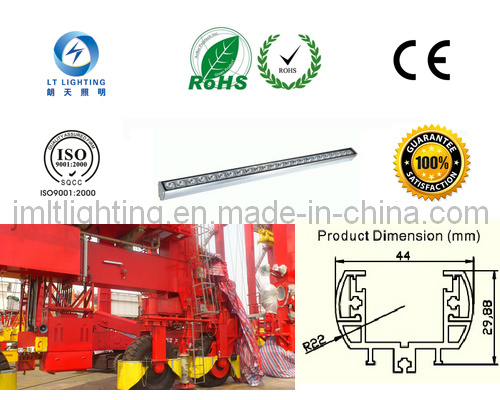

IP 67- LED Wall Washer with CE/ RoHSFeature(1)Low power consumption,high luminous efficiency,more power saving.
(2)long lifespan,reduce maintenance and displacement of the cost.
(3)According to the existing ground circuit layout,it can be one-to-one replacement directly
(4)IP65
(5)external power supply
ApplicationLandscapes/landmarks/bridges/architectural lighting
Subways/MRT/tunnel lighting billboards/
advertisement lighting
Harbors/airports/oil rigs/
container yard Lighting
Industrial lighting
(petrochemical plant,factory and facility and more)
Sports lighting(golf course,tennis court and stadium and more)
SpecificationLED Spec& Quantity:24×1W LED
LED Color Temperature :2700K-3500K/4000K-5000K/5000K-6500K
LED Efficiency:110-140lm
Lamp Efficiency:70-90lm/W
Total Luminous Flux:1680-2160lm
Operation Voltage: AC90-300V 50/60Hz
Color Rendering Index: 70-85
Beam Angle: 10°/30°/45°/60°/90°/120°(elect)
Net weight: 1.55kg±0.2KG
Power Factor:>0.9
Total Power Consumption:24W
IP Rating:IP67
Operating Temp:-40°C~50°C
Operating Humidity:10~90RH
Lifespan:50000h
Dimension(mm):L1000
Jiangmen LT Lighting Co.,LTD is the development, with a focus on special lighting manufacturing, and provide technical support and solution of the national high-tech enterprises, and in cooperation with Wuyi University in Jiangmen established a research base for lighting products and lighting products research and development center.
We are the expert of special high power LED lamp widely used in harbor, airport, tunnel, street and construction site, but also the leader of non-harmful visual system among LED lamb market. Our products are widely use in aviation, navigation, port, street, commercial, building and many other places, which are also popular in Europe, Japan, USA, Asia Pacific and other countries. Main projects includes: Upgrade vehicle displays of public transport systems in North America; Replacement of the traditional lamp to LED lamp for Boeing Co., Airbus; Italy Marco Polo yachts; Jiaguang Jiatong Road; HongKong Science& Technology Parks; Taiwan Hsinchu Science and Industrial Park; Taipei Traffic intersection test system and others.
Following the Vertical irradiation requirements,after measure and calculate lighting angle of each lamps,using the lamps' optical lens to distribute .It means that the lamps and light source and lighting angle can be the same to reduce the waste,so that it can improve the lightings' availability effeciency.
We have high and low temperature testing device and device dehumidification, we test the products many times. Make sure the products can work in high temperature,also can work in low temperature.
Jiangmen LT lighting Co., Ltd is located in Jiangmen City, Guangdong Province, China. We are specialized in LED Lighting developing, manufacturing and providing technical support and solutions, with the strength of high pole lamp, shockproof LED lighting, explosion-proof light, tunnel light, spotlight, wall washer, downlight, global bulb and many other indoor & outdoor LED lightings, with high quality and competitive price.
Our team has experienced experts and highly talented professional technicians. They all have doctorate/master' S degree and decades of experiences in LED research. We also have many patents, including heat-dissipating structures, nanomaterials, high-power sources and others.
Our products are widely use in aviation, navigation, port, street, commerical, building and many other places, which are also popular in Europe, Japan, USA, Asia Pacific and other countries. Main projects includes: Upgrade vehicle displays of public transport systems in North America; Replacement of the tranditional lamp to LED lamp for Boeing Co., Airbus; Italy Marco Polo yachts; Jiaguang Jiatong Road; Hongkong Science& Technology Parks; Taiwan Hsinchu Science and Industrial Park; Taipei Traffic intersection test system and others.
We insist on the idea of "efficiency, integrity, service, humanity" & "learn from advantage, and surpass the similar. " We have unique enterprise culture and mature management concept.
We have been making every effort to become a top-rank LED manufacturer and supplier in China. Look forward to the future, we will strive to be the leading company with great competitive ability, also make a contribution to harmony of environmentally friendly society and the progress of human civilization.
