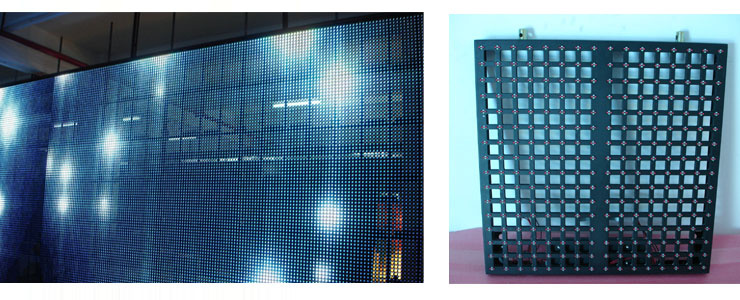

Mainly used for the stage background, concert, such as rental occasions, with the light weight screen cabient, quick assembly, pretty appearance, large view angle, both used indoor and outdoor occasions ect features.
Orient LED Curtain Display advantage:
1. Whole sealed water-proof constructure, the water-proof level reaches IP65. Could adapt the indoor and outdoor different temperature and humidity.
2. Light weight: Only 10kg of single cabinet.
3. Ventilation: 40° C Lower than peers 10° C or 20º C.
4. Good Permeability: 60%, weatherproof.
5. Convenient for installation/uninstallation. It can be hang-up or fixed to the steel frame.
Specification:
Module Parameters
Physical Pitch: 36mm
Physical Density: 625pixels/M2
Pixel Type and Configuration: 1R1G1B
Drive Mode: Static.
Cabinet Parameters
Cabinet Size: 640X640X80mm
Cabinet Resolution: 16X16
Strip Quantity: 16PCS
Cabinet Weight: 8kg
Display Parameters
Optical Brightness: ≥ 1000CD/M2
Contrast Ratio: ≥ 1000: 1
View Angle(50% Brightness): 110° /60°
Minimum View Distance: 40M
Transparency Ratio: 53%
Gray Scale: 8bits/256levels
Color Capacity: 16.7million
Power Supply
Power Consumption (Max. ): 230W/ M2
Power Consumption (Ave. ): 75W/ M2
Operating Power Source: AC110-220V 50-60Hz
Controller Frame Frequency: 60-85Hz
Refresh Rate: 2000Hz
Brightness Adjustment: 0-100%, 8 levels automatic
Gamma Correction: -5.0-5.0
Correction Scale Level: 8bits
Color Temperature: 5000-9300K
Brightness Correction: Pixel, Module, Cabinet Correction.
Input Source Support: Composite, S-video, Component, VGA, DVI, HDMI, SDI, HD_SDI.
Control Distance: UTP CAT5E: 100M.
Multi-mode Fiber: 500M.
Single-mode Fiber: 10KM
Reliability Operating Temperature: -40-+65 degree
Operating Humidity: 10-90% RH
Operating Life Span: 100, 000 Hours
MTBF: 5, 000 Hours
Protection Ratings: IP63
Pixels Out of Control Rate: 0.01%
