1, big viewing angle
2, uniformity brightness
3, high color saturation
4, high definition
5, vivid, smooth result

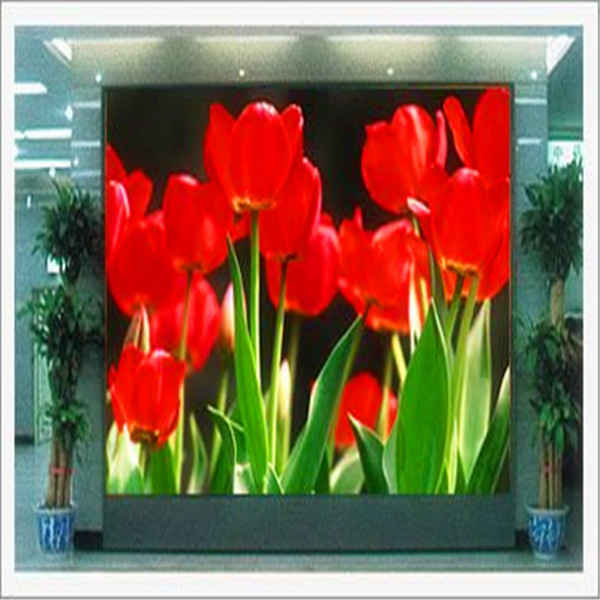

SMD 3 in 1 technology is widely used in full color indoor LED display which means that one red, one green and one blue chip are encapsulated in one pixel. All pixels are averagely distributed on the whole LED display.
The outstanding advantages of Indoor SMD full color LED display is with big viewing angle, uniformity brightness, high color saturation, and high definition, vivid, smooth result when playing the texts or images.
Leder's full color SMD LED display is with the features of high stability, convenient for installation and maintenance, rich playing content, quick reaction, low failure rate and so on.
It is well applied to city halls, airports, waiting rooms, railway stations, bus waiting rooms, luxury office buildings, factories, enterprises, etc
| ITEMS | P7.62 |
| Module | Pixel Pitch | 7.62mm |
| Pixel Density | 17222dots/m 2 |
| Led Lamp Type | SMD 3 IN 1 |
| Led Lamp Size | 3.5× 2.8mm |
| Led Configuration | 1R1B1G |
| Module Size | 488× 244mm |
| Module Resolution | 64× 32 |
| Scan Mode | 1/8 duty |
| Drive Mode | Constant Current |
| Cabinet | Cabinet Size | 732× 732mm |
| Cabinet Resolution | 96× 96 |
| Module Quantity | 18 |
| Cabinet Weight | less than 25kg/m 2 |
| Display | Brightness | ≥ 1500cd/m 2 |
| Contrast Ratio | ≥ 2000: 1 |
| Viewing Angles | 140° (H)/140° (V) |
| Min. Viewing Distance | 7.5m |
| Gray Scale(Single Color) | ≥ 12bits/4096 level |
| Colors | 68.7 billion |
| Power Supply | Average Power Consumption | 220w/m 2 |
| Working Voltage | AC 90 to 260V, 50 to 60Hz |
| Control System | Frame Changing Rate | 60 to 85Hz |
| Refresh Rate | 600 to 4000Hz |
| Brightness Adjustment | 0 to 100% |
| Ganma Correction | (-0.5 to 5.0) |
| Color Temperature | 3000 to 9300K |
| Brightness Correction Mode | By Pixel, Module, Cabinet Correction |
| Data input Source | AV, S-Videom, VGI, DVI, HDMI, SDI, DP |
| Control Method | Synchronization with computer |
| Data Transmission Distance | 100mby UTP CAT5; 500m by Multi Optic Fiber; 10km by Single Optic Fiber |
| Operation Environment | Windows(2000, XP, Vista, 7) |
| Reliability | Storage Temperature | (-40 to 85)centi degree |
| Working Temperature | (-20 to 50)centi degree |
| Working Humidity | 10% to 90% |
| Lifespan | 100, 000Hrs |
| MTBF | 5000Hrs |
| IP Rating | IP43 |
| Blind Spot Rate | ≤ 0.01% |
RFQ:
Q:What is your hot sale product?
A:P10 full color is best selling for Outdoor; P6 full color is best selling for indoor.
Q:What different from 1/4 scaning with 1/8 scaning?
A:1/4 scaning is better than 1/8, the screen will be high definition,high brightness.
Q:What different from LCD with LED?
A:1.LED is more energy save than LCD , have a high definition .
2.LED have a big viewing angle, it can up to160 degree.
3.LED can working well in a strong shine day.
Q:How to ensure the good quality of LED display?
A:Optimized structure can improve the efficency of installing screen to creat value;Aging can improve the quality, ensure reliability.
Q:The advantage of LED SMD
A:1.High resolution ;2.Big viewing angle; 3.Rugged ; 4.Vivid Mixture Color Effect ;5.Color Consistency; 6.Enhanced Contrast Ratio;7.Mass Production; 8.Long Service Life.
