Indoor P5 SMD RGB Rental LED Display Screen

1. CE,FCC,RoHS,C-Tick approved

2. High brightness, Utrl thin, Super light

3. Superior uniformity, Good display effect

4. 2 years warranty,  best after-sales service

5. Video, flash, animation, graphic, text available;

6. Installation structure drawing offered FOC;

7. Factory visiting and inspecting is welcome;

8. OEM service offered;

9. Models available:

    P3mm, P4mm, P5mm, P6mm

Indoor rental P5 LED module
Pixel Configuration: 1R1G1B SMD 3-in-1

Module Size: 160mm x 160mm

Pixels/Module: 32 x 32

Indoor rental P5 LED cabinet/panel

Cabinet Size(WxHxT): 640mm x 640mm x 80mm

Pixels/Cabinet: 128 x 128

Cabinet Weight: 10.2KG

Cabinet Material: Brushed Aluminum



Indoor rental P5 LED Screen

Brightness: 1300cd/m2

Viewing Distance: >5m

LED Life: 100000hrs

Refresh Rate: 500-3000HZ adjustable

Power Consumption: Max:400w/m2; Ave:120w/m2

Supply Voltage: SC220V/50HZ: AC110V/60HZ

Operating Temperature: -20 ºC~+50 ºC



Operating Humidity: 10%-90%

Product Features:





High quality:

Higher precision and seamless connection; No fan design, low noise. Modular design, CNC finishing display structure.



Good effect:

High refresh rate, HD video with vivid pictures.



Good uniformity:

Brightness difference within 10% between any two LEDs, to ensure the brightness and color uniformity of the display; Good uniformity in color  solve the problem of mosaic well.



Advanced technology:

Advanced technology of production ensure the quality and lifetime of LED display;  With a full range of anti-static measures, effectively reducing the damage to LED from the static, so as to control the death rate of LED five over one million each year.



Easy operation:

The products adopt popular video playing software to facilitate system operations.



Easy maintenance:

Ultra thin, super slim and hanging design make it easy and fast for assembling and disassembling.



Available range:

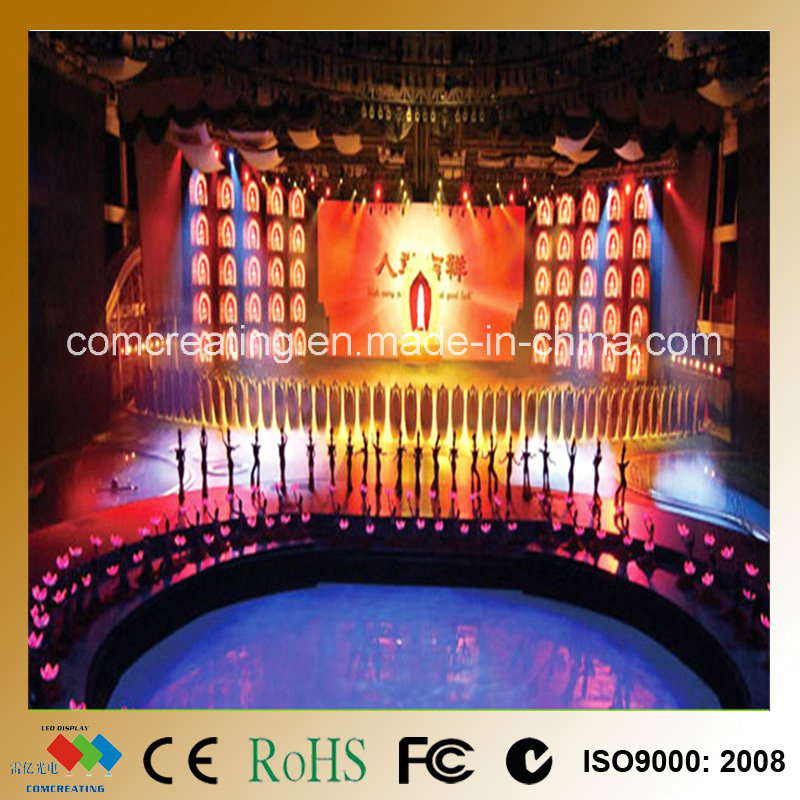

The indoor LED dispaly screen is extensively used in hotel lobbies, conference rooms and retail showrooms for product dispaly, indoor events and for the beautification of commercial as well as residental premises.

Pre-sales support

1. We offered technical advice to our customers before buying our products.
2. Help customers to choose suitable products within budget with most economy benefit.
3. Design the framework structure to install our led products with technical drawing.
4. We offered software customization for our customer's specific usage.

After- sales service

1. We promise our customers more than just two years warranty service!
2. We provide free maintenance services including remote configuration, technical consultation, and trouble  shooting for our customer.
3. We promise a life time followup service for all the equipment supply by our company. These  include  continuously improve of system functions and upgrade of system software.
4. We offered training to our customer who includes operating and maintenance of our  products.



FAQ:

HOW TO SELECT

Selecting an LED Display should be driven by the business or organizational objectives you hope to meet by purchasing an LED Display System. Every LED display application is different, so it is important to choose the right LED display.

OUTDOOR OR INDOOR

LED Displays are specifically designed for indoor or outdoor use. There are two main factors that differentiate the two. First is weather durability. Outdoor displays are designed to function properly in extreme weather conditions while indoor displays are not built to the same environmental standards. The second consideration is display intensity. LEDs used for indoor applications are not bright enough to compete with outdoor ambient light conditions. Outdoor LED Displays are designed specially to be bright enough for outdoor environment.

LOCATION OF MOUNTING OF LED DISPLAY

The exact placement of an LED Display in reference to the viewing audience is an important factor in determining the right product for an application. There are two points to consider when choosing a LED Display based on where it will be installed. First, the placement of the LED display will affect the minimum and maximum viewing distance. Secondly, the angle at which the LED Display can be effectively viewed must be considered, this is referred to as the viewing angle. Often, different Led Displays have different viewing angles. It must be ensured that the intended viewing audience is within the viewing cone of the display.

DISPLAYING CONTENT

Understanding the communication wants is a very important factor in determining the right product for a specific application

VIEWING DISTANCE

Viewing distance is one of the most important factors needed to determine the correct size of the LED Display.

As a general rule: 1 inch of text is viewable up to 50 feet away 1 or 25mm of text is viewable up to 15m away .

However, if the target audience is moving, then another factor, TIME, is required. Based on our experience and research, an average of at least three to four seconds is required for a moving audience to adequately recognize and comprehend six to eight grouping of content on an electronic sign. For example, an audience will have three seconds or less to view LED Display signs with four inches of text. If the LED Display signs have too much content, then the reader will not have sufficient time to comprehend the entire content.
