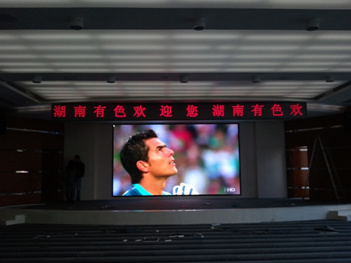

The series of display can be uesd as indoor fixed installations.
Wide viewing angles: More than 120 and up to 140 degrees both vertical and horizontal
Rich colors: 12 bit for each color depth, 68.7 billion colors
High refresh rate: No scan lines seeing from camera.
High reliability: High quality material for the cabinet frame, good brand power supply units, good LEDs and drivers etc, allows high reliability of the finished products.
Convenient service: Modules design allows fast and easy service.
Slim cabinet: Slim cabinet option, allows the possibility to be installed in space limited environments.
Different LED chips option: Different levels of LED chips option meeting different demands of the customers. Nichia, CREE, Epistar, Silan and other Chinese chips brands optional.
| Item |
|
|
|
|
| Model | P4 | P5 | P7.62 | P8 |
| Pixel pitch | 4mm | 5mm | 7.62mm | 8mm |
| Pixel configulation | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| LED type | SMD2020 | SMD3528 | SMD3528 | SMD3528 |
| Module size | 256*128mm | 160*160mm | 244*122mm | 256*128mm |
| Module resolution | 64*32 | 32*32 | 32*16 | 32*16 |
| Cabinet resolution | 128*128 | 128*128 | 128*128 | 128*128 |
| Cabinet size | 512*512mm | 640*640mm | 976*976mm | 1024*1024mm |
| Density | 62500dots/m2 | 40000dots/m2 | 17222dots/m2 | 15625dots/m2 |
| Brightness | 1600NIT | 2000NIT | 1600NIT | 1400NIT |
| Scan method | 1/16 | 1/8 | 1/8 | 1/8 |
| Best view distance | more than 3m | more than 4m | more than 6m | more than 7m |
| Max. power consumption | 720W/m2 | 750W/m2 | 680W/m2 | 650W/m2 |
| Ave. power consumption | 380W/m2 | 350W/m2 | 340W/m2 | 320W/m2 |
| Weight | 35kg/m2 | 35kg/m2 | 45kg/m2 | 45kg/m2 |
| Cabinet weight | 37kg | 15kg | 43kg | 47kg |
| Refresh rate | 1200Hz | 1600Hz | 1600Hz | 1600Hz |
Dongguan Phcistar Technology Co., Ltd. is a comprehensive enterprise by the joint venture investment of Jiangsu Phoenix Publishing & Media Group and CITIC Investment Holdings Limited, which is specialized in LED chip, encapsulation, lighting, lighting engineering and display products combined with R&D, production, sales and engineering services in one. At the same time, Phcistar Company is also engaged in the photoelectric products and control system technology development, and carrying out the Energy Management Contracting (EMC) business.
Phcistar Company is located in Senyang High Tech Park, Dongguan, China. Our company firmly grasps the development direction of green technology, focusing on the study on cutting-edge technology in LED industry application with the most prosperous market. We master the core technology of LED chip, encapsulation, light source structure of application products, encapsulation technology, photoelectric display, radiating structure, data communication, video processing, automatic control, etc.
Our company has a sound modernized management system gathered a group of professional, experienced R&D, production management and engineering services team in LED field. Our company adheres to the advanced design concepts, to provide our customers LED application integrated solutions with high quality products and services.
Our company will continue to uphold the corporate culture of "Inherit Historical Heritage; Create Bright Future", observe the business rules of "Integrity; Concentration; Refined Chip", aim at the purpose of "Create High-Quality Products, Provide Considerate Services", and promote the development of low carbon environmental protection with our customers worldwide together.
