Indoor LED Curtain Display

Feature:
1. Very light weight and can be fold LED Curtain
2. Can make big size as 460sqm as a big LED curtain
3. Very high Cost-effective

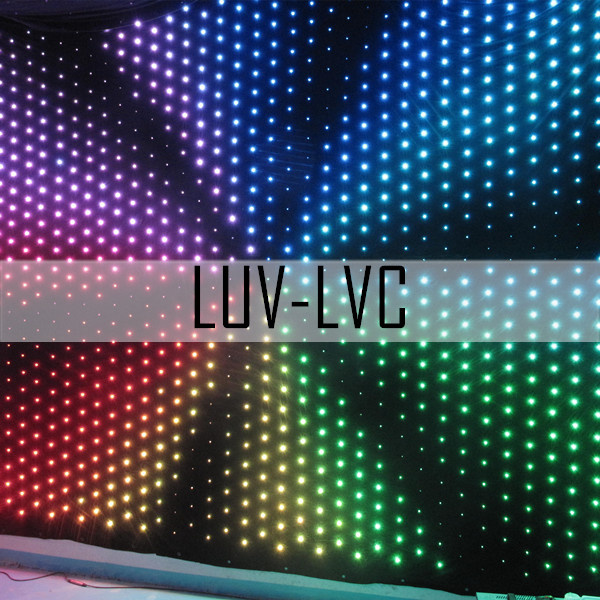

Indoor led curtain display


Our LED VIDEO CURTAIN advantage compare with normal LED SCREEN:
Very light weight and can be fold -------------------------Much more light weight and very easy install on truss. Can be fold and package easily in any move event

Can make big size as 460sqm as a big screen---------with Pitch 9cm can make the biggest screen as 120sqm, and for Pitch 20cm can make the biggest screen as 460sqm which the LED display can not do.

Very low cost compare with LED screen-------------------how much will the 120sqm LED screen you will take? For our P20cm only need around $8000.00

Big screen or copy function-----------------------------------only need one controller, just need change the connection wire way, then you can achieve the big screen or many small screen the same effect. Save much cost and fit for any stage requirements.


Pamameter:

Hot sale size:
2mx3m, 3mx4m, 4mx8m, 4mx12m, 4mx18m

Two kinds Pitch for choose:
P90 --the distance between LEDs is 9cm (can make max 120SQM as one big screen)
P200 --the distance between LEDs is 20cm(can make max 460SQM as one big screen)

Basic Parameter:
L Voltage: AC90V-260V/50Hz
L Pitch: P9(9cm) or P20(20cm)
L Controller version: SD version or PC version for choose.
L National Fireproof black velour fabric or UK Fireproof black velour fabric(suggest for P9 and big size curtain).
L easy for install with LED curtain four sides eyelets design and easy fold package very suitable for mobile event
L Hot sale size: 2mx3m, 2mx4m, 3mx4m, 4mx6m, 4mx8m, 4mx12m, 4mx18m(special size also acceptable)
L Strong 4pin connection between curtain and controller.

PC VERSION
Limited whole LED curtain size can not exceed 120SQM for P9, and can not exceed 460SQM for P20.
HOT SALE SIZE: 3mx4m (P9) and 4mx8m (P9)
L Must work with computer, what show on computer software what will show on LED curtain.
L Software offered: Can program any Video, pictures or Text effects by customer
L Function: Sreec Capture/ Flash Playing/ File Playing/ Text Edit
L One controller can fit any size: Can make 8PCS 3mx4m connect together to make as 4mx24m, 8mx12m, 3mx32m, 6mx16m many defferent size just by one controller (just need change new software)

SD VERSION
Limited whole LED curtain size can not exceed 12SQM for P9, and can not exceed 50SQM for P20.
HOT SALE SIZE: 2mx3m (P9)and 3mx6m (P20)
L Software offered: Can program any Video, pictures or Text effects by customer and then store in SD card.
L Control way: Auto(Preset nice 88 programs)/DMX/Music.
L Copy function: Connect the LED curtain one by one and just control 1 controller, the all curtain will be the same effects, the LED curtain quantity no limited.
L Packing: Carton or professional flightcase

FEATURES
FEATURE 1.
Special feature rhombic lattice instead of normal rectangle lattice.




L Our Special feature is rhombic lattice pattern instead of the standard rectangle lattice.
L As professionals in the manufacturing of the LED Vision Curtains we use a simple yet effective way in order to make some round effect looks more
Natural and vivid, but not like the rectangle lattice with low pitch making the words or pictures come squared off on the edges and corners. So for your best viewing and solution we us rhombic offset lattice instead.
LUV-SpecialRhombic latticeYES! Normal rectangle lattice NO!

FEATURE 2.
5mm LED LED vision curtain instend of Normal SMD LED vision curtain.



Becuase we want keep the best quality merteial to let the products achieve excellent effect, and 5mm LED is more bright. But we also keep competitive price with high quality with CE and RoHS certificate. Many customer ask us what`s the deffirence between normal 5mm LED and SMD, we think the pictures can show everything.
