Module: P4 full color
Pith (mm): 4
Pixel component: 2121 3-in-1
BPC Board Spec.: LEDs and driver IC on one board
Pixels/: 62500
PCB Resolution: 32(w)*32(h)
PCB Size(mm*mm): 128*128
Brightness/CD: >2300CD
Color Temperature: 3000K-8000K adjustable
Horizontal View Angle: 120degree
Vertical View Angle: 120 degree
View Distance: 2-26meters
Color depth (bits): 16bit
Grey depth: ≥ 1024*1024*1024
Color number: 1073741824
Control Distance data <100m, multimode optical fiber100- 500m,
Monomode optical fiber: 500-2000m
Driver Way: Current Driver
Scan: 1/16
Repetition frequency: 120Hz
Pixel Refresh Rate (Hz): >240Hz
Editing software: Synchronous
Continuous operating time: ≥ 48hours
Mean free error time: >5000 hours
Life typical values: 80000hours
Temperature range operating temperature: -20 — 40 degree
Storage Temperature: -20 — 60 degree
Max Power supply/: <1200W
Average Power Supply/: <400W
Weight/: 30KG
Software environment Windows. NET, Windows2000, Windows 7, Windows XP
Flatness ≤ 0.5mm
Power supply: 220V ± 15%
Contrast 150: 1
Ingress Protection Front/RearIP31/IP31
Humidity operating temperature: 10 - 90%
Storage Temperature: 10 - 90%

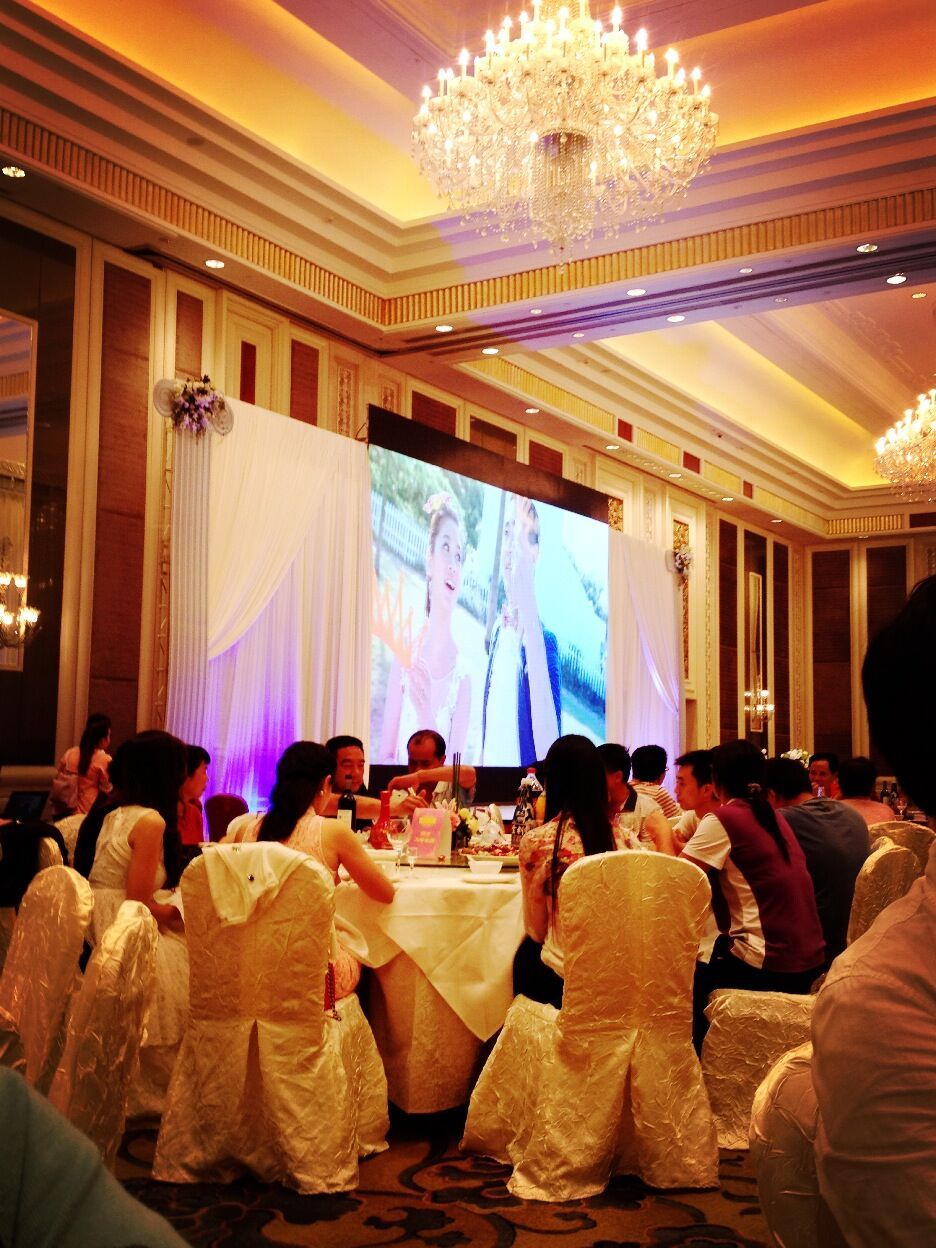

P4 full color indoor LED display with super bright
1)High brightness;
2)Good flatness;
3)High contrast;
4)High energy saving display can save 50% more than traditional display.
* Products Advantages:
1) Price Advantage: We have the best competitive price at the market, also have the same even better quality.
2) Performance Advantage: Best Equality, high consistency, Big viewing angle, can repair each LED lamps
3) Quality advantage: From material to finished product, from design to produce, we control all steps, that's the guarantee of the quality and reliability.
4) Service advantage: Better service at same situation, better cooperation at same service!
