Product Description:
Model Names LH125RGB

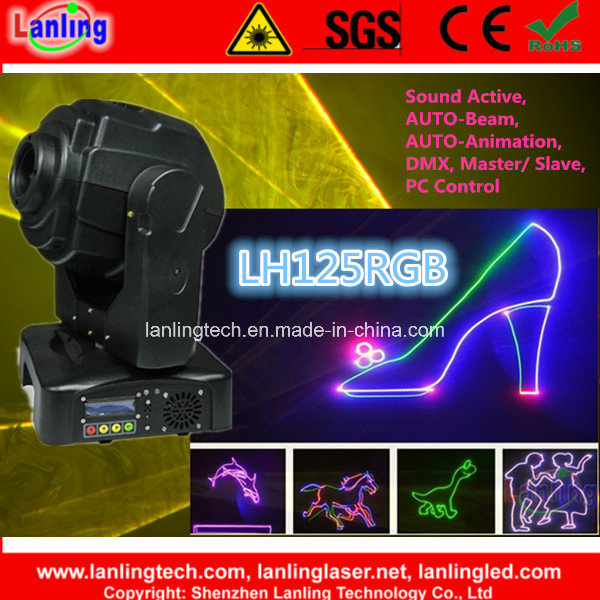

Description: ILDA Animation Moving-Head Laser light
Laser power: 1.25W RGB (Red: 600mW, Green: 150mW, Blue: 500mW 450nm, blended white: 1250mW)
Scanner speed: 25kpss
Feature: This moving-head animation laser light is a great achievement on this decade. It has been pre-programmed with 103 kinds of geometric figures and 10 kinds of animations. All those patterns can be operated under DMX control, which has functions of moving up/down/left/right, zoom in/out, rotating, drawing, billowing, speed, color, etc. The most advance function is the horizontal/vertical speed control, which has 256 levels on the speed. On the easy-to-use LCD indicator, this laser light can be set to the stay-still mode. Horizontal angle at 0 to 540° And vertical angle at 0 to 270° . Each level on horizontal angle is 2.1° And on vertical angle is 1.05° .
Scanner: High-speed optical scanner, big angle scanning (0 to 30° )
Horizontal moving angle: 540°
Vertical moving angle: 270°
Scanning Tilt and Pan
Selectable pre-set whole unit running direction clockwise or counter clockwise
Selectable pre-set whole unit running angle range
Vertual Operating platform: LCD1602 indicator and 4-in-1 key control, easy to use
Play Mode Sound Active, AUTO-Beam, AUTO-Animation, DMX, Master/ Slave, PC Control
DMX channels: 15
PC Control Compatible ILDA laser show software with ILDA interface. Use electronic switches to conversion full ILDA signal
Power Supply Bi-Voltage 110V to 220V-250V, 50/60HZ, 50W
Net Weight 9.5Kg
Gross Weight 13Kg (in carton box)
31Kg (in Flight case)
Volume Weight 23Kg (/5000) or 19.2Kg(/6000), with carton box
39Kg (/5000) or 32.5Kg(/6000), with flightcase
Inner Box 565*425*410(0.099cbm), with carton box
660*510*520(0.175cbm), with flightcase
Outer Box 1pcs/carton or 1pc/flightcase
Model Names |
LH125RGB |
Description |
1250mW RGB Multi Color Moving-Head Animation laser |
Feature |
This moving-head animation laser light is a great achievement on this decade. It has been pre-programmed with 103 kinds of geometric figures and 10 kinds of animations. All those patterns can be operated under DMX control, which has functions of moving up/down/left/right, zoom in/out, rotating, drawing, billowing, speed, color, etc. The most advance function is the horizontal/vertical speed control, which has 256 levels on the speed. On the easy-to-use LCD indicator, this laser light can be set to the stay-still mode. Horizontal angle at 0 to 540°and vertical angle at 0 to 270°. Each level on horizontal angle is 2.1° and on vertical angle is 1.05°. |
Scanner |
25kpss High-speed optical scanner, big angle scanning (0 to 30°)
Optional 30K, 40K, 50K |
Horizontal moving angle: |
540° |
Vertical moving angle: |
270° |
Scanning |
Tilt and Pan |
Vertual Operating platform: |
LCD1602 indicator and 4-in-1 key control, easy to use |
Laser |
Green: 150mW 532nm
Red: 600mW 650nm
Blue: 500mW 450nm
Mixed white laser 1250mW |
Play Mode |
Sound Active, AUTO-Beam, AUTO-Animation, DMX, Master/ Slave, PC Control
DMX channels: 15 |
PC Control |
Compatible ILDA laser show software with ILDA interface. Use electronic switches to conversion full ILDA signal |
Safety Capacity |
Design according to security and good performance, safer to human and environment. Master/Slave mode, DMX512 mode and PC Control mode, will shut off laser automatically without trigger signal |
Power Supply |
Bi-Voltage 110V to 220V-250V, 50/60HZ, 50W |
Net Weight |
9.5Kg |
Gross Weight |
12Kg (in carton box)
29Kg (in Flight case) |
Volume Weight |
Kg (/5000) or Kg(/6000)
Kg (/5000) or Kg(/6000), with flightcase |
Inner Box |
600*430*400(0.11m³), with flightcase |
Outer Box |
1pcs/carton |
Accessories |
Included: User's Manual
Power Supply Cable (UK, USA, EURO, AUS, BRZ).
Optional: DMX cable
DB25 ILDA/PC Cable
Flight case
Laser software, such as Quickshow, LD2000, iShow, Mamba Black, Phoenix, or others. |
Applicable Place |
Logo, company advertising, superstar fashion show, DJs, Bands, Bars, Pubs, Clubs, Roller skating rinks, KTV, Family party, etc. |
Customized |
OEM, ODM |
