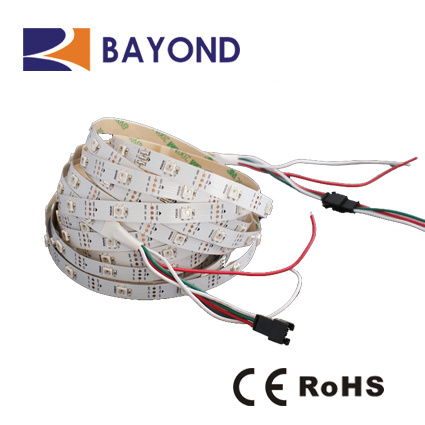

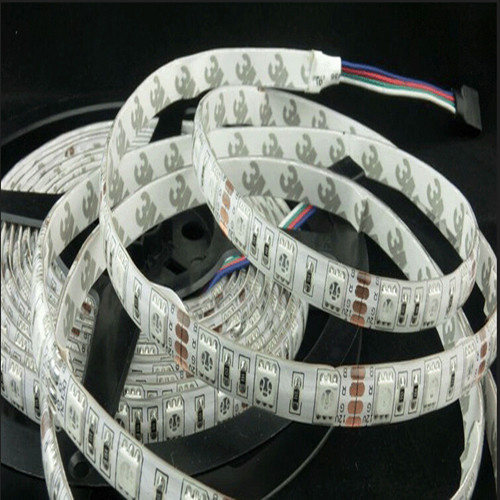

House Decoration 5050 LED Flexible LED Strip Light1. LED type:SMD5050
2. Power consumption:7.5W/meter;
3. Driving method:Constant voltage;
4. Waterproof is available;
5. Used with controller.Item Name | Led strip |
Light source | SMD5050 |
LED Qty | 60LEDs/m |
Working voltage | DC12V |
Output power | 14.4W/m |
PCB Width | 10mm |
Waterproof Rate | IP65/67/68 |
Cut table | Each unit of 3 LEDs |
Long Life span | 50,000Hs |
Certificate | CE/ROHS/EMC/LVD |
Features of home decoration SMD5050 epistar led rgb strip:1. Connect with DC12V power supply, which can connnect several LED flexible strips in series.
2. Adopt excellent flexible PCB material to apply to various shapes' installation, the flexible PCB could be inwhite,yellow,black.
3. The max. power of single color product: 7.2 W/M, the max. current: 600 mA/M. The max. power of RGB product: 6 W/M, the max. current: 500 mA/M.
4. The series could be customized to be waterproof LED strips(IP45,IP67,IP68,etc.) according to customers' requirements.
5. Lifetime:50000 hrs.Applications:1. Concealed accent lighting;
2. Edge lighting;
3. Path and contour marking;
4. under counter.Advantages:1.Easy connection and installation
2. long life span,standard warranty 2 years
3.6 Leds cut-able, matched with easy connection accessories
4.No need the constant-current power feed
5.Low power consumption
6.Best choice for holiday season, show and exhibition 's decoratingAttentions when operating:1. Effective power for switch power is only 85% of power's label,so LED product's load power shoul be at least more than 15% when user choose feeding power.
2. Make sure the right and stable anode and cathode when installing cables,and also attention to the driving voltage in case to damagecomponents and fire
accident when circuit pass through voltage.
3. Forbidden to connect cables when power on,putting power in cool place,so that it ensures appropriate working temperature.
4. Make sure strip's grade of waterproof.To install suitable conditions in accordance with practical IP.
5. This product is allowed to connect only 10PCS(0.5M/PCS)in seires wound. 2V differential voltage for the beginning and the end.
6. This user manual is only applicable for our product.
7. If it is Crystal Glue,please don't crook 30 degree,otherwise,it easly happens glue cracking.Packaging details:1. 5 meters/reel as an unit wrapped around a disk, specifications of the disks are 8, (40g), 10mm (75g) and 12mm (100g) respectively and each disk is packaged by antistatic bag
2. We have two regular sizes of the cartons:One is 28 x 28 x 28cm, in which 30 reels non-waterproof LED strips are packed and the weight of the carton is 0.5kg, the other is medium carton, weighing 0.85kg, 80 reels non-waterproof or 60 reels waterproof strips can be packaged
3. Packaging can also be according to customer's requirement
FAQ:Q: How to get a sample?
A: ANSWER:For old customers, we can provide sample free and customer only need pay express freight. For new customers, we will charge 50% higher then the unit price as sample fee and customers need to pay express freight also.
Q: How to pay express charges if order samples?
A: ANSWER:For those customer, who has DHL, FEDEX, TNT, UPS account, can give us your account and we will send the samples by freight collected. For those customers, who do not have an express account, we will calculate the express freight charge for you and you can pay the freight charge directly to our company account. Then we will delivery the samples by prepaid.
Q: How to pay sample charges?
A: ANSWER:You can pay to our company account. When we received the sample fee, we will arrange to make the samples for you. The prepare time for sampe will be 2-7days .
Q: What is your terms of payment?
A: ANSWER:Usually, we accept T/T, irrevocable L/C at sight. For regularorders, we
prefer 30% of total amount as down payment and the balance paid before delivery.Main product:
Contact us now:Soros(sales manager)
4F, Building 3, Weijian Technology Park, Beihuan Road, Shiyan, Bao'an, Shenzhen, Guangdong, China
Tel: +18025356423
Fax: +86-755-2965 8127
