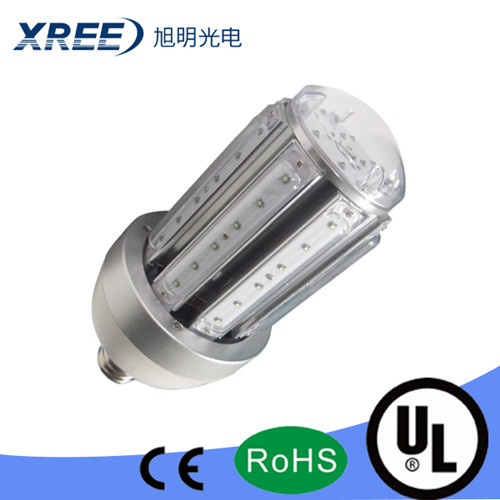

Hotsale UL led corn light, e27 e40 30w/40w/60w/80w/100w led corn bulb, UL led corn lamp with 3 years warranty
Specification for 60w corn light:
Main Technology Index |
ITEM | G120-S60 |
Input Voltage | AC 100~305V |
Frequency Range | 47~63HZ |
Power Factor(PF) | ≥0.98 |
Total Harmonic Distortion | <20%(*) |
LED Quantity | CREE ; 48pcs/ Philps 80pcs |
Lumen | 5400-6000lm |
LED Concumption | 51.7 W |
LED Luminous Efficiency | 90-100 lm/W |
LED Initial Flux | 4800 lm(Tj=25°C) |
LED Maintain Flux | 4760 lm(Tj=70°C,Ta=25°C) |
Lamp's Flux | 4760 lm(Tj=70°C,Ta=25°C) |
Lamp's Efficiency(%) | ≥95% |
Color Temperature | Pure White: 5,300~5,700K |
Color Index(CRI) | Ra≥80 |
Light Source | CREE MX-6;100-107 lm / W |
Junction Temperature(JT) | 70°C±10%(Ta=25°C) |
Working Temperature | - 30°C~40°C |
Storage Temperature | 10°C~85°C |
Working Life | ≥ 50,000Hrs |
Light Body & Lampshade Material | Aluminum + Plastic |
Ilumination | Pure White: 550 lux ( Height=1m); 320 lux ( Height=2m); 145 lux ( Height=3m); 75 lux ( Height=4m); |
Equivalent to HPS / HQL | Replace 200W HPS (High Pressure Sodium Lamp), in 5-6 meter poles |
Replace 250 W HQL (High Pressure Mercury Lamp) in 5-6 meter poles |
Advantages of Products | 1.LED: CREE LED MX-6, High Brightness, Reliability, High Temperature Resistant, Long Life span; |
2. Driver: Most components are imported from Japan; Long Lifespan. |
Lamp Base | E39 /E40 |
Product Dimensions(Units:mm) | 122.26 (dia)x 234.40 (L) |
IP Rating | IP44 |
Inner Packing Size | 160 * 160 * 300 mm / box ( Color Box) |
Outer Packing Size | 700 * 320 * 370 mm / CTN / 8pcs |
Container Q'ty (pcs) | 20'Q: 3,600 pcs; 40'Q: 7,500 pcs; 40'HQ: 8,800 pcs |
Certification ( GS Number) | 50171381 ( This GS certificate is made by Germany the most authoritative Organisation TUV) |
Customer Case Studies | We developed this item last year. The market reaction is very good. It has authoritative certificate GS. It's avialable for volume production at reasonable price.
We sell monthly 2000pcs to Spain. |
Warranty Policy | Xuming supplies the leading market products to customers. Consequently, we offer a no questions asked replacement warranty for any defective light products.
What that means is, if a light is to be found not working within two years, and it was not a result of installation or third part damage, we will replace it. |
Applications, Features, and Benefits
*Excellent Retrofit for existing Post Top in high walkway applications
*High output Samsung or CREE LED's
*50,000 hrs Internal FCC approved LED driver made with long life components
*High Power Factor, Low THD Internal Driver
*Available in multiple color temperatures to match existing HID lighting
*Widely use for Post Top, Canopy, Low bay retrofit, etc
*Patented LED engine design with Advanced Thermal Management
*Aluminum cast heat sink for excellent thermal managment
*360° beam spread
*3 Year Warranty
Item series
G60-S12xG-X 12W 1000LM
G60-S18xG-X 18W 1600LM
G60-S20xGT-X 20W 1800LM
G80-S25xx-X 25W 2400LM
G80-S30xGT-X 30W 2700LM
G80-S35xx-X 35W 3400LM; (UL cUL Approved)
G80-S45xx-X 45W 4400LM; (UL cUL Approved)
G120-S60xx-X 60W 5400LM; (UL cUL Approved)
G120-S65xxT-X 65W 5900LM; (UL cUL Approved)
G120-S90xP-X 90W 8500LM
G120-S95xPT-X 95W 8600LM
Product SHow:
Applications:
We are professional manufacturer of LED lamps in Shenzhen factory of China, produce high power street light, PAR light, Garden light...etc for outdoor and indoor application, with years experience for research and development, production, export.
