Home LED Light Products Hot Sales P8 Outdoor Full Color Rental LED Display

Hot Sales P8 Outdoor Full Color Rental LED Display

Hot Sales P8 Outdoor Full Color Rental LED Display
Price: US $ 700-750/Square Meter
Trade Terms: FOB,CIF,EXW
Min Order: 1/Square Meter
Pay Type: T/T,Paypal,Western Union

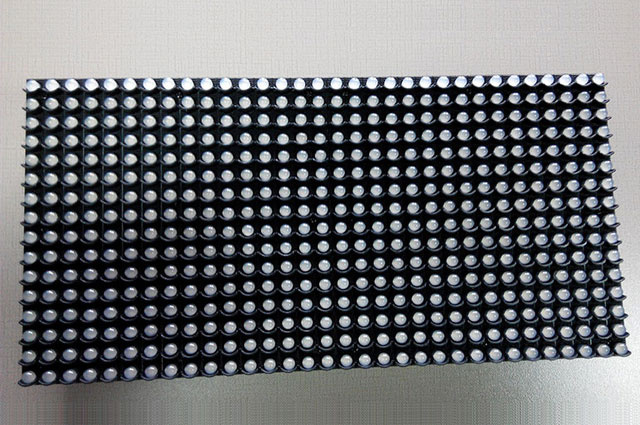

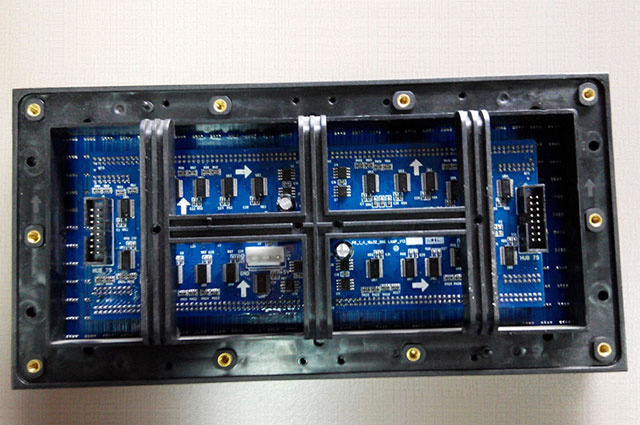

The Technical Parameters of  Outdoor p8 led screen Dip 3 in 1

ItemParameter
Product modelP8 Full Color Led Module
Module size256mm*128mm
Pixel pitch8mm
Pixel density15625dots/m2
Pixel configuration1R1G1B 3 in 1
Module resolution32dots(W)*16dots(H)
Maximum power consumption25W
Module thickness2.8cm
Module weight0.55kg
Driving methodConstant current driving
Scan mode1/4 scan
Interface typeHUB75B
Brightness≥7500cd/m2

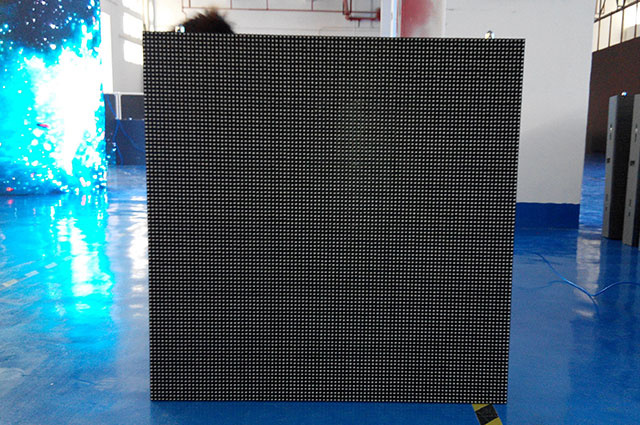

The specifications of cabinet
Cabinet size768mm x 768mm
Module quantity18pcs
Power supply5V/40A 5V/60A
Cabinet resolution96*96dots
Optimal viewing distance8m~50m
Optimal viewing angle160°(W) 120°(H)
TemperatureStorage:-35ºC~+85ºC
Working:-20ºC~+50ºC
System operating humility10%-95%
The specifications of power supply
Operating voltageAC220V±10%
Average power consumption300W/H
Maximum power consumption≤600W/
Current≤20mA(single LED)
The specifications of control system
ComputerPentium4 or above
Operating systemWIN98/2000/NT/XP
Control modelSynchronization with PC
The specifications of the main technical parameters
Driving deviceConstant current driving
Refresh rate≥600Hz
Grey scaleRGB each 256 grade, can display 16.7M colors)
MTBF≥9000hours
Power switchAutomatic Switch
Display mode800*600/1024*768/1280*900


Prod Model: P8 Outdoor Fullcolor Rental LED Display
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model No.: P8 Outdoor LED Display
Pixel Configuration: DIP 3 in 1
Module Size: 256X128mm
Cabinet Size: 768X768mm
Module Thickness: 2.8cm
System Operating Humility: 10%-95%
Maximum Power Consumption: ≤600W/M2
Export Markets: Global
Brightness: >7500CD/M2
Module Quantity: 18PCS
Tube Chip Color: Full Color
IP Rating: IP65
Pixel Configuration: 1R, 1G, 1B
Display Function: Video Display
Average Power Consumption: 300W / m²
Scanning Mode: 1/4 Scan
Display Type: LED Video Display
Application: Advertising
Certification: FCC
Pixel Pitch: 8mm
Pixel Density: 15625dots/M2
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
